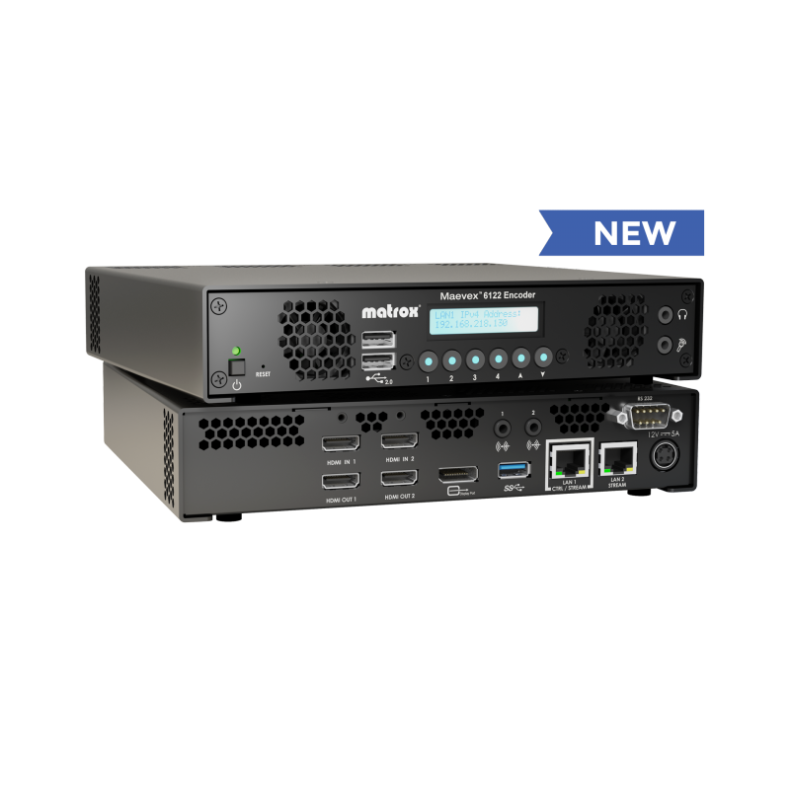

Matrox Maevex 6122 Dual 4K Encoder, Dual 4Kp60 Encoder, 2x HDMI, Passthru, HDCP, HDMI

Matrox Maevex 6122 Dual 4K Encoder, Dual 4Kp60 Encoder, 2x HDMI, Passthru, HDCP, HDMI

3.094,30 EUR 3.190,00 EUR

Matrox® Maevex 6122 is an HDMI® video encoder that delivers dual 4K capture, encode, stream, and record—with zero latency pass-through

Modell/Artikelnr.: CL-ZM-369115
Lagerstatus: Bitte erfragen Sie unsere Lieferzeit
Stück

 Matrox Maevex 6122 Dual 4K Encoder



Dual 4K encoding at ultra low latency

Matrox® Maevex 6122 is an HDMI® video encoder that delivers dual 4K capture, encode, stream, and record—with zero latency pass-through. The encoder supports multiple streaming protocols, including SRT and on-device HLS, for easy and secure streaming locally or across the world. Two Gigabit Ethernet ports allow for dual network streaming or separate networks for control data and video data. The complimentary Maevex SDK enables you to build new applications or integrate the functionalities of PowerStream Plus into existing applications.



Flexible 4K streaming and recording

Maevex 4K and zero latency passthrough

Dual 4K input with zero latency pass-through

Low latency

Low latency

Matrox Maevex streaming flexibility

Streaming flexibility

HDCP Compliant

HDCP 1.4 and 2.2 compliant

H.264 advanced video coding

H.264 advanced video coding

4:4:4 8-bit support

4:4:4 8-bit support

Rack mountable

Rack mountable



Matrox PowerStream Plus centralized management

Centralized management via PowerStream Plus or APIs

Low latency streaming. High quality experience.

Achieve zero-latency pass-through for real-time output of audio/video content on up to two 4K displays. This H.264 encoder integrates seamlessly into existing infrastructures and interoperates with virtually any network device, ensuring high-density content distribution and system scalability—all without sacrificing quality. Maevex also uses existing 1 Gigabit Ethernet infrastructure to allow many streams of any quality to be transmitted on a single cable, eliminating the need for a dedicated distribution network. The Maevex 6122 encoder can have latency as low as 16 ms.

Flexible protocols. Secure streaming.

Maevex flexible protocols

Enjoy multiple streaming protocols—HLS, MPEG2-TS, RTP, RTMP, RTSP, and SRT—for trouble-free streaming. Support for the Secure Reliable Transport (SRT) video transport protocol means that secure, low-latency, and high-performance streaming is also realized on noisy or unpredictable networks such as the public Internet. Whether you’re dealing with a stable LAN connection, a limited WAN pipeline, or an unpredictable Internet transport, Maevex has the right streaming protocol for the job.

Flawless image quality

Flawless image quality

Benefit from up to 4K/UHD 4:4:4 sub-sampling support for best-in-breed encoding. The multi-chroma sub-sampling feature delivers 4:4:4, 4:2:2, 4:2:0, and 4:0:0 options, to best balance bitrate and compression demands of different encoding content, environments, and markets. User-definable bitrates and quantization parameters, as well as various encoding modes to optimize for desktop, low-latency, or image quality.

Dual stream and record. Anywhere, at the same time.

Maevex 6122 delivers content to on-premises end points, over the LAN, WAN, and internet, feeds cloud-based servers, and records to local or network storage for later editing and viewing. The Maevex 6122 encoder can also transmit live and/or recorded content for multiple video-on-demand platforms —such as Facebook® Live, YouTube®, Twitch, Wowza®, Vimeo®, IBM® Video Streaming, and Restream, to name a few.

Matrox Maevex 6122 Dual 4K Encoder Appliance Workflow Configuration

High density. Rack mountable.

Matrox Maevex rack-mountable encoders and decoders

Support up to two appliances from a single U of rack space. The Maevex 6122 encoder is stand-alone appliance housed in a 1U ½ rack width. Place the appliance on the desktop, workstation, or rack, and it’s ready to use.

And its whisper-quiet operation means that Maevex is made for control rooms, operation centers, and other critical environments that require a noise level of 25 dB and less.



Control is just a touch away

Matrox Maevex 6122 decoder on-device buttons

An on-device LCD display shows device IP and stream addresses, system information, and much more, allowing for easy installation and troubleshooting issues directly on the device. Adding a separate monitor allows for previewing media and ensuring content appears exactly as intended before transmission. Six on-appliance buttons—to read and/or control the LCD display and start/stop streaming and recording functions—permit direct command execution in instances where software access is limited.

Always powered. Always on.

Maevex with NRG

Safeguard against a potential loss of power. Matrox makes available rack-mounted, multi-output redundant power supply units (RPSU) to ensure uninterrupted operation of your Matrox device in case of a power module failure and a redundant power input in case a circuit breaker trips.



Software

Complete reach and control

Matrox PowerStream Plus Software

Discover devices, manage content, and monitor all streams and recordings from any location on the network with PowerStream Plus software. Included with the purchase of Maevex hardware, PowerStream Plus makes it easy to manage and update both generations of Maevex products via a single application. PowerStream Plus can be installed on any network-connected computer.



SDK

Maevex Developer Tools

Easy APIs and SDKs for full customization

Easily build new applications or integrate the functionalities of PowerStream Plus into existing applications with the Matrox Maevex SDK. Further customize the appearance of your Matrox product—with new company naming, images, logos, colors, buttons, and identity—for greater ease of use and complete white label branding of Matrox hardware and software.



Technical specifications


Product
Part Number

MVX-E6122-2

Form Factor

Standalone appliance

Rack-mountable: 1U, 1/2 rack (horizontal)

Connectivity
Video Input

Number of channels:
2

Formats:
HDMI® (Type A) with audio support

Video Output

Number of channels:
2

Formats:
HDMI® (Type A) zero latency pass-through

Audio Input

- 2x HDMI digital LPCM two-channel stereo audio


- 2x 3.5 mm analog stereo audio

• 1 Vrms (0 dBV)
• 14.3 kΩ (gain = 0 dB)
• -60 dB to +6 dB (default is 0 dB)

- 1x 3.5 mm stereo mic in

• 2.5 V
• 1 Vrms (0 dBV)
• 15 kΩ (gain = 0 dB), 5 kΩ (gain≥ 10 dB)
• -74 dB to +41 dB (default is 0 dB)

Audio Output

- 2x HDMI digital LPCM two-channel stereo audio
- 1x 3.5 mm headphones out

• 1.2 Vrms (1.6 dBV)
• 32 mW into 32Ω
• -74 dB to 0 dB (default is 0 dB)

Network Connector

2x RJ45 with status LED indicators
(1x control and stream, and 1x stream only)

USB Ports

2x USB 2.0 (front)

1x USB 3.0 (back)

RS-232

1x for IP to RS-232 control

Confidence Preview

1x DisplayPort 1.1

Maximum resolution: 1920x1080

Multi-Unit Support

Yes

Performance
Color Space and Chroma Sub-Sampling

RGB and YUV 8- and 10-bit support
Color space conversion support

4:0:0 (8-bit and 10-bit*)
4:2:0 (8-bit and 10-bit*)
4:2:2 (8-bit)
4:4:4 (8-bit)

*1080p60 max

Video Input Resolutions

2x 3840x2160 @60Hz or 2x 4096x2160 @60Hz

Video and Audio Processing
Video Scaling

Yes

Video Compositing

Yes, fixed formats including Picture-in-Picture (PiP), Picture-by-Picture (PbP), quadrant

Audio Encoding Format

MPEG-4 AAC-LC/HEv1/HEv2

Audio Sampling Frequency

32 kHz

44.1 kHz

48 kHz

Audio Bitrates

Up to 144 Kbps (AAC-HEv2)
Up to 288 Kbps (AAC-HEv1)
Up to 576 Kbps (AAC-LC)

Codec
Video Encoding Formats

H.264/MPEG-4 Part 10 (AVC)

Encoding Profiles

Baseline (BP)

Main (MP)

High (HiP)

High 10 (Hi10P)

High 4:2:2 (Hi422P)

CAVLC 4:4:4 intra (44)

High 4:4:4 predictive profile separate plane (Hi444PP)

Encoder Bitrates Range

15 Mbps (default)

50 Kbps to 120 Mbps (Maximum operational bitrate per stream is dependent on number of streams and features enabled.)

Encoding Rate Control

Adjustable GOP size
Constant Bitrate (CBR)
Favor quality and optimize for desktop or latency
Variable Bitrate (VBR)

Encoding Level

Up to 5.2

Encoding
Encoding Capability

4:2:0*
2x 3840x2160 @60Hz
1x 4096x2160 @60Hz
4x 3840x2160 @30Hz
3x 4096x2160 @30Hz
2x 1920x1080 @30Hz
4x 1920x1080 @60Hz
8x 1920x1080 @60Hz
16x 1920x1080 @30Hz

4:4:4*
1x 3840x2160 @30Hz
1x 4096x2160 @30Hz
2x 1920x1080 @60Hz
3x 1920x1080 @60Hz
6x 1920x1080 @30Hz

*Each encoding capability is independent of the others listed, and excludes any additional processing such as compositing, scaling, etc. Content can affect results. For more details and encoding capability support, contact Matrox.

Network
Network Standard

100/1,000 base-T Ethernet

Auto speed

Half/full duplex

Routing Scheme

Unicast

Multicast

Multi-unicast

IP Addressing

IPv4

IPv6

DHCP (default) and static IP

Streaming Protocols

HLS
MPEG2.TS over UDP
RTMP
RTP/RTCP (both required) over UDP
RTSP (TCP), RTCP & RTP (UDP) - all required
RTSP over TCP (interleaved)
SRT

Command and Control

HTTPS over TCP

UPnP (discovery)

Recording
File Format

MP4

MOV

fMP4

Filename

Customizable prefix (optional)

Timestamp

Automatic in filename

Programmability

Duration

File frequency

Maximum file length

Start date and time

Recording Locations

Local USB ports for USB flash drive and external hard drive

  • 2x USB 2.0 (front) and 1x USB 3.0 (back)

Shared network drive or NAS

Physical
Product Dimensions

8.53 (L) x 7.52 (W) x 1.68 (H) inches
21.7 (L) x 19.1 (W) x 4.3 (H) cm

Noise Emission

~25 dB at full stream/record capacity

Hardware & Software
Hardware Included

Maevex 6122 Dual 4K Encoder Appliance

Power Supply

  • 100-240 VAC in, 12 VDC out, 60W

  • DIN4 locking power connector

Power Cords Included (US, EU, UK, Aus/NZ)

Accessories (sold separately)

Rack Mount Kit (part number: RMK-19TR-A)
      • Rack mounting shelf (19 in / 48.26 cm)
      • Pan head Phillips screws (4x 10-32 x 3/4 in)
      • Pan head Phillips screws (4x 12-24 x 3/4 in)
      • Flat head Phillips screws (6x M3 x 6 mm)

NRG Redundant Power Supply Unit

     • Rack tray with one NRG RPSU pre-installed (part number: NRG-5-1DB)
     • Rack tray with two NRG RPSU pre-installed (part number: NRG-5-2DB)

Secure cable solution for HDMI (part number: SK-SLND-4)

Software

PowerStream Plus (free download)*
Compatible with Maevex 5100 Series and Maevex 6100 Series
Network discovery
Multi-encoding and recording management
Multi-protocol management
Frame rate management
Resolution control
Administrator and user credential management
Scaling management
SNMP support

Maevex 6100 Series RS-232 API (free download)*
Control Maevex 6100 appliances via Crestron™, Kramer™, Extron™, or other tabletop touch-screen controllers.
Access basic commands including list, start/stop streaming and recording, and device reboot.

Maevex SDK for Windows and Linux*
Full-access to entire feature set via SDK
.NET 4.5.1 or higher, standalone library and Mono 5.2 or higher for Linux

Maevex REST API*
Maevex 6100 Series REST API
Available for lower-level development


*Contact Matrox for more details.

Environmental
Operating Conditions

Temperature: 0 to 45 degrees Celsius

Altitude: 650 hPa (3,580 m) to 1,013 hPa (0 m)

Humidity: 20% to 80% non-condensing

Storage Conditions

Temperature: -40 to 70 degrees Celsius

Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m)

Humidity: 10% to 90% non-condensing

Power Consumption

45W

General
Supported Operating Systems (software)

Microsoft® Windows® 10 (64-bit)
Windows Server® 2016
Windows 7 (32-bit, 64-bit)
Windows Server 2008 R2
Windows Server 2019

EMC/EMI Device Class

Class A

EMC/EMI Certifications

CE (EU)

FCC (US)

ICES-3 (Canada)

KC (Korea)

RCM (Aus/NZ)

VCCI (Japan)

Environmental Certifications

China RoHS

EU RoHS

REACH

WEEE

Warranty

Two-year limited warranty with free online or telephone support
