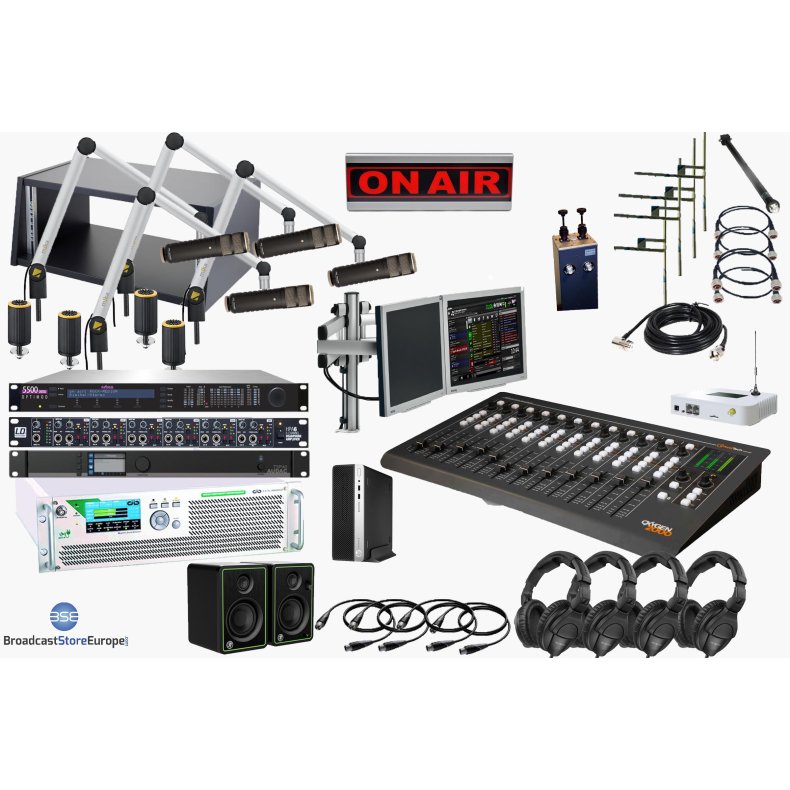

BSE-CRS6 ON AIR STUDIO (please be aware, that the picture not necessarily shows the correct images - please take as example)
Content of the complete On Air Studio and Transmission Site:
| Line | Item # | Description | Qty |
| 1 | AX-OXYGEN 2000-5M-BT | Axel Oxygen 2000-BT Digital broadcast console 12 Faders; 5 Mic IN with +48v; 3 bal. stereo IN; 2 USB Audio I/O; 1 Bluetooth I/O; 1 Telco, 4 bal stereo | 1 |
| 2 | AX-OXY TALK-BOX | Axel Oxygen 3000D Talk Box | 1 |
| 3 | AX-OXY ADPT-SET-8-1,5m | Axel Oxygen 1000/2000/3000P Adapter Set; 8 adapters 1,5m: 2xRJ45-MIC; 3xRJ45-LINE IN; 1xRJ45-TELCO; 2xRJ45-LINE OUT. 1,5m. | 1 |
| 4 | EC-GSM-FWT-8828 | Eurocaster GSM Fixed wireless terminal ETS 8828 with LCD display, 1 Sim card, 1 POTS channel in/out. | 1 |
| 5 | MO-174490 | IMG 102DAB FM - Digital Stereo Tuner FM/DAB+ 1U rack | 1 |
| 6 | JA-soho | Jazler SOHO Radio Automation Software 2 screen support, multiple layout, log creator, stream encode | 1 |
| 7 | AX-MRLIGHT RGB | Axel Mr Light RGB On-Air (Led) lamp, multi-coloured RGB leds. Operating mode: blink, pulse. Mounting kit. GPIs for remote control, 12v PSU incl. |
1 |
| 8 | RO-PROCASTER | Røde Procaster Broadcast Dynamic Microphone | 4 |
| 9 | AH-K3MMF0300 | AH Cables K3 MMF 0300 - 3 star - Microphone Cable XLR female to XLR male 3 meter | 4 |
| 10 | YT3205-XLR | Yellowtec YT3205 m!ka ON AIR Microphone Arm M aluminium, max range 78,7cm including mounting XLR3pin/XLR5pin | 4 |
| 11 | YT3215 | Yellowtec YT3215 Table Through Mount Arm Support | 4 |
| 12 | YT3412 | Yellowtec YT3412 m!ka Set 3: Dual Monitor Set Aluminium, 1x YT3243, 2x YT3230, 1x YT3245 | 1 |
| 13 | AH-LDHPA6 | LD Systems HPA6-19" 6 channel Headphone Amplifier | 1 |
| 14 | SN-506845 | Sennheiser HD 280 Pro closed dynamic studio headphones, 64 Ω, 8 - 25000 Hz, 113 dB max. | 4 |
| 15 | CL-ZM-18020302 | Mackie CR5-XBT Active Multimedia Monitor SET, Bluetooth 5 inch, 80w, Bluetooth | 1 |
| 16 | CS-7790509 | Lenovo IdeaCentre Gaming5 14ACN6 90RW - Tower - Ryzen 5 5600G / 3.9 GHz - RAM 16 GB - SSD 512 GB - NVMe - GF RTX 3060 - GigE - WLAN: Bluetooth 5.0-Eng or similar | 1 |
| 17 | AO-DELL-P2222H | DELL Monitor - P2222H - 21.5inch 1920x1080 16:9 IPS Antiglare 250cd/m2 60Hz 5ms VGA HDMI DP or similar | 2 |
| 18 | TH-338113 | Studio Desktop Rack 8U, black, angled | 1 |
| 19 | DD-XLR-1200 | Deltaco XLR-1200 audio cable 20m, XLR male/XLR female-black | 2 |
| 20 | SC-CLV156-1 | ProCab 50 Ohm - 1 meter BNC/BNC male cable -udgående | 1 |
| 21 | DD-USB-218FS | USB 2.0 cable, USB-A male - USB-B male, 2m, ferrit, black, DELTACO | 2 |
| 22 | SC-CLA701-1,5 | ProCab 2 x XLR male>2 x RCA-1,5m | 1 |
| 23 | SC-REF800-3 | ProCab cable 2xRCA ->2xRCA-3m | 1 |
| 24 | DB-Mozart-Next-2000/S | DB Mozart Next 2000 FM Stereo Transmitter 2kW Compact, /WB-SNMP-2C & control board. 3 RU, 7/8" Conn. | 1 |
| 25 | OR-OPTIMOD-TRIO | Orban Optimod TRIO FM/AM/DAB+ Digital Audio Processor, 5-band, RDS/RBDS, incl. AoIP Dante or Ravenna option | 1 |
| 26 | LI-DA6M2 | EuroCaster Antenna System, 2 kW,9,5 dB, 6 x AKF/1N alu dipoles, Aluminium, 7/16" incl. splitter and 6 x 8,5m jumper cables, 1 SAGA/2 powersplit. clamp | 1 |
| 27 | LI-FDB/1002-M | EuroCaster FDB/1002-M FM Double Coaxial Cavity Filter 2kW, conn. 7/16 | 1 |
| 28 | LI-CRC12781.5I | Cellflex Feeder Cable 1/2 Con."7/8" +INN, 1,5 meters | 1 |
| 29 | LI-GK78 | Grounding kit 7/8" for cable | 2 |
| 30 | LI-HG78 | Hoisting Grip for cable 7/8" | 2 |
| 31 | LI-AVT-19 | LI-self amalgamating vulcanizing Tape 10m | 2 |
| 32 | LI-CRC7871680 | Cellflex Feeder Cable 7/8 inch with 7/16 conn, 80 meters | 1 |
| Line | Item # | Description | Qty |
| Titel | Sorte | Größe | Herunterladen |
|---|---|---|---|
| Axel-Smart-Brochure-Oxygen-2000-5MIC-2.pdf | 1.86MB | Herunterladen |
