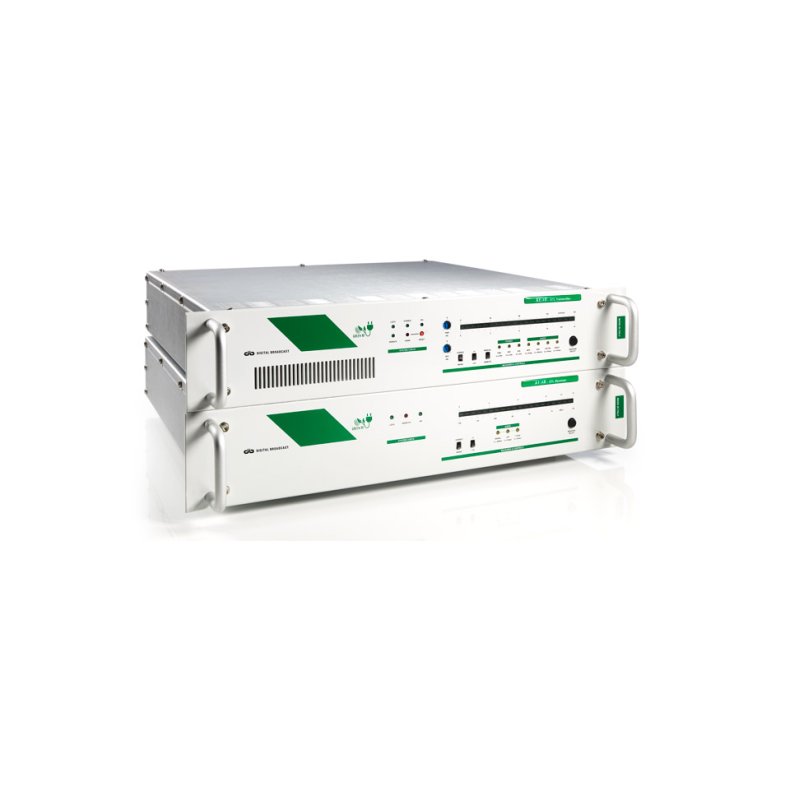

DB KE/G Synth. Radio Link Transmitter 830-1020 MHz

1.611,00 EUR ~~1.790,00 EUR~~

Modell/Artikelnr.: DB-KE/G

Lagerstatus: Bitte erfragen Sie unsere Lieferzeit

Stück

Radio Link transmitter mono / MPX - 0-8 watt.

STL transmitter for mono or composite operations. Compatible with digital audio.
Operating frequency: 830÷1020 MHz. Agile frequency programmability.
Output power 8 W, adjustable. SCA/RDS inputs. Up 86 dB typical S/N ratio.

The main characteristics of this unit are:
Excellent stereo separation. A built-in group delay and amplitude precorrector guarantees a very low phase distortion and a great stereo separation in the whole 15 kHz band.
High frequency stability with the internal temperature compensated crystal reference.
Full metering: complete diagnostic and measurement front panel displays are available.

Available Options:
Remote control
Vdc power supply.

The transmitted and received frequency can be easily set by
the internal dip - switches or by the front panel numerical
selector (/C option).
Excellent stereo separation. A built-in group delay and
amplitude precorrector guarantees a very low phase
distortion and a great stereo separation in the whole 15
kHz band.

Suitable for digital audio. The subsonic overmodulation
and the low frequency phase distortion are controlled by a
feedback circuit in order to exalt the audio quality of the
latest digital systems.
Low THD distortion: the THD value with stereo or mono
demodulated and deemphasized signals is negligible.
Flat frequency response: due to the latest generation
technology and the components precision the flatness of
frequency response is absolute.
Low noise: the excellent signal to noise ratio either in mono
or in stereo allows the use of this STLs in multi hops
networks without decreasing the audio quality.
High sensitivity: it allows to reduce the STL's antennas
investment.
Great RF immunity: allows to operate in most hostile RF
environments.
High adjacent channel rejection: obtained thanks to the
excellent mechanical shielding and the precision of RF
filtering.
High frequency stability with the internal temperature
compensated crystal reference.
Full metering: complete diagnostic and measurement front
panel displays are available.
Battery operations. VDC option is available for battery or
solar panels operations.
Meets or exceeds all FCC and CCIR requirements.

Titel	Sorte	Größe	Herunterladen
KEKVser.pdf	PDF	334.61KB	Herunterladen
