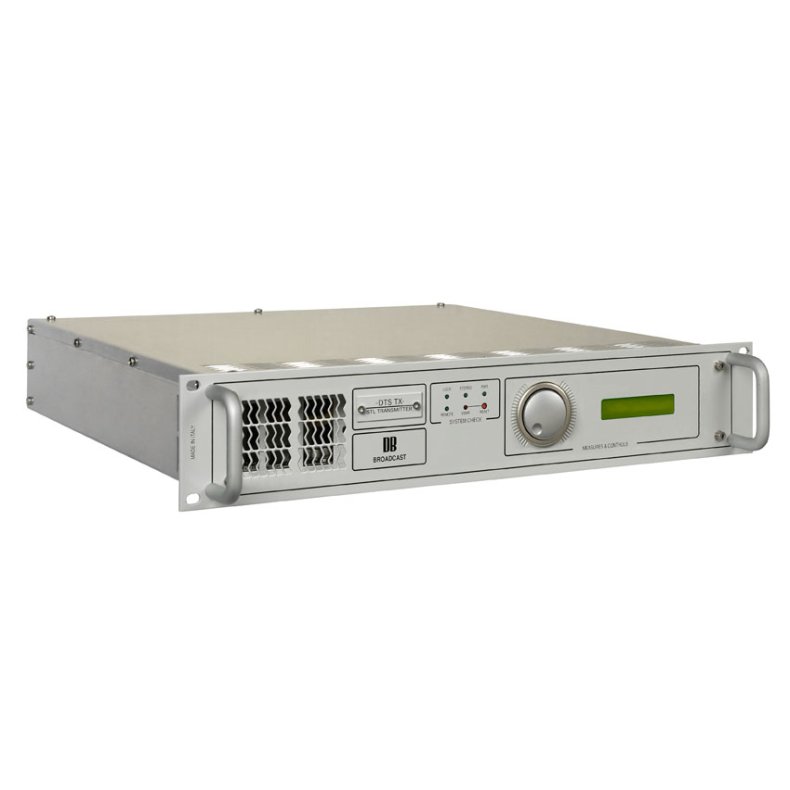

DB DTS25/2G Link Transmitter 1,1-2,7 GHz 25 watt

High performances frequency agile radio link transmitter 25 W max output power in the 1.1-2.7 GHz range. Complete LCD display control system to set or monitor all the main parameters (power level, deviation, frequency, ect . ). Ultimate modulation quality with ultra low noise oscillators. Full remote control capability available as option.

It is composed of:
DTS/2G
KN25/2G

The main characteristics of this unit are:
Easy front panel frequency setting.
Excellent stereo separation. A built-in group delay and amplitude precorrector guarantees a very low phase distortion and a great stereo separation in the whole 15 kHz band.
Suitable for digital audio. The subsonic overmodulation and the low frequency phase distortion are controlled by a feedback circuit in order to exalt the audio quality of the latest digital systems.
High frequency stability with the internal temperature compensated crystal reference.
Full metering: complete diagnostic and measurement of all the main parameters is available using front panel LCD display. Full remote control is available as option.

Frequency range 1.1-2.7 GHz
Power output (continuosly variable form 0) 25 Watt
Input Impedance 50 Ohms
Output Connector N/female
Modulation FM, 75kHz peak deviation, 180k F3E mono, 256k F3E stereo
Spurious and harmonic Below FCC anc CCIR requirements
Stereo separation >55 dB or better from 30 Hz to 15 kHz
Pre-emphasis 50, 75 us selectable
Capability 1 mono/stereo program, up to 3 SCA (optional)
Metering output forward and reflected power, peak modulation, diagnostic functions
Mono/Stereo input connector XLR
MPX input connector BNC

AC Input voltage 120 or 220/240 VAC, 50/60 Hz

Operating temperature -10°C ÷ +45°C
Max humidity 95% not condensing

Dimensions Depth 483 mm (19") x 2U (standard rack unit)
