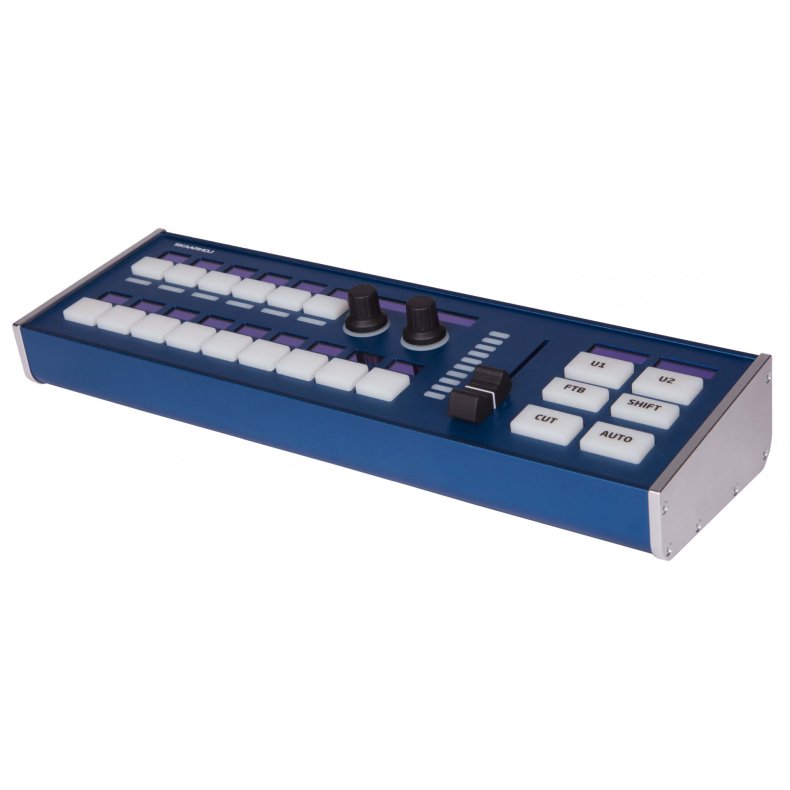

Skaarhoj Live Fly w/Blue Pill Inside

Skaarhoj Live Fly w/Blue Pill Inside

Live Fly leaves no room for regret.

This professional midsize controller is supercharged with flexible interface technologies so you can repurpose, extend, integrate and configure it over and over again.

This product comes with Blue Pill Inside. Blue Pill Inside means that the hardware of a Blue Pill is moved into your controller instead of combining a stand-alone Blue Pill with a UniSketch panel. The net result is the same, but with some twists: The advantage of Blue Pill Inside is that at the same cost you have everything in one unit - but you can’t enjoy the features from UniSketch anymore.

RGB LED'S

RGB multi-level metering LEDs for VU, tally or step indication

Precision Encoders

Precision encoders for adjusting settings or selecting graphics

Transition fader

Transition fader with RGB LED bar for transition position or VU metering

Bus row's

Versatile bus delegation row with display labels

Programmable bottom

Programmable four-way buttons for superior flexibility

ME Section

ME section with multi-level shift and user keys

Form Factor

Slim, ergonomic console form factor

PoE

Ethernet with PoE+ (IEEE802.3at)

NKK

Add best-in-class NKK buttons with sculptured caps to the lower bus row and ME section for old-school luxury

Dimensions

Live Fly

Length: 278 mm   Width: 94 mm

Height: 55 mm     Total weights: 0.592 kg.

Live Fly w/NKK buttons

Length: 278 mm   Width: 94 mm

Height: 55 mm     Total weights: 0.634 kg

Power Consumption

Live Fly

4.32 Watt

Devices the product connects with

Notably, but not limited to:

vMix

Tricaster

ATEM

Vectar

What´s in the box

12V Power Supply

Manufacturer: PHIHONG

Model Name: PSA15R-120P

Output: 12V/1.25A

Cable Length: 1.5m

Adapter type: EU, GB, US, AU depending on shipping conutry

DC Output Connector: 5.5mm x 2.1mm x 10mm Center Positive

Recommended cables (not in the box)

We will recommend using LAN Cat 6 S/FTP or better and a USB 2.0 A-Micro B (if needed).

Manuals, Training Videos & Manufactures Support !

https://www.skaarhoj.com/support/manuals/
