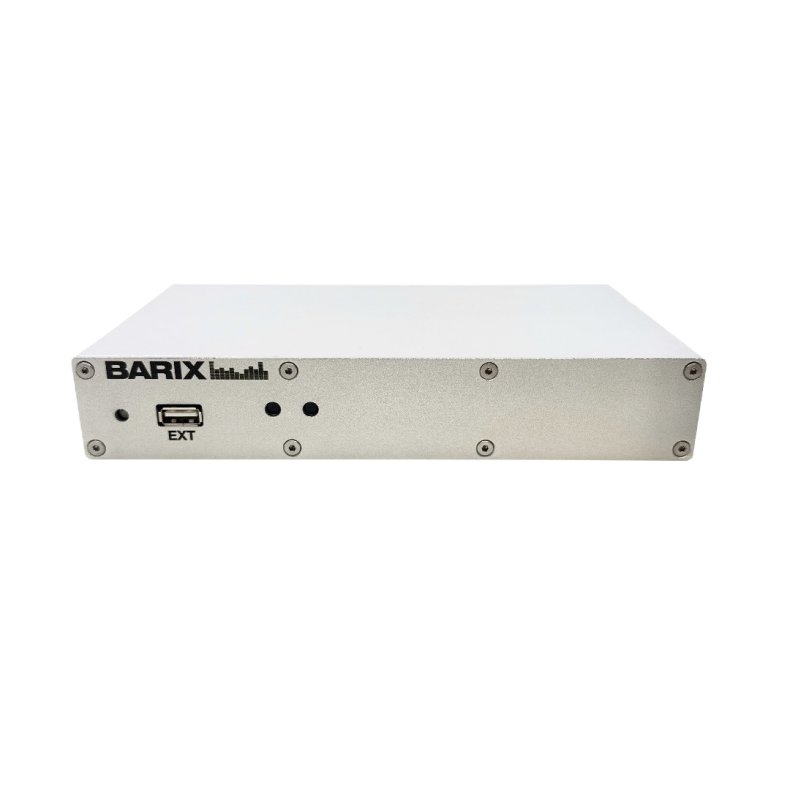

Barix LX400 STL Package, Codec for Studio Transmitter Links, OPUS, AACplus and PCM uncompressed, RTP, AES3, 24VDC + PoE.
Codec for Studio Transmitter Links (STL).
LX400 STL is the latest Barix Broadcast Codec with advanced features for cost effective, quality audio delivery. Key features include support for OPUS, AACplus and PCM uncompressed transmission, absolute end-to-end delay control (RTP), latest security (HTTPS) and stream redundancy modes for uninterrupted broadcasting. Additionally, it offers 8 I/O contacts and AES3 compatibility on Studiohub output only. Power redundancy via 24 VDC and PoE is supported
Power supply
- 802.3af PoE on RJ-45 connector
- 24 VDC nominal, 12 Watt max.on terminal block
Ethernet
- 10/100Mbps auto rate, full/half duplex
- RJ-45 connector with integrated Link/Activity
- 802.3af PoE support
- Second 10/100 Ethernet port for future software support
Digital Audio Interface
- AES3 on Studiohub (output only)
External
- USB connector type A female.
| Titel | Sorte | Größe | Herunterladen |
|---|---|---|---|
| Barix-LX400STL_ProductSheet.pdf | 998.23KB | Herunterladen |
