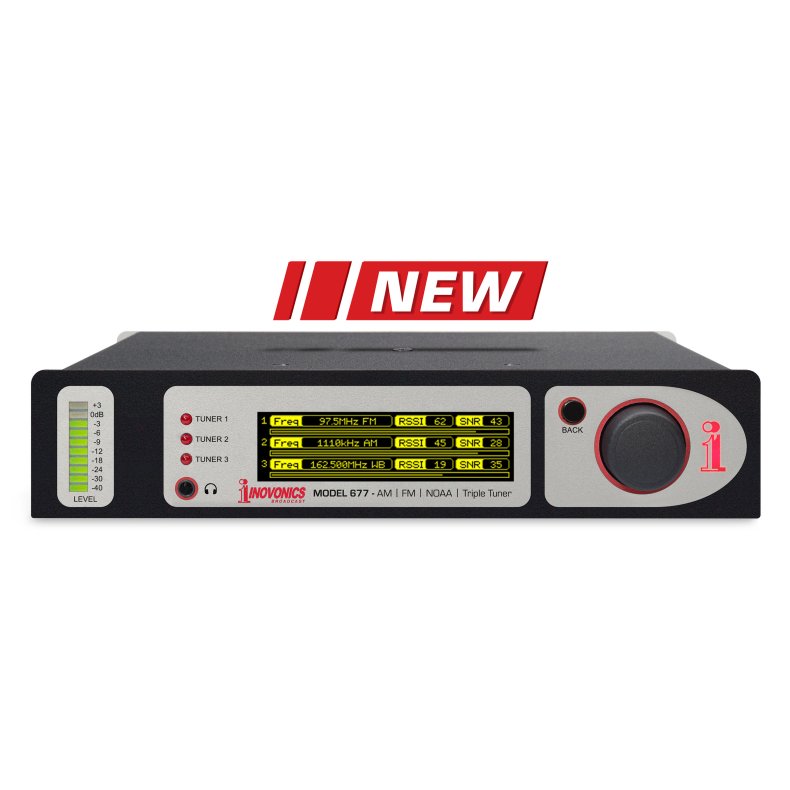

The 677 Triple Tuner is an EAS Monitor Receiver in a compact half-rack package. It has three built-in discrete frequency agile receivers, each one programmable for either AM, FM or NOAA reception. Each receiver has a balanced monaural XLR audio output to serve as EAS monitor, or off-air monitor throughout the broadcast facility.
The 677 has an easy front panel set-up with jog-wheel menu navigation and front panel readout. On the back panel, six rear-panel GPOs may be user-assigned to alarm functions.
The dynamic Web interface provides control & monitoring remotely via any Web enabled device. In addition, remote listening by Web stream along with alarms/notification via email and SMS messages. SNMP is fully supported.
Features
-
Three unique receivers for selectable AM, FM, NOAA reception
-
Balanced monaural XLR outputs for each receiver
-
Easy front panel set-up via jog wheel with LED readout and metering
-
Alerts sent to personnel via email and/or text messages
-
Full-function remote Web Interface works on desktop and mobile devices
-
Remote listening stream selectable for each receiver
Specifications
Three AM/FM/WB(NOAA) tuners:
Discrete frequency agile receivers, each one programable for either AM, FM or NOAA reception.
- AM: 520-1710kHz
- FM: 64.0-108.0MHz
-
WB: 162.400/162.425/162.450/162.475/162.500/162.525/162.550MHz
- Adjust IF and audio bandwidth for each mode
- Adjustable AM and FM de-emphasis
- Adjustable mono balanced analog output for each tuner (-15 to +15dBu)
Alarms:
-
Independently configurable alarms for each tuner
- Audio Loss
- Low Signal
- RDS PI Error
- Alert Tone
- Viewable and downloadable alarm logs
- Alarms can be emailed to specific recipients
- Alarms can send SNMP traps to 3 destinations
Additional Features:
- Up to 6 hours of real-time history for RSSI and audio levels for each tuner
- Built-in web server for monitoring and control
- Audio can be streamed from one of the tuners (selectable)
- Full SNMP support for monitoring and control
- Six configurable GPO
- Front panel headphone jack and audio meter can be set to listen to any one of the three tuners
