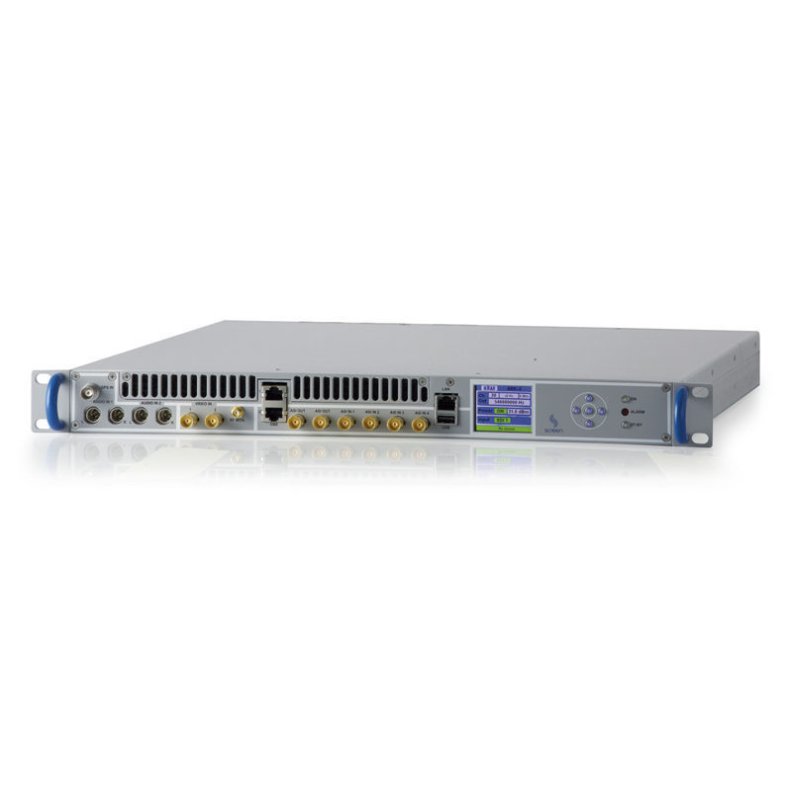

Screen ARK-X 050/U

The New ARK-X Universal Driver can be configured with just software selection and implements DVB-T/T2, ATSC, ISDB-T, DTMB, ATV modulations.

It can be used as a Transmitter, Gap Filler, Heterodyne Transposer, Regenerative Transmitter, Dual Cast Analog + Digital Multistandard

ARK-X UNIVERSAL DRIVER allows the selection of operation modes and total remote control:

• remotely, using a dry contact;

• via TCP/IP, using a LAN connection, web graphic interface, and a standard web browser

• via built-in SNMP;

• via a dedicated command inserted into the transport stream.

The New ARK-X Universal Driver optimizes the investments of both international broadcasters, reducing the transmitter types, and national broadcasters, thanks to its versatility in operation modes and configuration.

The New ARK-X Universal Driver is future-proof and guarantees a perfect upgrade path for new modulation schemes that will be delivered.

The previous series ARK-6 can be upgraded to the new features.

New improved features compared to the previous series:

• Color large-sized display with important monitoring measures: spectrum, constellation, etc
• Upgrade through USB Ÿ and OTA
• Licensing upgrade
• T2 + T2 lite simultaneous mode
• ISDB-Tb De-Compressor Embedded
• Property Crest Factor optimization algorithm (PAPR equivalent)
• Powerful pre-corrections to improve efficiency
• GPS Glonass, Galileo, BeiDou integrated
• 2 input IP redundant with seamless switch (GBE Gigabit Ethernet)
• Pluggable Front End
• New user-friendly web interface
• Backward full compatibility with all ARK 6 based TX
• Energy-saving system (automatic power reduction scheduler)
• Anti-thief system
• ATSC 3.0 ready

Main common features

• ASI MPEG Transport Stream seamless input
• MPEG Transport Stream over IP TS 102 034 V1.5.2 (2014-04).
• MPEG Transport Stream encapsulated in RTP (Real-time Transport Protocol according to RFC 3550 TS 102 034, clause 7.1.1. FEC management SMPTE 2022-1 (Pro MPEG CoP 3).
• IGMPv2/v3 support.
• MFN and SFN operations.
• Internal GPS / Glonass receiver.
• Internal clock: Oven Controlled OCXO oscillator (10 MHz and 1 PPS).
• Output clock: 1 PPS and 10 MHz.
• Bit rate adaptation plus PCR re-stamping.
• RF main and monitoring outputs (Spectrum, MER, Constellation).
• Test Modes:
• – CW insertion
• – Null packet insertion
• Linear and non-linear Adaptive digital pre-correction circuits, when operated as a transmitter.
• Linear and non-linear digital pre-correction circuits, when operated as a repeater.
• Embedded HTTP server
• Management: Embedded SNMP v3 server – Embedded Web server.
• GbE Ports: GbE 1: 10/100/1000 Base T Management port.
• Redundancy: Input autoswitch algorithm supported.
• Security: Authentication for GUI access supported.

Main features DVB-T/T2 version

• Signal modulation compliant with:
• – ETSI EN 300 744 v16.1
• – ETSI EN-302 755 (DVB-T2) standard 1.4.1
• – ETSI TS 101 191 v1.4.1 (SFN)
• T2-MI compliant with ETSI EN-102 773 V1.4.1 (T2-MI) standard
• T2-MI input over IP or ASI
• ETR290 and T2-MI alarms
• Full Single-PLP compatibility (including MISO and PAPR reduction)
• Can transmit MPLP, Up to 16 PLP
• Bit rate adaptation plus PCR restamping in S-PLP
• Modulated DVB-T2 RF signal input (VHF/UHF) – when operating as repeater.

Main features ISDB-TB version

• Signal modulation compliant with:
• ABNT NBR 15601 & ABNT NBR 15608-1 (ISDB-Tb)
• BTS Input over ASI and over IP
• Modulated ISDB-Tb RF signal Input in rebroadcasting mode
• Emergency flag management (detection and insertion)
• Test Modes:
• – CW insertion
• – Null packet insertion, separated for each Layer
• Remux capabilities (optional):
• – BTS generation from input TS/BTS
• – Up to 2 input sources to build each Transmission Layer
• – PID filtering and remapping
• – Internal Carousel Editing, Store and Playing
• – IIP (including SFN information) insertion
• – BTS Compressor /De-Compressor Embedded

Main features ATSC version

• Compliant to ATSC A/53 and A/65 standard
• Compliant to A/153 ATSC-MH standard
• SMPTE310, RF, SSI Input:
• – Support 4 ASI input
• – Support 4 SSI input
• – Support 2 ASI output
• – Support 2 MPEG over IP input/output channels on GBE port 2-3
• Enable/Disable of cable equalizer bypass on input ASI ports
• One RF input to operate in rebroadcasting mode.
• Support the Editing of Virtual Channel Table in Translator mode
• Supports a measure board for the monitoring of the modulated signal: SNR, BER, SER e LOCK
• Amber switching implemented as a search for valid input when the priority one is not locked.
• Test modes: CW, Force Null Packets and PRBS
• Redundancy: Input auto-switch algorithm supported
• Option A/110b compliant for SFN transmission
• Option: A/110b compliant for STL with ATSC-MH transmission

I/O specifications:

RF Front-End input

Please refer to various configurations for a complete description of all the available front-end modules

GPS RF Input

N° Inputs: 1

Sensitivity: -165dBm

Connectors: TNC/SMA

RF Output Monitor

N° Inputs: 1

Level: -40dB

Connectors: SMA

Gigabit Ethernet

N° Connectors: 3

Connector: RJ45

Supported standards: IEEE 802.3

ASI Output Monitor

Connectors used for monitoring purposes:

N° outputs: 2

Connector type: BNC

Input impedance: 75 ohm

Input voltage: 800 mVpp (500 to 1200mVpp)

Supported standards: CEI EN 50083-9

ASI/BTS/SSI/SDI Input

Connectors used as ASI, SMPTE-310 or SDI:

N° Inputs: 4

Connector type: BNC

Input impedance: 75 ohm

Input voltage: 800 mVpp (500 to 1200mVpp)

Supported standards:

CEI EN 50083-9

SMPTE 310

SMPTE 259M

Opto TLC - DB15

N° Inputs: 4

Connectors: SUB-D 15p Female

Max current: -5 mA

Relays TLS - DB25

N° Outputs: 4

Connectors: SUB-D 25p Female

Max voltage: 125VAC / 60VDC @ 0,3A – 30VDC @ 1A

DB9 – RS232

N° inputs: 1

Connectors: SUB-D 9p Female

Speed: up to 230400 bps

8-bit data

No parity bits

1 stop bit

DB9 – RS485 CAM BUS

N° inputs: 1

Connectors: SUB-D 9p Female

10 MHz Input

N° Inputs: 1

Connector: BNC

Input impedance: 50 ohm

Input voltage: 2 Vpp

1PPS Input

N° Inputs: 1

Connector: BNC

Input impedance: 50 ohm

Input voltage: TTL (min 1,7V)

Pulse width: 100us

10 MHz Output

N° Outputs: 1

Connector: SMB

Output impedance: 50 ohm

Output voltage: TTL (min 2,4V)

Output voltage: 2 Vpp

1PPS Output

N° Outputs: 1

Connector: SMB

Z load: 50 ohm

Output voltage: TTL (min 2,4V)

Pulse width: 100us

RF Measure board inputs Linear /Non linear precorrections

N° Inputs: 2

Connector type: SMA

Input impedance: 50 ohm

Input level: -40 dBm up to -8.5 dBm

Supported standards:

DVB-T/T2

ISDB-T

ATSC

RF Output

N° Outputs: 1

Connector: N

Selection table:

Model: ARK-X 050/U

Output Band: UHF

Working Class: A

Dimensions: 1 RU

Output Connector: N

Cooling: Air

DVB W rms: 5

ISDB-T W rms: 5

DTMB W rms: 5

ATSC W rms: 6

ATV ps: 10

MER dB: > 40

Shoulders (@ FO ± 3.5 MHz ATSC) or (@ FO ± 4.3 MHz DVB) or (@ FO ± 3.3 MHz ISDB-T): -39
