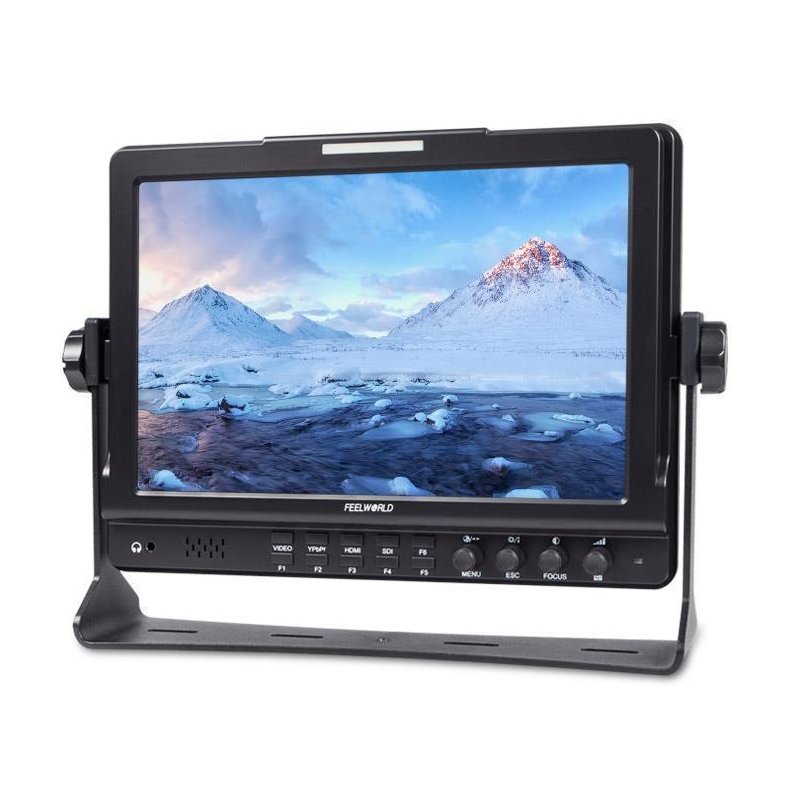

Feelworld 10.1" IPS 1920x1200 HDMI Camera-Top Monitor with Peaking Focus FW1018V1

Model：FW1018V1

Introduction

Screen Size：  10.1" IPS
Resolution：   1920x1200 pixels
Aspect ratio： 16:10
Brightness：   320cd/m²

Input

HDMI, Ypbpr, Video, Audio(L/R)

Output

HDMI, Ypbpr, Video, Stereo Headphone, Speaker(bulit-in)

The FEELWORLD FW1018V1 10.1”IPS HD LCD On-Camera monitor is one of the best monitors of its kind. Thanks to FEELWORLD's good price-quality ratio, many professional photographers and videographers choose for FEELWORLD. The monitor also features image measurement functions like Focus Assist, Center Marker, Safe Frame, Check Field, Camera Mode, Aspect Ratio, Image Flip, Pixel-to-Pixel and Image Freeze you will be able to analyze the image. These functions are assignable across six function buttons on the front panel.

The large size 10.1 inch enables you to focus clearly on your shots and eliminate the guesswork from framing. It blows up your tiny built-in camera screen to a much larger display that enables easier viewing and won't strain your eyes. With brightness levels of 320cd/m², a 800:1 contrast ratio and 170° vertical and horizontal viewing angles this monitor is a useful tool when shooting video or stills, providing you with a larger image than your camera's built-in viewfinder or LCD screen. FW1018V1 provides maximum versatility with multiple inputs: HDMI, Ypbpr, Video, Audio(L/R) and HDMI, Ypbpr, Video loop-through output, you can connect it directly to any DSLR or HD video.

• 1920X1200 IPS FHD Panel
  Enjoy Consistent Images from Any Perspective. FW1018V1 uses an IPS panel, which provides a wide 170°/170° viewing angle and brightness output, up to 320cd/m². This means you'll be able to see accurate, consistent and bright images from any viewing point.

• Multiple Inputs and Outputs
  HDMI / YPbPr / Video / Audio
  Input:
  HDMI X 1
  Y X 1
  Pb X 1
  Pr X 1
  Video X 1
  Auido (L/R) X 2

  Output:
  HDMI X 1
  Y X 1
  Pb X 1
  Pr X 1
  Video X 1

  Audio:
  Stereo Headphone
  Internal Speaker

• Professional Peaking Focus Assist
  The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.

• 3-color Tally Light
  DB-9 input signal
  There is front TALLY lights with 3 colors display, and controlled via DB-9 ports on the rear panel.

• Flexible Battery Systerm
  The monitor is powered from 4-pin XLR connector, or 12V DC input with the included power adapter (optional), and FW1018V1 has flexible battery systerm that supports F970, LP-E6, D28S, Anton, Sony V mount plates of your choice.

Features

1. Wide view angle IPS Screen, High resolution 1920x1200, bright, colorful display
2. High Contrast: 800:1
3. High Brightness: 320cd/m²
4. 160°wide viewing angles IPS Panel
5. HDMI, Ypbpr, Video, Audio(L/R) inputs and HDMI, Ypbpr, Video loop-through outputs
6. Peaking Focus Assist
7. Nine Grid
8. Camera Mode
9. Zoom (4x,9x,16x)
10. Anamorphic Mode (1.3x,2.0x,2.0x mag)
11. Pixel to Pixel
12. Center Marker
13. Safe Area (80%,85%,90%,93%,96%,2.35:1)
14. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
15. Marker Color (Red,Green,Blue,White,Black）
16. Check Field (Red/Green/Blue/Mono)
17. Image Flip (H, V, H/V)
18. Image Freeze
19. Zoom All
20. U/D & L/R Zoom
21. Color Temperature Adjustment
