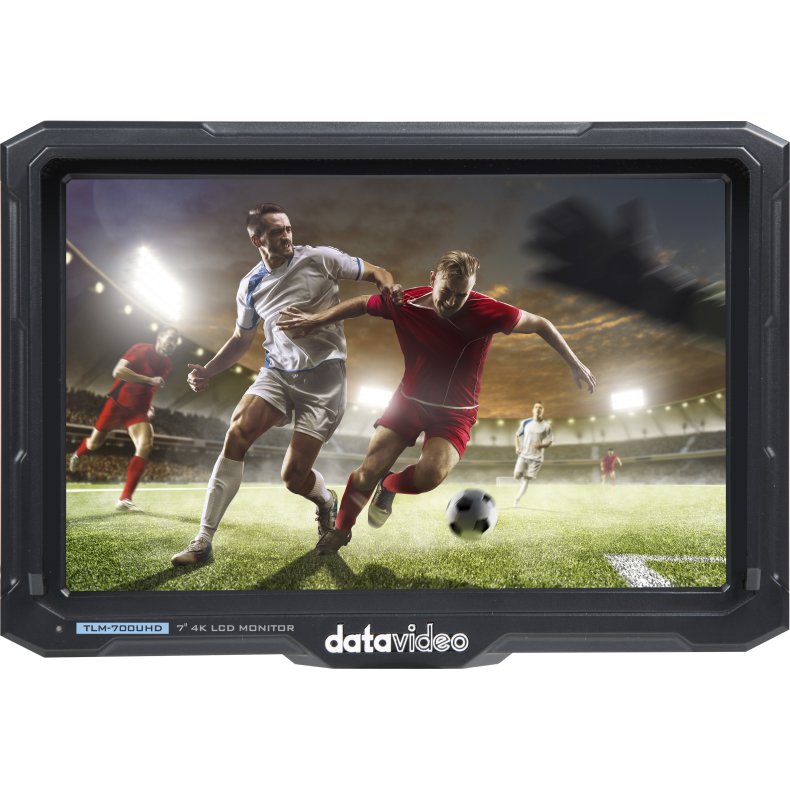

Datavideo TLM-700UHD 7" 4K LCD Monitor
The Datavideo TLM-700UHD features a 7" Full HD 1920 x 1200 resolution screen, supports up to
DCI 4K and Ultra HD signals on input and output. It offers a 170° wide-viewing angle
allows the operator to have a clear, easy-to-see image.
4K 50/60P Amazing Details
Datavideo's TLM-700UHD LCD Monitor accepts 4K 50/60p inputs and displays them on a 7” screen. The monitor is a 1920x1080 Full HD panel which provides 170° of viewing angle. The field monitor supports both DCI 4K and Ultra HD signal inputs and outputs.
7'' 4K Look-Back Monitor
Supports 4K/3G/HD/SD 1920x1200 panel resolution.
Simple Input and Output Configuration
1x HDMI input and loop out
Compatible with Professional Cameras
Compatible with DSLRs, mirrorless cameras, and camcorders
Fast and Accurate Focus Peaking
The red/green/blue peaking profile helps users instantly determine proper focusing.
Peaking zones can be shown during shooting, recording, and playback.
Over-Exposure Analysis
Exposure analysis lets users see if the brightness is too strong in certain regions of the video.
Color Field Checking
Provides monochrome, red, green and blue-only mode for easy color recognition and correction
Screen Flip Function
Supports both vertical and horizontal rotation. Compatible with tripods, arms, and cages. Convenient for viewing from multiple angles.
Zoom In
Zoom in 1.5X / 2X / 3X / 4X
Clearly view the details of image for instant adjustment
Safety Marker and Aspect Marker
Simulates the effect of cropping in post-production. Support vertical mode, too. Safety marker 95% / 93% / 90% / 88% / 85% / 80% and aspect maker 16:9 / 1.85:1 / 2.35:1 / 4: 3 / 3:2
| TLM-700UHD 7" 4K LCD Monitor | |
|---|---|
| Screen |
7" TFT LCD |
| Chassis |
Camera Mount |
| Resolution |
1920x1200 |
| Viewing Angle |
(H) +85/-85° |
| Luminance/Contrast |
450cd/m² |
| Video Inputs |
|
| Loop Through |
1x HDMI (2.0) |
| Supported Input Resolutions |
4096x2160p (23.98/24/25/29.97/30/50/59.94/60Hz) |
| Aspect Ratio |
Full/16:9/1.85:1/2.35:1/4:3/3:2 |
| Aspect Marker |
Full/16:9/1.85:1/2.35:1/4:3/3:2 |
| Safty Marker |
Off/95%/93%/90%/88%/85%/80% |
| Audio In/Out |
Embedded Audio (48KHz sampling) |
| Special Features |
|
| Dimension (LxWxH) |
182 x 129 x 37 mm |
| Weight |
0.3 kg |
| Operating Temp. Range |
0~40 °C |
| Power |
DC 12V, 12W |
| What's in the Box |
1 x TLM-700UHD product |
