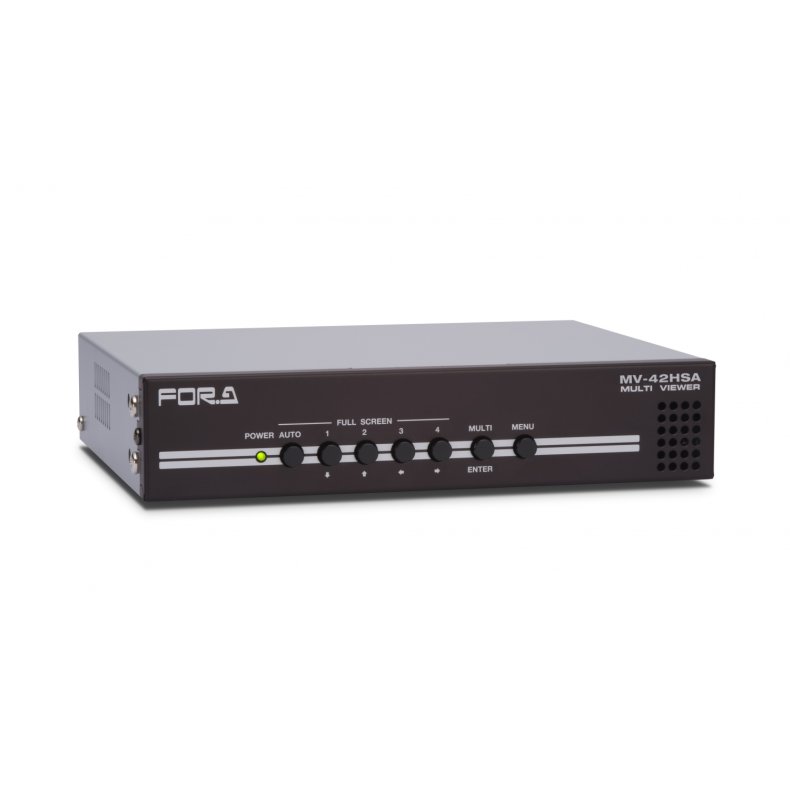

For-A MV-42HS Multiviewer
Quad Viewer and 4K Monitoring Down Converter
Enables monitoring 4K footage on an HD or PC monitor. Supports quad-split screen of 3G-SDI input.
The MV-42HSA is perfect for use as a down-converter that supports 3G-SDI input. Its is also a 4-channel multi viewer that supports 3G-SDI (Level-A/B), HD-SDI, SD-SDI and analog composite inputs.
As a 4K (QFHD) Monitoring Down Converter
- Outputting QFHD (3G-SDI x 4) as HD-SDI and DVI-D (1920 x 1080i or 1280 x 720p) allows signal monitoring on an HD or PC monitor
- 4K (QFHD) mode: Able to undisplay each window frame and QFHD inputs can be displayed seamlessly
- One of four signal inputs can be displayed full-screen, allowing you to examine the footage on a dot-by-dot basi
Features
- Supports mixed 3G-SDI (Level A/B), HD-SDI and SD-SDI signal input (Mixed and asynchronous input supported)
- Supports mixed analog composite input (MV-42AI)
- Outputs high-definition HD-SDI and DVI-D (1920 x 1080 or 1280 x 720) images
- Video loss detection
- Full screen, 2-split (right, left), and quad screen output selectable
- Audio level metering for 3G/HD/SD-SDI embedded audio signals (Up to 8-channel display)
- Displays ancillary time code (ATC) embedded on 3G/HD/SD-SDI input signals
- Max. 16-character title displays for each input (alphanumeric and symbols)
MV-42IFA Option
- RS-232C/LAN interface remote control and/or title settings
- RS-232C/LAN/GPI tally-input frame displays for individual channels
- Remote control and tally inputs via GPI
- Date/time display
- Genlock for external sync signal and HD-SDI/DVI-D output
