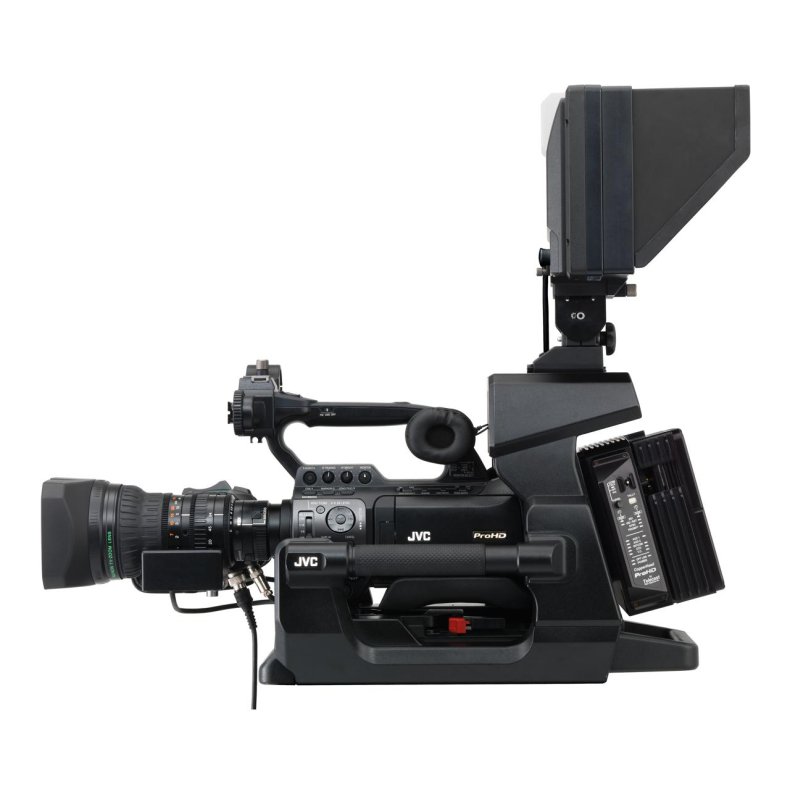

JVC GY-HM890RE Shoulder-mount/studio live streaming HD camcorder

The flexible JVC GY-HM890E three-CMOS HD camera can be used in both ENG mode or in Studio mode, delivering pristine HD images to solid state memory while streaming via optional Wi-Fi or a plugin adapter. It features a removable 20x Fujinon auto-focus lens, 4 channels of audio, dual memory card recording at up to 50 Mbps, an external HD-SDI pool feed input, and a full complement of fibre and multicore studio options.

Advanced IP communication and live HD streaming

The camcorder features JVC's latest IP communications engine, giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or SD resolutions, depending on available bandwidth. Connect your camera to an optional Wi-Fi or 4G/LTE modem and share your programme with an audience anywhere in the world via content delivery networks such as YouTube, Facebook Live, and other cloud services.

Features

• Full complement of Fiber or Multicore studio accessories
• 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
• Fujinon 20x optical zoom lens with AF/OIS included
• F12 sensitivity
• 4-channel audio system
• Multiple file formats for native workflows: XDCAM EX™ (.mp4), Final Cut (.mov), AS-10 (.mxf), AVCHD (.mts), H.264 (.mov)
• Advanced streaming and communications capabilities
• HD/SD-SDI external input for recording and streaming (pool feed)
• Virtually lossless H.264 50Mbps recording
• Genlock input and TC input/output
• Dual SDHC/SDXC memory card recording (HD+HD, HD+SD, HD+web, etc.)
• 12 assignable user buttons
• Compact shoulder design with interchangeable lens options
• * XDCAM EX™ is a trademark of Sony Corporation

Technical Specifictions

GY-HM890RE - Shoulder-mount/studio live streaming HD camcorder

Product Highlights

Modular Design
The GY-HM890 is equipped with multi-pin interface that allows various modules to be attached to the unit without external cabling. The KA-M790 multi-core studio interface module offers a 26-pin interface compatible with cables from JVC and Sony to connect with a camera control unit (CCU.) Power, camera control, intercom, tally and a fully digital HD signal path are available through the RM-HP790 CCU. Other modules include the KA-F790 Remote Fibre Adapter and the KA-AS790 ASI Module. In a studio configuration, the GY-HM890 is easily fitted with the KA-790 sled, a sleek and functional housing that supports a studio viewfinder, teleprompter and large lens if desired. JVC's VF-HP790G is an 8.4-inch high resolution LCD viewfinder with a digital interface to the camera.



High Performance Full HD 1/3-inch CMOS Sensors
At the heart of the GY-HM890 are three 1/3-inch 2.07 effective-megapixel CMOS sensors, each capable of capturing full HD 1920 x 1080 resolution images. Featuring 12 bit read-out, an excellent sensitivity of F12 (50Hz) and a remarkable signal-to-noise ratio, the devices provide superior precision and color reproduction with minimal aberration. For improved CMOS sensor performance, flash-band compensation is also supported.



Newly-developed 20x Fujinon Auto Focus Zoom Lens with Manual Functions
The JCV GY-HM890 is equipped with a newly-developed Fujinon wide-angle 20x zoom lens offering one of the highest magnifications in the industry. For superior low-light performance and assured brightness at the tele end, the lens offers F1.6-3.0, a focal range of 29mm-580mm (35mm equivalent) and includes servo zoom, along with manual focus and iris rings. Optical image stabilizer and chromatic aberration correction are also built into this interchangeable 1/3-inch bayonet mount lens. The built-in Optical Image Stabilizer (OIS) helps to correct lateral and vertical movement of the camera, ensuring that pristine HD images remain sharp and stable. For users who prefer a manual lens, JVC offers a wide range of Fujinon and Canon lenses compatible with this camera.



Outstanding sensitivity, LoLux™ function
The GY-HM890 produces outstanding images under a wide range of lighting conditions. Minimum illumination is less than 1 lux: 0.15lx (typical)*. JVC's exclusive LoLux feature permits shooting in adverse lighting conditions. LoLux can be assigned to a USER button, and set in the menu to offer +30dB or +36dB of gain. A convenient gain switch provides default gain values of -6dB, 0dB, +9dB. These switch positions can be adjusted to various gain amounts from -6dB to +24dB. An ALC mode is also available to boost gain values from +6dB to +24dB. Standard sensitivity of the GY-HM850 is measured at F12@2,000 lux.
*(1920 x 1080 mode, F1.6, Lolux mode, 1/30 or 1/25 shutter



Revolutionary FALCONBRID™ Dual Codec Image Processing Engine
FALCONBRID™ is JVC's high-speed processor for advanced video applications. Delivering tremendous processing power on a single chip, the on-board FALCONBRID™ engine processes large amounts of video data at exceptional speeds. Together with this technology, superior image quality has been realised with 2D DNR processing and compensation circuitry for wide dynamic range. The GY-HM890 utilises dual codec FALCONBRID™ processors that make it possible to record full HD to a memory card, and stream live video to the web simultaneously. The camera is also capable of recording to two memory cards in two resolutions, one in full HD and one in SD, or to a smaller web-friendly file. Depending on connection speed, the smaller files can often be transferred faster than real time for delivery to websites or file-sharing services.



MPEG-2 and AVCHD Recording
The GY-HM890 supports both the popular MPEG-2 Long GOP 35/25/19Mbps format, widely used by television broadcasters, and the highly efficient AVCHD format, which provides compatibility with most affordable editing systems. This means that professionals have unprecedented flexibility to meet production standards through a wide range of workflows. With the revolutionary dual codec, the GY-HM890 also supports simultaneous HD/SD or HD/proxy recording. Also supported is the MPEG-4/AVC H.264 1.2 Mbps SD format.

Ultra and Extreme High Quality Recording Modes
The JVC GY-HM890 is also equipped with the H.264 Extreme High Quality (XHQ) 50Mbps mode for virtually lossless compression, even when recording fast moving objects. MPEG-4 AVC/H.264 offers approximately twice the compression efficiency of MPEG2. Its superior motion prediction ensures a smooth and detailed picture with virtually no block noise in rapid action sequences. The XHQ mode is available when recording 1920 x 1080 at 50p, 50i, 30p and 24p. The GY-HM890 further provides the H.264 Ultra High Quality (UHQ) 35Mbps recording mode, again offering superior image quality but with smaller file sizes.



Multiple File Formats for Native Workflows
Record HD or SD footage directly in ready-to-edit QuickTime™ MOV files, the native file format of Apple's Final Cut Pro™. Native file recording ensures your footage is ready to edit the moment it's shot, resulting in a more efficient workflow and no loss of image quality. For direct editing in other major NLE systems such as Avid Media Composer, Adobe Premiere and Grass Valley Edius Pro, it is also possible to record XDCAM EX™ compatible MP4 files for a likewise seamless native workflow. *H.264 SD MOV file can be edited by Grass Valley Edius Pro

Support for MXF Files with Rich Metadata
A highly efficient file-based workflow is essential to any modern news organization. To ensure file interoperability with the widest range of broadcast production tools, JVC has worked with the Advanced Media Workflow Association (AMWA) on its "AS-10: MXF for Production," establishing a common MXF file format for an end-to-end news production workflow. MXF files are embedded with rich descriptive metadata that is added before, during or after shooting. The AS-10 MXF format builds on the SMPTE RDD 9, the MXF interoperability specification of Sony MPEG Long GOP Products (XDCAM HD.)



Dual SDHC/SDXC Card Slots for Maximum Versatility
Dual SDHC/SDXC card slots make the GY-HM850 a truly versatile camcorder, offering such benefits as simultaneous recording and relay recording with reliable and cost-effective media. In relay recording mode, you can shoot continuously and seamlessly over multiple cards. When one card is full, the camcorder switches seamlessly and automatically to the other card. And because cards are hot swappable, there is in effect no limit to the continuous shooting time in any mode, even with lower capacity cards.

It is possible to start editing footage from one card while still shooting to the other. With simultaneous recording, you can easily create backup or duplicate files as you shoot without the need for any external equipment—either for a client copy or simply for peace of mind. Additionally, while the Rec trigger is used to pause and unpause recording on one card, the other card can act as a continuous backup that overrides the pause function.

SDHC/SDXC media offers the best combination of price, availability, capacity, reliability and transfer speed. With no moving parts and no pins or other extrusions, SDHC/SDXC cards are both durable and reliable, and compare favorably with tape on a cost-per-minute basis. * During simultaneous backup recording in HD mode, the duplicate file records in the same file format and bit rate as the original. Backup recording is not available in AVCHD mode.



Network Connectivity for Next-Level Functionality
The GY-HM890 is equipped with a USB 2.0 host connector that supports an optional wired or wireless (Wi-Fi) network adapter, or a broadband 3G/4G USB Stick. Through connection to a LAN, WAN or internet, various wireless communications functions are available:

Wireless remote control (with remote viewing) using smartphone, tablet or PC
Metadata import and editing
Secure FTP file (clip) uploading
Simple streaming (UDP or TCP) to single IP address
Advanced streaming with ARQ/FEC to cloud or physical server
Wireless remote control
A built-in web interface, allows remote viewing of camera images and wireless remote control when using a smartphone, tablet or PC. Extensive camera control includes:
Full Auto (on/off)
AE Level (setting)
Iris (manual/auto)
Gain (ALC, dB setting, LoLux)
Shutter (OFF, manual setting, EEI)
White balance (Preset, A, B, FAW)
White paint
Zoom (with Fujinon 20x)
Focus (auto, manual, setting) (with Fujinon 20X)
Focus assist
Optical Image Stabilizer
LoLux
Zebra
Clip review
AE Lock
Markers
Various camera menus
Simultaneous live viewing and remote control allow quick image adjustments and zoom in/out control (when using the 20X Fujinon lens.) Zoom presets may also be registered and deleted remotely using the web browser. Recording and live streaming are also triggered remotely.



Secure File Transfer Protocol (FTP) built-in
FTP is a standard network protocol used to transfer recorded clips from the camera to a remote file server, or "cloud." Settings for up to four FTP servers are stored in the camera. Any of the video clips may be transferred individually or in batch mode. Transfer time is determined by the connection speed to the network or internet and by the size of the file(s) to be transferred. For example, a 30 second HD clip recorded at 720p/19Mbps may be transferred in about two minutes using a 4G connection assuming an average upload speed of 5 Mbps. If the clip is recorded in the "web friendly" proxy mode, it may only take a few seconds.

Unwanted information may be trimmed from clips with basic in-camera editing, creating shorter files for transfer. FTP transfers may be performed in the background, allowing the operator to continue shooting without interrupting the workflow. Secure FTP transfers using SFTP or FTPS protocols are possible.

Files watermarked with rich, descriptive metadata
As the GY-HM890 records live footage, metadata optimised for news production is added to the files and is carried throughout the entire workflow from NLE's to playout servers. Metadata may include TITLE (2 data fields), CREATOR, and DESCRIPTION (up to 2047 characters) as well as date, time and location from the camera's built-in GPS receiver.

Importing Metadata
You can download a metadata settings file (XML format) from a remote FTP server and store metadata inthe GY-HM890 for recording onto video clips in the MXF format. Once stored in the camera, metadata is then recorded into the MXF video clips, and will stay with the clips through postproduction, playout and archiving.

Adding Metadata
In addition to downloading, metadata is added in the field using a smartphone, tablet or PC via the camera's web interface. Again, the camera records this information to the MXF video clips.





Camera Front-End Specifications

Image Sensor (inch)

1/3 CMOS

Number of Sensors

3

Mega Pixels

2.2

Gain in dB

0 to 24

Sensitivity in F at 2000 Lux

F 12

Synchronization External

Yes, and internal

Genlock

Yes

Shutter speed

1/4 to 1/10000

White Balance modes

FAW, AWA, 3200K, 5600K, Manual

Color Matrix adjustment

Yes

Wide Dynamic Range Mode (WDR)

Yes

User selected function buttons

Yes, 12

User Customizes Menu

Yes

Optical Specifications

Lens mount

B4

Optical Zoom X times

20

Lens F Number

1.6 to 3

Lens ratio from / to

4.1mm to 82mm

Lens ratio equivalent to 35mm

19mm to 580mm

Auto Focus

Yes

Special Auto Focus Features

Area Focus, Near/Far Modes, Face

Optical Image stabilization

Yes

Filter Diameter in mm

72mm

Build in ND Filters

3 Filters: 1/4, 1/16, 1/64 plus OPEN

Memory for Zoom Position

Yes, IN/OUT with acceleration set-up

Recording Formats

Media

SDHC/SDXC

Media Class

Class 10

Recording slots

2

Encoder

MPEG2 / H.264

File Format MOV

Yes

File Format MP4

Yes

File Format AVCHD

Yes

File Format MXF

Yes

Video Codec MPEG2 Long GOP

Yes

Video Codec AVCHD

Yes

Video Codec H264 (SD)

Yes

Recording specials

HD+SD / HD+Web

Simultaneous recording on 2 cards

Yes

Simultaneous recording in 2 modes

Yes

Recording Resolution Formats



Resolution 1920 x 1080

Yes, 60p/50p/30p/25p/24p/60i/50i

Resolution 1440 x 1080

Yes, 60i/50i

Resolution 1280 x720

Yes, 60p/50p/30p/25p/24p

Resolution 720 x 576

Yes, 50i

Resolution 960 x 540

Yes, 30p/25p/24p

Resolution 480 x 270

Yes, 30p/25p/24p

Recording Data rate 1

19Mbps(SP), 25Mbps(SP), 35Mbps(HQ)

Recording Data rate 2

5,9,18,24,28Mbps (AVCHD)

Recording Data rate 3

35Mbps (UHQ)

Recording Data rate 4

50Mbps (XHQ)

Recording Data rate 5

8 Mbps (SD)

Recording Data rate 6

5, 3, 0.8 (WEB)

SD Recording

Yes

Over / Under Crank

Yes

Interval Recording

Yes

Pre Rec (retro) recording

Yes, 10 sec.

Clip Trimming

Yes

Audio Channels

4

Audio Recording modes

LPCM 2ch/4ch, 48 kHz/16 bit (MPEG-2 Long GOP/H.264), AC3 2ch(AVCHD), μ-law 2ch (Web)

Audio Filters

Yes, Wind Cuts, Limiters, Gains

Audio Equalizer

Yes, Graphical

IP Section of the Product

IP Main Connection

USB A Host

IP Connection supports

Ethernet, WIFI - and LTE USB Adapters

IP Features Live-Streaming

Yes

IP Features Remote

Yes, via Web-Browser no apps needed

IP Features FTP

Yes

IP Features Meta-Data

Yes

IP Features IFB (Audio-Return via IP)

Yes, with optional Audio encoder

Live-Streaming Bitrates

0.3,0.8,1.5, 2.5, 3,5,8,12Mbps

Live-Streaming Protocols

RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI

Live-Streaming Single cast

Yes

Live-Streaming Multicast

Yes

Live-Streaming (encoding) for Poolfeed signals

Yes

Live-Streaming reconnect

Yes

Live-Streaming and simultaneous REC

Yes

Live-Streaming Pre-sets of destinations

4

FTP Protocol formats

FTP / SFTP / FTPS

FTP upload during REC

Yes

FTP servers presets

4

Meta-Data presets of servers

4

Note for all kind of USB Adapters

The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!

Recommendation for WIFI USB Adapters (EU only)

Please Note: Sometimes the Manufacturers change the Revision of the Chip-sets, but product name not changed, we can´t track such issues so may its possible that such a dongles even its mentioned here, may not work. The Adapters below are work able in the 2,4 GHz and 5 GHz infrastructure.

WIFI Dongle 1

Sitecom WLA.1001

WIFI Dongle 2

EnGenius EUB1200AC /Realtek RTL8812AU

WIFI Dongle 3

ASUS USB1200AC /Realtek RTL8812AU

WIFI Dongle 4

D-LINK DWA-172 (revA1) /Realtek RTL8811AU

WIFI Dongle 5

EDIMAX EW-781UTC /Realtek RTL8811AU

WIFI Dongle 6

D-LINK DWA-171(revA1) /Realtek 8811AU

WIFI Dongle 7

TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!!

WIFI Dongle 8

Wideland (over Amazon) ACWIFI DEWIFIC001A

Recommendation for Ethernet adapters



Ethernet Dongle 1

EDIMAX EU-4208

Ethernet Dongle 2

Sitecom LN-030 V2 not Sitecom LN-030 V3

Ethernet Dongle 3

Hamlet HNU2GTX

Ethernet Dongle 4

D-LINK DUB-E100 (rev C1)

Ethernet Dongle 5



Recommendation for 3G/4G (LTE) Adapters

Dear Customer, for the most countries we have a recommendation of adapters, please download our info sheet for LTE support, below you find a special recommendation, which should work in the most countries.

LTE Specials 1

Universal LTE dongle Huawei E8372LTE Wingle so far works with Telekom/O2/Vodafon , others not tested yet.

IN-OUT´s Connections

OUT HDSDI

Yes, 3G

OUT HDSDI Format max.

1080/60p,50p 8 Bit 4:2:2 EE

OUT HDMI

Yes

OUT HDMI Format max.

1920x1080 60/50p 8 Bit 4:2:2

OUT AV

Yes

OUT Audio Line

Yes, 2 times RCA

OUT Audio Headphone

Yes, 2 times 3.5mm mini jack

IN Poolfeed HDSDI

Yes, 1.5 Gbit HDSDI

IN Genlock

Yes

IN Audio XLR MIC/LINE

Yes, 2 times +48V MIC/LINE

IN Audio AUX

Yes, 3.5mm Stereo mini jack

External Lens connector

Yes, 12 pin standard

Time code IN/OUT

Yes

Wired remote IN

Yes, 2.5mm mini jack LANC

Wired remote IN

Yes, 6 Pin DIN

USB HOST

Yes

USB Data Exchange (Storage)

Yes

System Connector

Yes, 68 Pin

EVF Connector

Yes, for VF-P EVF´s

EVF and LCD

Operation Panel Type

LCD

Operation Panel Resolution

410K

Operation Panel Size diagonal in inch

4.3

Electronic Viewfinder (EVF) Type

LCOS

Electronic Viewfinder (EVF) Resolution

1,22 Mp

Electronic Viewfinder (EVF) Size diagonal in inch

0.45

Special Indications

Histogram and expanded focus

Power and Enviroment Spec´s

Power AC

Yes, over option AC/DC Adapter

Power DC

Yes, 12V Headroom (10.5V-17V) over V Mount or 4 Pin DC XLR

Battery types

IDX V Mount

Power consumption

Approximate 28W (Camera body with provided lens and LCD/VF On single recording mode, default settings)

Operation Temperature in Celsius degrees

0 to 40

Storage Temperature in Celsius degrees

-20 to 50

Operation Humidity in %

35 to 80

Storage Humidity under %

85

Mechanical Informations

Weight in kg

4,8 include battery

Measurements (WxHxD) in mm

W 231 x H 243 x D 419

Measurements additional notes

Without Studio Adapter

Include Package

Instructions

Yes

Software

Yes, Clip Manager

Additional s

Yes, Fujinon Lens, Anti reflective film, Microphone, not include camera tripod plate KA-551

General Editing Note

NOTE:

Simulated pictures.The values for weight and dimensions are approximate .E.&O.E. Design and specifications subject to change without notice.
