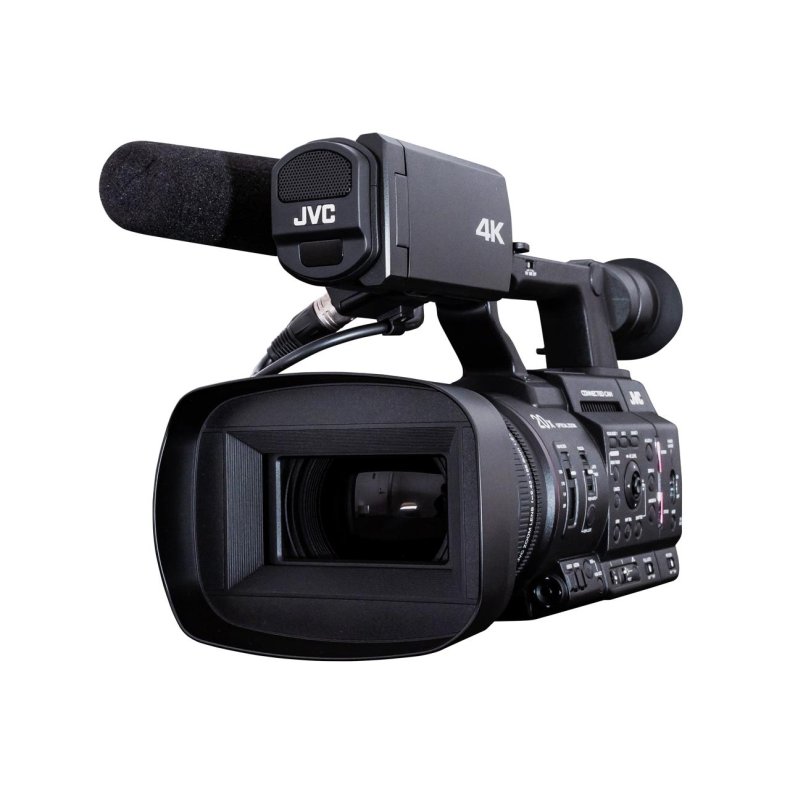

JVC GY-HC500E 4K ENG hand-held camcorder

The JVC GY-HC500 is a handheld 4K production camcorder, ideal for ENG, production and sports, featuring a 1-inch sensor and live streaming. It offers uncompromised live and recorded image quality, with exceptional IP connectivity features. Shoot 4K Ultra HD with HDR and record to SSD media in a wide variety of formats, including 10-bit ProRes 422 at 4K resolution and 50/60p frame rates.

Features

• 1" (effective) CMOS sensor with high picture quality
• F12 Sensitivity
• 4K UHD 60p/50p ProRes 4:2:2 10-bit recording to SSD*
• HD Recording to SSD*
• 4K UHD 30p/25p/24p 4:2:0 8-bit recording to SDHC/SDXC card
• HDR recording, HLG or J-Log1 (10-bit)
• SSD* Back up recording
• Newly-developed 4K lens with 20x zoom
• 40x lossless dynamic zoom
• 4K Rec + HD streaming + 4K HDMI output
• Low latency and high-quality streaming up to 20Mbps
• New SRT and RTMPS Streaming protocol
• NTP support for Time-synchronization
• High performance 1080 60p/50p live streaming
• Auto FTP to upload native video clips automatically
• Progressive Auto FTP File transfer
• Return over IP (Return video and IFB)
• LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
• 4-inch high resolution LCD monitor
• XLR audio connectors



Technical specifications

GY-HC500E - 4K ENG hand-held camcorder

Product Highlights

Firmware v0201 now available – click on the Product Support tab for the download link.

The GY-HC500 and GY-HC550 cameras now include SNS video streaming with vertical and square guidelines on the viewfinder to ensure ideal image capture for a variety of platforms and devices. The company is adding easy setup functionality, allowing GY-HC500 users to stream to Facebook Live and YouTube Live with the click of a button.

Info

Camera Front-End Specifications

Image Sensor (inch)

1" (effective) CMOS

Number of Sensors

1

Mega Pixels

9,35 mio

Sensitivity in F at 2000 Lux

F 12

Shutter speed

1/6 to 1/10000

White Balance modes

FAW, AWA, 3200K, 5600K, Manual

Color Matrix adjustment

Yes

Wide Dynamic Range Mode (WDR)

Yes

LOG Mode

Yes, J-LOG HLR

User selected function buttons

Yes

User Customizes Menu

Yes

Optical Specifications

Lens mount

Internal

Optical Zoom X times

20

Dynamic Zoom x times

40

Lens F Number

2.8 to 4.5

Lens ratio from / to

9.43mm to 188.6mm

Lens ratio equivalent to 35mm

28mm to 560mm

Auto Focus

Yes

Optical Image stabilization

Yes

Filter Diameter in mm

82mm

Build in ND Filters

3 Filters: 1/4, 1/16, 1/64 plus OPEN

Recording Formats

Media

SDHC/SDXC memory card x 2 plus M2 SSD Slot with Adapter* optional

Media Class

4K/70 Mbps,HD and below Class 10 4K/150Mbps UHS1-U3 (no UHS-2)

Recording slots

3

Encoder

ProRes, MPEG-4 AVC/H.264 (HD/SD),

File Format MOV

Yes

File Format MP4

Yes

Video Codec MPEG4 AVC/H264 4K/HD

Yes

Video Codec H264 (SD)

Yes

Video Codec others

4K UHD ProRes / Proxy H264

Recording Resolution Formats



Resolution 3840 x 2160

Yes, 4K UHD 60p/50p (ProRes) 422HQ/422/422LT 10-bit
4K UHD 30p/25p/24p (H.264) 4:2:2 10-bit / 4:2:0 8-bit 150Mbps/70Mbps

Resolution 1920 x 1080

Yes

Resolution 1280 x720

Yes

Resolution 720 x 576

Yes, 50i

Resolution 960 x 540

Yes

Resolution 480 x 270

Yes

SD Recording

Yes

Audio Channels

2

Audio Recording modes

LPCM 2ch, 48kHz/16-bit, µ-Law 2ch (Proxy), AAC 2ch (MP4)

Audio Filters

Yes

IP Section of the Product

IP Main Connection

USB A Host, Ethernet LAN RJ45 1000Base-T

IP Connection supports

Ethernet, WIFI - and LTE USB Adapters

IP Build in WIFI-Band aera support



IP Features Live-Streaming

Yes

IP Features Remote

Yes, via RM-LP100 or Web-Browser no apps needed

IP Features FTP

Yes, Different protocols

IP Features Auto FTP Upload

Yes

IP Features Meta-Data

Yes, Local and Remote editing and data exchange

IP Features IFB (Audio-Return via IP)

Yes, with optional Audio encoder AAC Format

IP Video Return stream

Yes

Live-Streaming Bitrates

1920 x 1080 (59.94p/50p) 20 – 8Mbps, (29.97p/25p) 20 – 3Mbps, 1920 x 1080 (59.94i/50i) 20 – 3Mbps,
1280 x 720 (59.94p/50p) 20 – 3Mbps, 1280 x 720 (29.97p/25p) 8 – 1.5Mbps,
640 x 360 (59.94p/50p) 3/1.5Mbps, 640 x 360 (29.97p/25p) 3 – 0.3Mbps

Live-Streaming Protocols

RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, MPEG2-TS/RTP, RTSP/RTP, SRT

Live-Streaming Single cast

Yes

Live-Streaming Multicast

Yes

Live-Streaming reconnect

Yes

Live-Streaming and simultaneous REC

Yes

Live-Streaming Pre-sets of destinations

4

FTP Protocol formats

FTP / SFTP / FTPS

FTP upload during REC

Yes

FTP servers presets

4

Meta-Data presets of servers

3

Note for all kind of USB Adapters

The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first!

Special Features

IN-OUT´s Connections

OUT HDSDI

Yes, 3G HDSDI

OUT HDSDI Format max.

1080/60p,50p 10 Bit 4:2:2 EE

OUT HDMI

Yes

OUT HDMI Format max.

UHD

OUT AV

Yes, 3.5mm mini jack

OUT Audio Headphone

Yes, 1 times 3.5mm mini jack

IN Audio XLR MIC/LINE

Yes, 2 CH with +48 V Mic and Line support

Time code IN/OUT

Yes

Wired remote IN

Yes, serial LANC 2.5mm mini jack

USB HOST

Yes

Option Slot

SSD Caddy Support

EVF and LCD

Operation Panel Type

LCD

Operation Panel Resolution

WVGA (800 x 480), 800 x 450 at 16:9

Operation Panel Size diagonal in inch

3.97

Electronic Viewfinder (EVF) Type

LCOS

Electronic Viewfinder (EVF) Resolution

Quad VGA (1280 x 960), 1280 x 720 at 16:9

Electronic Viewfinder (EVF) Size diagonal in inch

0.4

Power and Enviroment Spec´s

Power AC

Yes, DV12V(AC Adapter)

Power DC

Yes, 7,2 Volt Battery BN-VC264

Battery types

BN-VC264

Power consumption

17,5 Watt

Mechanical Informations

Weight in kg

3,1 kg

Measurements (WxHxD) in mm

W 195 x H 230 x D 445

Include Package

Battery

Yes, BN-VC296G

AC/DC adapter

Yes, AC Adapter

Cable 1

Yes, Power cord

Additional s

Yes, Lens Cap

General Editing Note

NOTE:

Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
