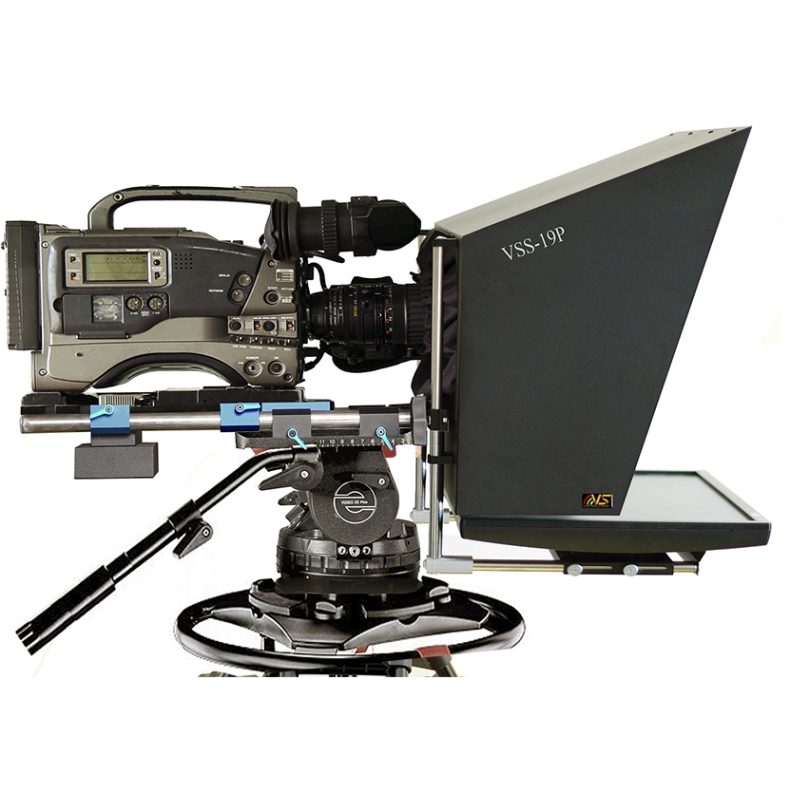

Videosolutions Group Teleprompter VSS-19Pro

Professional prompter VSS-19Pro is constructed under the traditional scheme and intended for a projection of the readable text to the translucent glass located  in front of  the camera lens. The text are completely reflected in the direction of the announcer, without falling into  formed by the camera the video signal.  Provides video shootings with any types of videocameras.

  Uses a special mirror (Broadcast Quality Ultraclear Beamsplitter) with the main, semi-transparent layer of amalgam 70/30 ( transparency / reflectance) and an additional anti-reflection (AR) coating , minimizing unwanted reflections from inner side of the mirror to prevent ghosting.

  The basis of this design of prompter is Base plate platform made of polished stainless steel tubes, where are three movable mounting plates  and mounting hardware for front part of the prompter (tube with a mirror and a monitor). The upper mounting plate is designed to mount the camcorder.  The lower plate provides mount on a pedestal or tripod. The back plate - for set the counterweight for balancing system.

   The base plate provides free horizontal movement of the mouting plates, fixing them in the desired position, and provides vertical movement up / down of the  tubes with the mirror and  the monitor   relative to a fixed base plate with camera and fixing in position that allows to adapt the design to use camera of any size.

  There is ability to change the angle of the mirror up to 55 degrees, it is allows you to use the camera with a wide angle lens.

  Loose (non-rigid) fixing the mirror inside the hood makes it easy to remove it for replace, to clean and  to safe transportation.

THE MAIN FEATURES:

• Increased rigidity
• Ability to use a lens servo  control
• Broadcast quality beamsplitter 70/30 with AR coating
• The ability to use  any size cameras
• Ability to use wide-angle lenses
• The ability to easily remove the mirror
• Versatile mounting elements

SPECIFICATIONS:

MONITOR:

MIRROR:

CONSTRUCTION:

IN THE BOX:

• Teleprompter hood with a beam splitter 70/30 with AR coating, 450x400mm
• Base plate with mounting brackets
• 19’ LCD monitor with standard cables
• Control foot-pedal
• Prompting software VSPrompter3
• Kit of screws with different sizes for mounting
