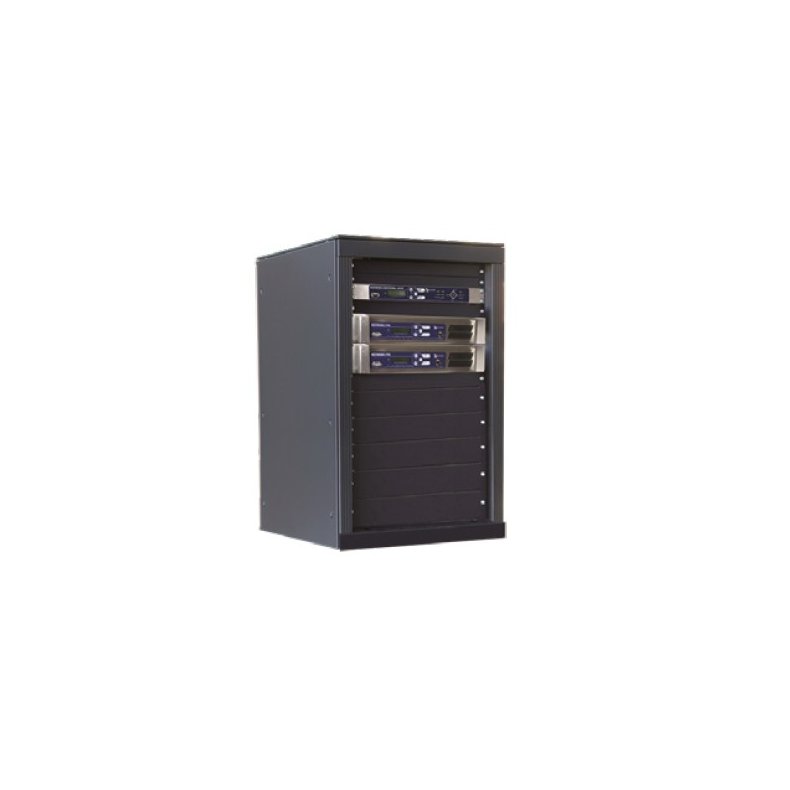

Ecreso 1+1 100W FM Exciter / Transmitter
1+1 Full Digital Transmitter for analog FM including:
- 2 ECRESO FM 100W (2U) with Communication pack including intuitive and secured Web Interface (TCP/IP), Advanced Measurement Interface, Full SNMP Management, Audio Backup on uSD card, Scheduler, alarms by email + Free 6 months Expert Maintenance Reporting (EMR)
- ECRESO CONTROL UNIT (1U) with IP
- RF Switch (N) with its power supply
- Interconnection cables (RF and CAN)
- Direct to Frequency Digital Modulator
- Wide Band Sound Processor with Gated and Predictive AGC, HF Limiter, Final Limiter, Audio Presets, Intuitive Interface with presets and VU meters
- Digital Stereo Encoder
- MPX/Audio over AES, Analog Audio and 2 MPX/SCA inputs
- Silence detection and intelligent input switching
- Up to 70% efficiency
- Rack integration and dummy load is not included but recommended
| Following Options are available on demand - you buy a standard transmitter or a complete system! Contact us for assistance! | |
| Ecreso Software Options | |
| CD01003 | SmartFM |
| CD00106 | Dynamic RDS |
| CD01001 | 5 Band Sound Processor |
| CD00162 | Communication Pack |
| Ecreso Hardware Options | |
| SP01319 | GPIO board |
| SP01615 | Analog GPIO board |
| ST01981 / ST01792 | SFN option |
| SP01260-AO | Internal surge protector |
| Extended Warranty | |
| EMR4 | 10 Year Warranty (100-300W) |
| EMR5 | 10 Year Warranty (750-2000W) |
| EMR6 | Expert Maintenance Reporting |
| On Demand Services | |
| Dummy loads, adapters, cables | |
| Cavity filters, combiners and antenna systems | |
| Coverage Study | |
| Turnkey solutions for broadcasting site | |
Full Transmitter Redundancy
Ecreso can provide highly reliable Dual Drive and 1+1 systems for complete transmitter redundancy. At the heart of these redundant systems is the ECRESO CONTROL UNIT which can detect any fault and automatically switch to the reserve transmitter or exciter in case of failure of the on-air system. It can also act as the central management unit of your Ecreso FM Transmitter.
The ECRESO CONTROL UNIT can be equipped with GPIOs and TCP/IP communications for web and SNMP based monitoring and control.
POWERFUL
PERFORMANCE
- Automatic switching to reserve transmitter
- Highly reliable hardware
- Turnkey solutions
POWERFUL
CONTROL
- TCP/IP, Web, SNMP, GPIOs
- Intuitive local / remote GUIs
- Advanced Measurement Interface
POWERFUL
SAVINGS
- One to one redundancy
- No costly outages
- Easy to install & maintain
FEATURES
- Full Transmitter Redundancy
- Intelligent control unit enables automatic switching
- CAN bus connections between control unit & Ecreso units
- Compatible with RF switches from N to 1 5/8
- Control unit offers front panel status & control
- Customized rack integration
- Turnkey solutions including peripherals
- Compact and reliable hardware design
- Easy local and remote maintenance and control
DUAL DRIVE TRANSMITTER SYSTEMS INCLUDE:
- 2 Ecreso FM 100W (Full Digital Exciters)
- ECRESO CONTROL UNIT
- RF Switch (N) controlled by ECRESO CONTROL UNIT
- TCP/IP with SNMP and Web Pages
1+1 TRANSMITTER SYSTEMS INCLUDE:
- 2 Ecreso FM Transmitters
- ECRESO CONTROL UNIT
- RF Switch controlled by ECRESO CONTROL UNIT
- TCP/IP with SNMP and Web Pages
CONNECT WITH WORLDCAST MANAGER
The WorldCast Manager simplifies the management of all SNMP-enabled devices in a network, providing real-time status, historical data and visualization of multiple devices from a single screen. The intuitive and simple-to-use interface shows all devices located at your site(s) displaying product information, alerting you to any alarms and providing one-click access to the unit’s web-based control interface.
The WorldCast Manager is compatible with all WorldCast Systems’ equipment as well as SNMP devices from ANY manufacturer.
