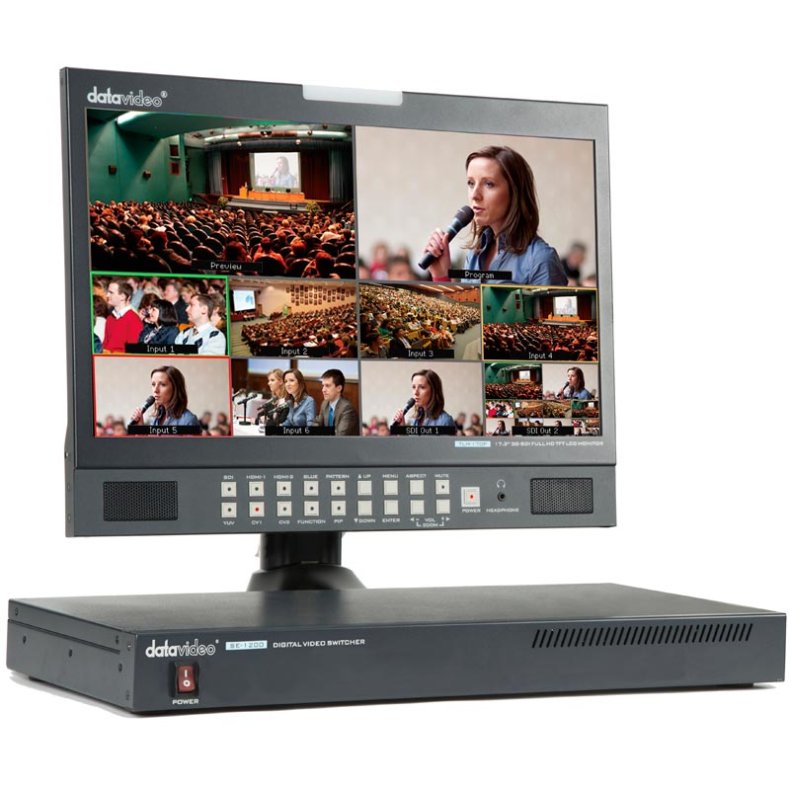

Datavideo SE-1200MU HD 6-Channel Digital Video Switcher
Switcher with distance control
Switch over IP, external control or RMC-260 control panel
Suitable for medium-sized productions
Supports 6 HD inputs and 4 outputs in HDMI and SDI.
Stunning video effect enrich the scene
Two down stream keyers and two picture-in-picture generators combined with a dual chromakeyer give you enough freedom to be creative.
Built-in animation and backgrounds
Pre-saved multiple sets of animated stinger transitions and virtual set backgrounds.
Supports XPT (Cross Point Assignment)
A XPT feature giving you a much easy use on the live production.
Specifications
| SE-1200MU 6 Input Rackmount HD Switcher | |
|---|---|
| Video Standard |
HD |
| Video Format |
1080i 50/59.94/60Hz |
| Video Processing |
SDI: 4:2:2 |
| Input Routable / Crosspoint |
All 6, repeatable |
| Video Input |
4x HD-SDI |
| Computer Graphic Interface |
2 via HDMI |
| Video Output |
2x HD-SDI |
| Built-in Multi-view Monitoring Out |
HDMI & Ethernet (MJPE |
| Audio Input |
2x Balanced XLR |
| Audio Output |
Embedded digital audio (2 CH) |
| Embedded Audio Support |
Embedded 2-CH audio output from XLR input or embedded audio input |
| A+V Switching |
Yes |
| Chromakey |
2 |
| USK |
2x USK support Chromakey & Linear/ Luma Key |
| DSK |
2x DSK support Lumakey & Linear key (Key / Fill) |
| Picture in Picture |
1 |
| Still Store |
500 |
| Effects |
FTB, Cut, 32 Wipe with |
| Transition Preview |
Full transitions preview |
| Sync / Reference In/Out |
Built-in Genlock (internal) |
| Tally Output |
1x D-sub 15pin, dual color |
| PC Remote Control |
Via Eth |
| Special Features |
Motion JPEG Multi-view streaming |
| Chassis |
2 units, 1RU rack-mount mainframe |
| Dimension (LxWxH) |
440 x 215 x 49 mm |
| Weight |
1.5 kg |
| Power |
DC 12V, 19W |
| Operating Temp. Range |
0~40 °C |
| Options |
CB-46/47/60/61/62 |
| What's in the box |
1 x SE-1200MU product |
