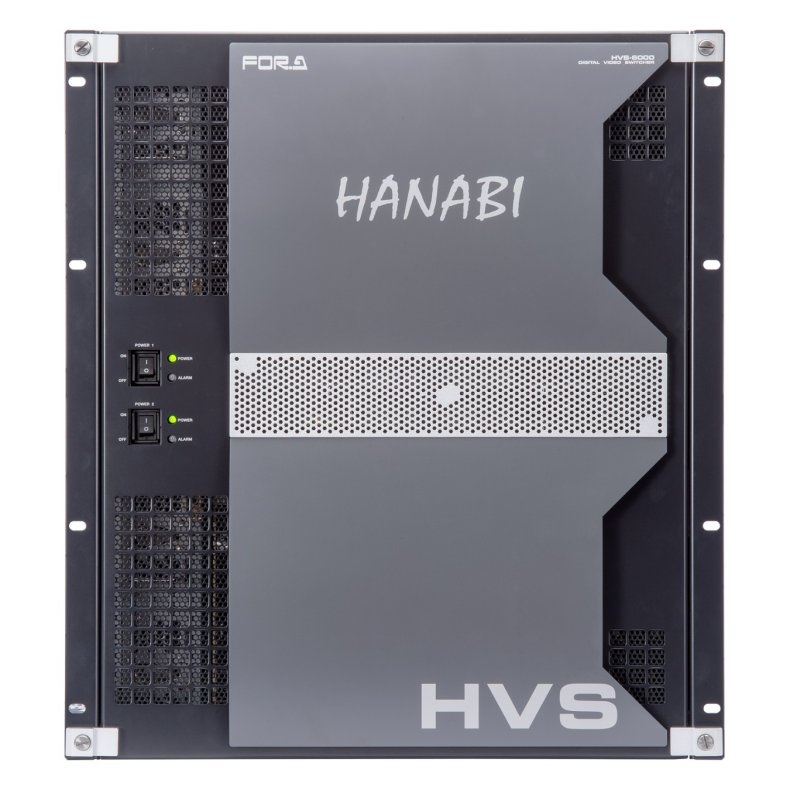

For-A HVS-6000/2240OU
2ME, 24in, 24out(16aux), DVE 5ch/ME, 0MV, 0DSK, HVS-2240OU, PSM, PSO, HVS-6000+2240OU, Frame +ME×2 +IN×3 +OUT×2 +2240OU
Offering 4K(UHD) and 12G-SDI support, maximum 80 input/32 output or 64 input/48 output, the HVS-6000 is ideal for upgrading from HD to 4K
Designed for use in 4K(UHD) systems, the HVS-6000 brings 12G-SDI compatibility to all inputs and outputs. Users can operate the unit in the same manner as current HD systems. In an era of video over IP, the HVS-6000 anticipates these needs and enables IP interfaces to be mounted on all I/O slots*.
*Planned for future support
Main Features
- Up to 80 in/32 out or 64 in/48 out, all inputs and outputs support 12G-SDI single link
- IP input/output support planned for future use
- 3 M/Es with split M/E, 4 keyers per M/E
- Frame synchronization and still store available for inputs
- Gearbox function available for I/O
- Color corrector for input and output video, mutual HDR and SDR conversion, and up/down function
- Control panels: HVS-2120ROU, HVS-2240OU, HVS-3320OU and HVS-3355OU (custom-ordered)
HVS-6000
- 2 M/E standard, expandable 3 M/E
- Up to 80 in/32 out or 64 in/48 out in 12G-SDI
- 12 RU
| Titel | Sorte | Größe | Herunterladen |
|---|---|---|---|
| HVS-6000_E_180522.pdf | 274.61KB | Herunterladen |
