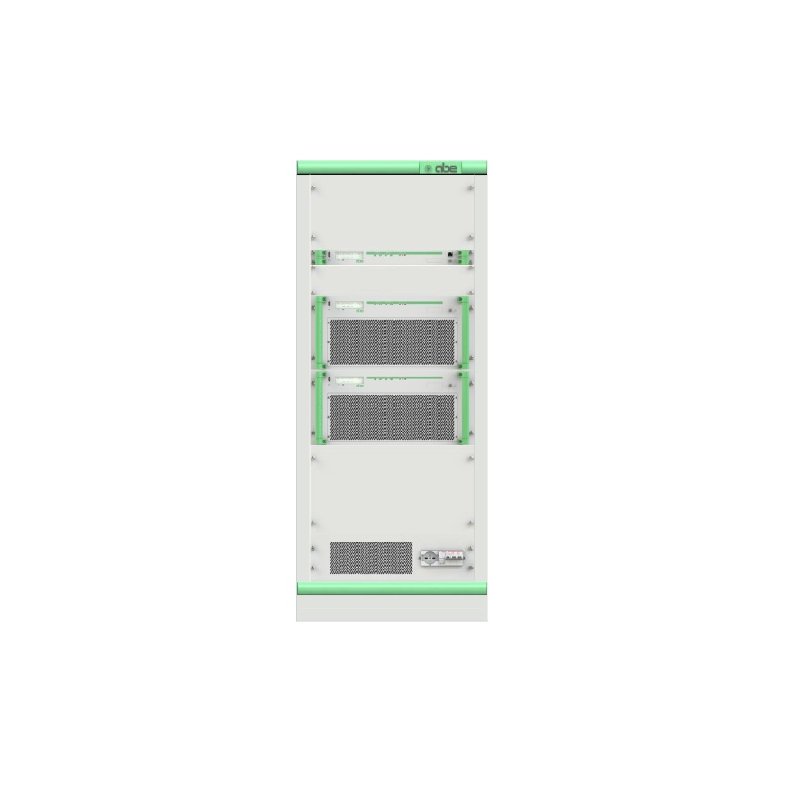

ABE MTX A 5K/V VHF TV Transmitter Multist. 5 kW

MULTISTANDARD MULTIMODE DIGITAL & ANALOG
Broadcasting (DVB-T/H, DVB-T2, ISDB-T/Tb, ATSC and other standards).

 A high performance digital & analog Multistandard Multimode TV
Transmitter Line featuring latest technology
 High reliability with choice of dual drive, passive stand-by or n+1 systems
 Low power consumption
 Low cost of ownership, low Capital cost, running expenses & maintenance

With the company's 30 years of experience in this field, the MTX"" Series is the ultimate in technology, quality and performance it is designed to take advantage of the excellence of the digital modulation systems to generate both Analog and Digital emissions.
This new ""MTX"" Compact Series of Transmitters -Transposers - Gap-fillers brings together the highly efficient and reliable ABE MOS and LD-MOS broadband
Power Amplifiers with state-of-the-art technological solutions.

 Scalable architecture, capable of supporting both first and second generation analog and
digital standards
 Multistandard analog modulation with digital processing (PAL/SECAM/NTSC B,G,D, I, K,K1,
M, N standards supported)
 Multistandard digital modulation (DVB-T/H, DVB-T2, ISDB-T/Tb and other standards)
 Available configurations: Modulator - Transmitter - Transposer - Transmodulator - Gap-filler.
 Wide choice of input interfaces ( ASI - Ethernet for T.S. over IP - DVB-S/S2 Multistream receiver,
Digital Terrestrial Receiver, Video/Audio analog.)
 RF output: UHF, VHF Band 1 and Band 3
 Frequency Agile Direct Digital Synthesizer with 1Hz resolution
 Adaptive precorrection option
 High efficiency 50V technology MOS and LD-MOS power amplifiers up to 20KW
 High degree of operational reliability: single or dual drive, passive stand-by systems (1+1 or
N+1), multiple power amplifier versions
 User friendly local and remote control includes ""on-board"" display, WEB Server, SNMP and email client.

ENERAL FEATURES AND OPTIONS:
 Comprehensive monitoring, alarm and protection
circuits, including a Power Amplifier fold-back
function to reduce output power before tripping
off, due to high VSWR, heat-sink over-temperature
or overdrive
 Warm-up & Soft-start functions to avoid output
power surges
 ALC (Automatic Level Control) to stabilize the
Power Amplifier's RF output level over a limited
range
 Power Amplifier Modules with gain and phase(1)
adjustment to obtain perfect matching when
coupling more units
 Efficient air cooling system with long life blowers
and ducted air outlet option for ducted air inlet
 Output filters to comply with the emission mask
specification requested
 ""MTX"" Multistandard Multimode driving unit allow
dualcast operation (analog and digital
multistandard) and can be supplied with various
options and in several configurations to satisfy
Customer's need (wide choice of input interfaces,
linear and non-linear precorrection with option
for adaptive. - please see specific documentation
for detailed description, features and technical
specifications)
 Dual-Drive option include a stand-by Drive unit
and the Automatic Changeover unit which, in the
event of fail of the working Drive, immediately
brings the stand-by Drive into operation
 User Friendly local and remote control includes
""on-board"" display, WEB server, SNMP and e-mail
client
(1)- phase adjustment for UHF only""
