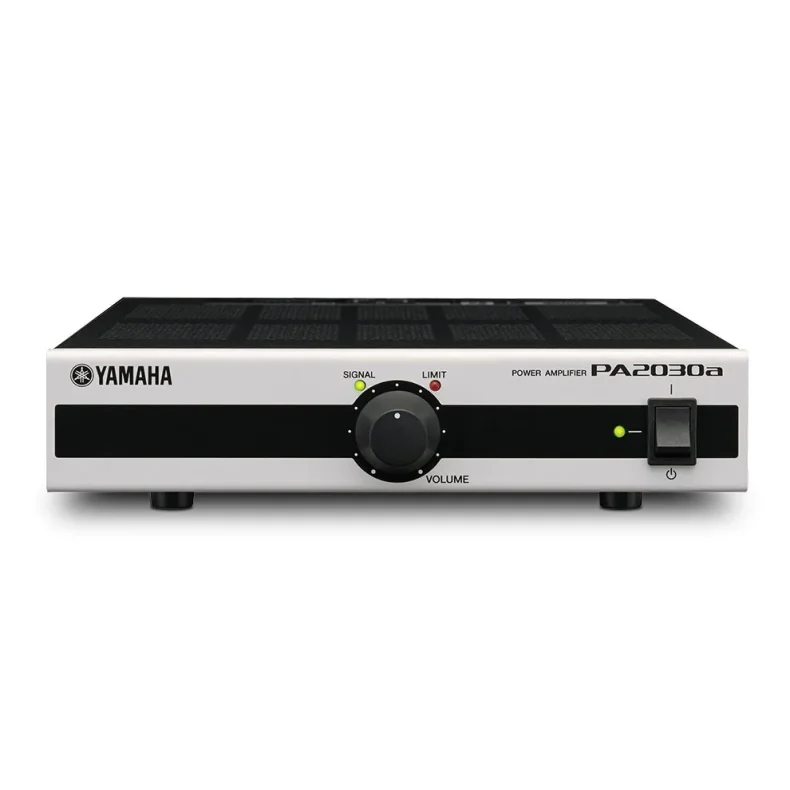

Yamaha PA2030a Power Amplifiers
Lo-Z/Hi-Z switchable Class-D amplifier (Lo-Z: 30W x2ch, Hi-Z: 60W x1ch) equipped with 1 stereo/2 mono line inputs; can be combined with the MA2030a mixer amplifier.
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (30W @3Ω/4Ω/8Ω) and Hi-Z (60W x1ch, 70V/100V) speaker systems
- 1 stereo/2mono line inputs
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speaker
- Built-in HPF/LPF
- Intelligent protection function ensures safe, reliable operation
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
A Smart Simple Solution
With quick, easy setup and intuitive operation, the compact MA and PA series power amplifiers make it easier than ever to bring your commercial space to life. The MA2030a and PA2030a are ideal audio solutions for retail stores, eateries, classrooms or public facilities like hospitals. The MA2120 and PA2120 meet the demands of a wide range of applications requiring higher power as well as more flexible DSP functionality and zone control. All models combine approachable, unobtrusive design with efficient, flexible performance. The MA2030a and MA2120 offer mixing capability with source EQ (Bass/Treble) control, as well as some of the same state-of-the-art DSP technol-ogies that are acclaimed features of professional Yamaha audio gear. Whether providing background music for a café or restaurant or powering a conference room or other application requiring microphone input, the MA/PA series amplifiers are simple yet powerful tools that can help establish an ideal commercial sound environment.
- Simple, user-friendly interface
- Stereo and microphone inputs (MA series)
- DSP functions optimized for background music (MA series)
- Switchable for low (3/4/8 Ω) and high (70/100 V) impedance speaker systems
- Stereo source EQ with enhancer function (MA series)
- EQ for optimum performance with Yamaha VXC/VXS series speakers built in
- Easy service zone expansion with PA series amplifiers (PA2030a excluded)
- Optional DCP control panels allow convenient remote volume control, microphone ON/OFF switching and chime activation (PA2030a excluded)
- Industry leading Yamaha quality control and reliability
- Compact, space-saving design*
* All models are naturally cooled designs that require sufficient surrounding space for airflow.
MA/PA Series Features
| MA2120 | PA2120 | MA2030a | PA2030a | ||
|---|---|---|---|---|---|
| Easy setup and a user-friendly interface | |||||
| Highly-efficient Class-D amplifier | |||||
| Certified with ENERGY STAR | |||||
| Switchable for Lo-Z and Hi-Z speaker systems | |||||
| Output Power: Lo-Z | 120W x 2 @4Ω 100W x 2 @3Ω / 8Ω |
30W x 2 @3Ω / 4Ω / 8Ω | |||
| Output Power: Hi-Z | 120W x 2 @70V / 100V 200W x 1 @70V / 100V |
60W x 1 @70V / 100V | |||
| Flexible inputs | 6 Mic/Line inputs & 2 Stereo inputs | 1 Stereo /2 mono line inputs | 2 mic inputs, 3 stereo inputs |
1 Stereo /2 mono line inputs | |
| Useful DSP functions for BGM application | Priority Ducker, Leveler | ||||
| Useful DSP functions for MC application | Feedback Suppressor, HPF | ||||
| Compressor, Reverb & Echo | |||||
| Built-in stereo source EQ | |||||
| Built-in speaker EQ for Yamaha VXS/VXC Series speakers | |||||
| Output EQ | |||||
| Filters | HPF | ||||
| LPF | |||||
| Number of source & volume-controlable zone | 2 | 1 | |||
| Remote volume control from optional Yamaha DCP control panels | |||||
| Compatible DCP | DCP4V4S, DCP1V4S, DCP4S | DCP1V4S | - | ||
| Number of maximum DCP panels per unit | 2 | 1 | - | ||
Designed for Effortless Everyday Use
The MA and PA series power amplifiers offer powerful features in compact, durable metal chassis. They are designed for easy, intuitive operation that makes specialized training or audio experience unnecessary. For example, the output volume knob has been made the focus of the front panel design, enhancing day-to-day operability while minimizing the possibility of error. No special software, programming or equipment is required for installation or setup. Anyone can quickly and easily set up a system that will deliver the best possible sound for a wide range of applications.
Yamaha DSP Features for Enhanced Music and Microphone Operation
Advanced DSP features for background music and paging are efficiently packed into the remarkably compact MA and PA amplifier enclosures. There’s a Feedback Suppressor that can eliminate annoying feedback when using a microphone, a Priority Ducker that smoothly adjusts levels when input is detected at an announcement microphone, a Leveler that maintains constant overall level regardless of changes in input levels and more. The MA2120 additionally features reverb, echo and compressor processing that can be used to enhance the sound and quality of microphone input in a variety of applications.
Safe and Efficient in Any Environment
The heart of the MA and PA series is a highly efficient Class-D amplifier design that delivers ample output while consuming very little power. It also includes intelligent protection circuitry inherited from Yamaha’s flagship touring amplifier series, effectively protecting both the amplifier and connected speakers. Efficient naturally cooled designs that do not require cooling fans contribute to high reliability as well as quiet operation.
The MA2120 and PA2120 are both certified by ENERGY STAR,* the internationally recognized standard of energy efficiency accorded to environmentally friendly equipment. Both models feature an auto standby function that minimizes power consumption by automatically switching to standby mode when no audio input is detected for more than 25 minutes. Normal operation resumes as soon as audio input is detected. The energy-efficient MA/PA Series amplifiers are also certified as Yamaha Eco Products.**
* ENERGY STAR is a US Environmental Protection Agency (EPA) voluntary program that helps businesses and individuals save money and protect the climate through superior energy efficiency.
**Yamaha Eco Products are part of Yamaha’s voluntary initiative dedicated to environmentally-friendly product development.The Flexibility You Need
Supports Lo-Z and Hi-Z Speaker Systems
The MA/PA Series directly supports low impedance and high impedance speaker systems without the need for additional transformers or other hardware that can take up valuable installation space and increase costs. When used to drive a 3Ω or higher low-impedance speaker system (3Ω/4Ω/8Ω selectable) the MA2030a and PA2030a amplifiers deliver up to 30W per channel into two channels. With a high-impedance 70V or 100V line connection output is a single channel at up to 60W. Likewise, when driving a low-impedance system of 4Ω, the MA2120 and PA2120 amplifiers deliver up to 120W to each of two output channels. When driven at 3Ω/8Ω mode, these amplifiers can deliver up to 100W per channel. With a high-impedance 70V or 100V line connection, a single channel can output up to 200W, which is ideal for powering mid-size installations. In addition, since the MA/PA Series can be used with all Yamaha commercial installation speakers*, you have the choice and flexibility to design a sound system that meets your specific requirements. As indicated, for example, a single unit of MA2120 or PA2120 can support full-range speaker systems at high-impedance mode, as well as a subwoofer at low-impedance mode. With MA2030a or PA2030a which has one output channel, the similar system can be composed by combining two units of amps. * Includes the VXS series, VXC series, VS series, S series, NS-AW series and NS-IC series. The S series, NS-AW series and NS-IC series are not available in some regions.
The MA2030a and MA2120 mixing power amplifiers offer flexible connectivity for a wide range of applications. The MA2030a comes equipped with two microphone inputs (XLR combo jack and Euroblock) and three stereo inputs (RCA pin). The XLR combo jack on the front panel makes setting up for speaking engagements fast and easy. The MA2120 includes six microphone/line inputs (Euroblock) and two stereo inputs (RCA pin, stereo mini phone). All six microphone inputs feature switchable 24V phantom power. Inputs 5 and 6 can also be used as MONO SUM inputs to provide extra input capacity.
Flexible EQ Functions
The MA2030a features bass and treble stereo source EQ controls. With EQ knobs of MA2030a front panel, the low and high frequency contours of the stereo input sources can be adjusted. The source EQ also includes an enhancer function* that adds harmonics as necessary for improved sound. With MA2120, an output EQ can be set for each output channel.
In addition, all MA/PA Series amplifiers come equipped with speaker EQ that provides ideal equalization for Yamaha VXS/VXC speakers, LPF** and HPF.
*The MA2120 features the stereo source EQ with an enhancer function for Input 7 - 8, as well as the source EQ for Input 1 - 6. Also, an output EQ can be set for each output channel.
**MA2030a excluded
Build a System that Meets Your Needs
The MA/PA Series is capable of controlling input sources and volumes for two separate areas (source / volume zoning). For example, in an apparel store with the women’s section downstairs and the men’s section upstairs, or in a restaurant with dinner tables and a bar area, different background music and announcements can be delivered at different volumes to best complement the atmosphere of each environment.Because the MA2120 has two output channels, users can easily manage source/ volume zoning for two separate areas with a unit. (Please refer to System Example 4 and 5.) In addition to volume zoning, the rear-panel ROUTE switches enable input source selection for each area. Speaker output levels in both areas can also be matched via the DIP switch settings. For a larger space, PA2120 or PA2030a can be added to the system, expanding service areas with volume zoning. A MA2030a system combined with a PA2030a can cover two service areas with volume zoning. For example, as shown in the image, background music can be played inside a cafe at a low volume level while the same music plays at a moderate level for an outdoor terrace.
Remote Control from Optional DCP Series Digital Control Panel
The optional DCP control panels* allow remote volume control, microphone ON/OFF switching, and triggering the built-in chime for announcements.
* DCP4V4S, DCP1V4S and DCP4S, up to two units in total, can be connected to MA2120 and PA2120. One unit of DCP1V4S can be connected to MA2030a.
System Example 1. Classroom
This system is suitable for use in classrooms. The MA2030a is used in 4Ω mode to drive two parallel-connected VS6 surface mount speakers (8Ω each) via one channel and two parallel-connected VXC4 ceiling speakers (8Ω each) via the other channel.
System Example 2. Auditorium
This system is suitable for use in lecture halls, conference rooms. An MA2030a is used in 8Ω mode and a PA2030a is used in 4Ω mode, driving a pair of VXS5 surface mount speakers (8Ω each) and four VXC4 ceiling speakers (8Ω each) respectively. Multiple microphones can be connected to the MA2030a, and overall output level in the room can be easily controlled via the front-panel volume knob.
System Example 3. Cafe
This figure shows a system that would be ideal for a café, bar, or restaurant. Both the MA2030a and PA2030a are set to drive 70-volt lines, powering a total of sixteen VXC4 ceiling speakers in two zones via their 3.8W transformer taps. The MA2030a and PA2030a panel controls can be used for independent volume control in their respective zones, while a wall-mounted DCP1V4S control panel allows convenient adjustment of overall volume. Since the MA2030a accepts simultaneous input from audio players and microphones, this simple system can handle basic BGM for normal business as well as announcements and special events.
System Example 4. Restaurant with Bar and Terrace
This figure shows a system that would be ideal for a restaurant with a bar and terrace area. The MA2120 is set to drive 100-volt lines, powering a total of 8 VXS3FT surface mount speakers via their 3.8W transformer taps, as well as 4 VXC3F ceiling speakers. The MA2120 can deliver different sources at different volumes in the respective zone. The PA2030a at 4Ω mode Lo-Z connection drives a total of 4 VXS5 surface mount speakers in parallel, delivering the same BGM at higher level.
System Example 5. Retail Store with Two Floors
Specifications
|
MA2120 |
MA2030a |
PA2120 |
PA2030a |
||
|---|---|---|---|---|---|
| Output power | 1kHz (THD+N=1%: 3Ω) | 100W x 2 (20ms Burst) | 30W x 2 (20ms Burst) | 100W x 2 (20ms Burst) | 30W x 2 (20ms Burst) |
| 1kHz (THD+N=1%: 4Ω) | 120W x 2 (20ms Burst) | 30W x 2 (20ms Burst) | 120W x 2 (20ms Burst) | 30W x 2 (20ms Burst) | |
| 1kHz (THD+N=1%: 8Ω) | 100W x 2 (20ms Burst) | 30W x 2 (20ms Burst) | 100W x 2 (20ms Burst) | 30W x 2 (20ms Burst) | |
| High impedance: 100V line | 120W x 2 or 200W x 1 | 60W x 1 | 120W x 2 or 200W x 1 | 60W x 1 | |
| High impedance: 70V line | 120W x 2 or 200W x 1 | 60W x 1 | 120W x 2 or 200W x 1 | 60W x 1 | |
| Total harmonic distortion | ≤0.2% (Line in to Speaker out, Half power @1kHz, 3Ω/4Ω/8Ω), ≤0.2% (Line in to Speaker out, Half Power @1kHz, 70V/100V, 120W/200W) | ≤ 0.1% (Stereo in to Speaker out @1kHz, Half power, 3Ω/4Ω/8Ω), ≤ 0.2% (Stereo in to Speaker out @1kHz, Half power, 70V/100V) | ≤0.2% (Line in to Speaker out, Half power @1kHz, 3Ω/4Ω/8Ω), ≤0.2% (Line in to Speaker out, Half Power @1kHz, 70V/100V, 120W/200W) | ≤ 0.1% (Line in to Speaker out @1kHz, Half power, 3Ω/4Ω/8Ω), ≤ 0.2% (Line in to Speaker out @1kHz, Half power, 70V/100V) | |
| Frequency response | 0dB, -2.5dB, +1.0dB (Line in to Line out, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W) | 0dB, -2.5dB, +1.0dB (Stereo in to Line out, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Stereo in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Stereo in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V) | 0dB, -2.5dB, +1.0dB (Line in to THRU OUT, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W) | 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V) | |
| Crosstalk | ≤ -70dB (MIC/LINE input to other MIC/LINE input) | ≤ -70dB (Stereo in to other Stereo in) | - | - | |
| I/O Connectors | Mic/Line Input | Input 1-6: 3.5mm Euroblock (6-pin, balanced) x 3 | - | - | - |
| Line Input | Input 7-8: Stereo RCA pin (unbalanced) x 2, Input 8: 3.5mm Stereo mini phone (unbalanced), Input 5-6: RCA pin (MONO SUM, unbalanced) x 4 | - | Input A-B:MONO RCA pin x 2 (unbalanced) or 3.5mm Euro block (6-pin, balanced) | - | |
| Speaker Output | Barrier strip x 2 pairs | Barrier strip x 2 pairs | Barrier strip x 2 pairs | Barrier strip x 2 pairs | |
| Line Out | LINE OUT: MONO RCA pin x2 (unbalanced) | Stereo RCA pin (unbalanced) | THRU OUT: MONO RCA pin (unbalanced) x2 | - | |
| Control ports | RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5mm Euro block 3-pin) | RJ-45 (for DCP1V4S) | RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5mm Euro block 3-pin) | - | |
| Mic Input | - | MIC IN 1: XLR combo jack (balanced), MIC IN 2: 3.5mm Euroblock (3-pin, balanced) | - | - | |
| Stereo Input | - | ST IN 1: Stereo mini phone (3.5mm, unbalanced), ST IN 2 / ST IN 3: Stereo RCA pin (unbalanced) | - | LINE IN: Stereo RCA pin (unbalanced), 3.5mm Euroblock (3-pin, balanced) x 2 | |
| Input Level | Mic input: -56dBu (Sensitivity), -36dBu (Nominal), -8dBu (Max before clip) / Line input (unbalanced): -30dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): -24dBu (Sensitivity), -4dBu (Nominal), +24dBu (Max before clip) | Mic input: -76 dBu (Sensitivity), -66 dBu (Nominal), -22 dBu (Max before clip) / Line input: -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) | Line input (unbalanced): -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): +4dBu (Sensitivity), +4dBu (Nominal), +24dBu (Max before clip) | Line input (unbalanced): -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): +4dBu (Sensitivity), +4dBu (Nominal), +24dBu (Max before clip) | |
| Output Level | -10dBV (LINE OUT, Nominal) | -10dBV (LINE OUT, Nominal) | -10dBV (THRU OUT, Nominal) | - | |
| Processors | Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) | Speaker EQ (VXS:Full Range, VXC), HPF (150Hz) | Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) | Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) | |
| Protection circuit | Load protection | Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) | Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) | Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) | Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically) |
| Amplifier protection | Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically) | Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically) | Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically) | Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically) | |
| Power supply protection | Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Limit the output* →Power supply shutdown (*Restored automatically) | Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown | Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Limit the output* →Power supply shutdown (*Restored automatically) | Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown | |
| Amplifier class | Class D | Class D | Class D | Class D | |
| Cooling | Conventional cooling, bottom to up airflow | Conventional cooling, bottom to up airflow | Conventional cooling, bottom to up airflow | Conventional cooling, bottom to up airflow | |
| Power requirements | 100V, 120V, 230V - 240V, 50Hz / 60Hz | 100V, 120V, 230V-240V; 50Hz/60Hz | 100V, 120V, 230V - 240V, 50Hz / 60Hz | 100V, 120V, 230V-240V; 50Hz/60Hz | |
| Power consumption | 60W (1/8 max power, 4Ω, AC100V, pink noise at all channels) | 30W (1/8max. power, 3Ω, AC 100V, pink noise at all channels) | 60W (1/8 max power, 4Ω, AC100V, pink noise at all channels) | 30W (1/8max. power, 3Ω, AC 100V, pink noise at all channels) | |
| Dimensions | W | 480mm (18.9”) *1 | 215mm (8.5”) *1 | 480mm (18.9”) *1 | 215mm (8.5”) *1 |
| H | 45mm (1.8”) *1 | 54mm (2.1”) *1 | 45mm (1.8”) *1 | 54mm (2.1”) *1 | |
| D | 379mm (14.9”) *1 | 288mm (11.4”) *1 | 379mm (14.9”) *1 | 288mm (11.4”) *1 | |
| Net weight | 4.9kg (10.8lbs) | 1.8kg (4.0lbs) | 4.8kg (10.6lbs) | 1.8kg (4.0lbs) | |
| Accessories | AC power cable, 3.5mm Euroblock plug (6-pin) x 3, Euroblock pulg (3-pin) x 1, Owner's manual, Setup guide | AC power cable, 3.5mm Euroblock plug (3-pin) x 1, Owner’s manual, Specification sheet | AC power cable, 3.5mm Euroblock plug (6-pin) x 1, Euroblock pulg (3-pin) x 1, Owner's manual, Specification sheet | AC power cable, 3.5mm Euroblock plug (3-pin) x 2, Owner’s manual, Specification sheet | |
| Options | DCP4V4S, DCP1V4S, DCP4S (Digital Control Panel) | RKH1 (Rack-mount Accessory), DCP1V4S (Digital Control Panel) | DCP4V4S, DCP1V4S, DCP4S (Digital Control Panel) | RKH1 (Rack-mount Accessory) | |
| Certificate | ENERGY STAR | - | ENERGY STAR | - | |
| Others | Operating Temperature: 0°C to + 40°C, Storage Temperature: -20°C to + 60°C, Rack-mountable when ensuring sufficient ventilation above and below the unit | Operating Temperature: 0°C to + 40°C, Storage Temperature: -20°C to + 60°C, Rack-mountable when ensuring sufficient ventilation above and below the unit | Operating Temperature: 0°C to + 40°C, Storage Temperature: -20°C to + 60°C, Rack-mountable when ensuring sufficient ventilation above and below the unit | Operating Temperature: 0°C to + 40°C, Storage Temperature: -20°C to + 60°C, Rack-mountable when ensuring sufficient ventilation above and below the unit | |
- *1: MA2120 and PA2120: incl. knobs, rubber feet and rack-mounting ears / MA2030a and PA2030a : incl. knobs and rubber feet
