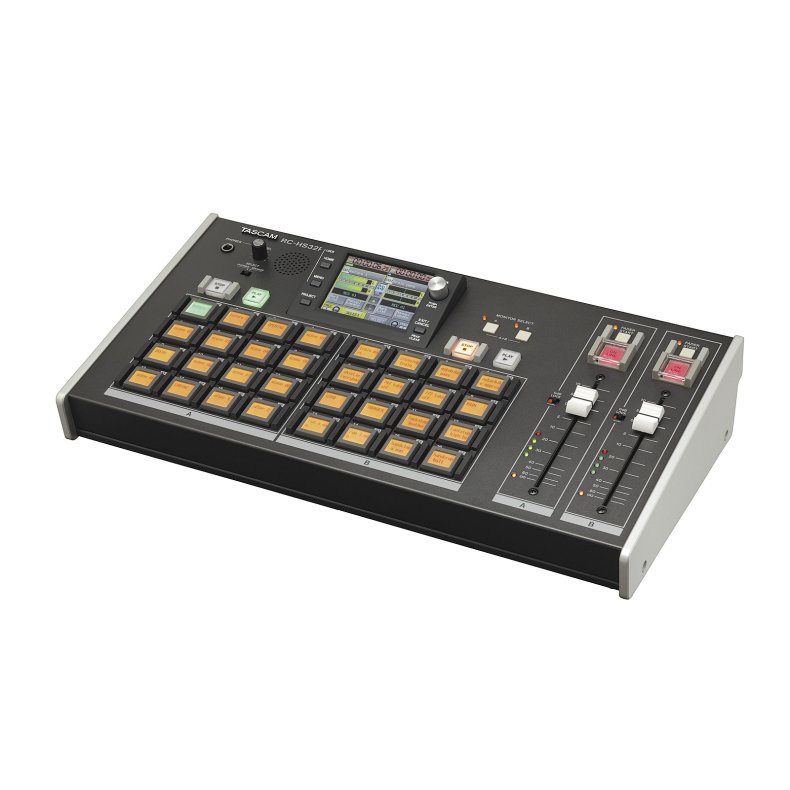

The RC-HS32PD is a remote control unit for the HS-4000 and HS-2000 broadcast recorders. It offers flash start with 32 dedicated keys and further control through a colour TFT touch screen interface that mirrors the recorder. Each key has a 64x32 dot matrix colour LCD for file name display. Two 100-mm faders include a microswitch for fader start/stop, a 0-dB level lock to help prevent overload and on-air signal indication, and a speaker and headphones output are provided for monitoring. The RC-HC32PD can be used in single or dual deck mode and connects to the recorder using CAT6 cable for long-distance runs.
Main Features
- Flash start or fader start/stop control for HS-4000 and HS-2000
- Colour TFT touch screen interface for full control of the recorder
- 32 flash start keys with 64 x 32 dot matrix colour LCD for file name display
- Single Deck mode (32 keys x 3 pages) or Dual Deck mode (16 keys x 6 pages)
- Two operation modes:
- Flash start: Press key to start playing the take immediately
- Standby: While a take is playing, press key to reserve the take as the next playback take to be started immediately after the current take is finished
- Two 100-mm faders with fader start/stop capability and 0-dB lock
- Monitor speaker and headphones output for monitoring
- CAT6 remote connection with recorder
Specifications
| Analogue audio outputs | ||
|---|---|---|
| Speaker (mono) | ||
| Maximum output power | 1 W | |
| PHONES connector | 6.3-mm standard stereo jack | |
| Maximum output power | 45 mW + 45 mW (THD+N 0.1% or less, into 32 Ω) | |
| Power supply and other specifications | ||
|---|---|---|
| Power voltage | DC 41V (provided by the main unit) | |
| Power consumption | 8 W | |
| Dimensions (W x H x D) | 429 mm x 99 mm x 232 mm | |
| Weight | 4.3 kg | |
| Operating temperature range | 5–35 °C | |
Design and specifications subject to change without notice.
