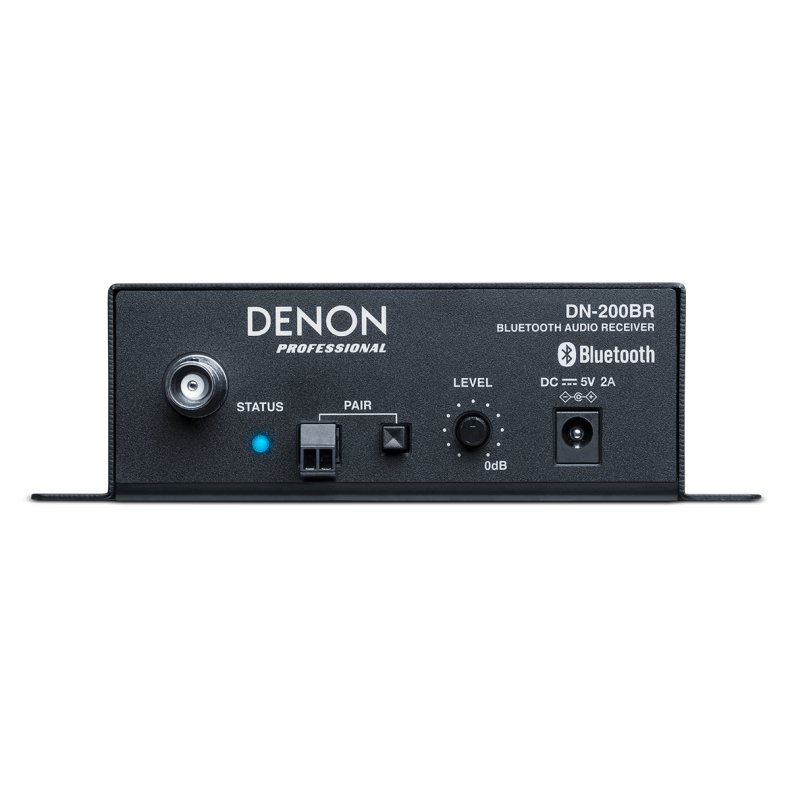

Denon DN-200BR

Stereo Bluetooth Audio Receiver

Denon Professional's Solution Series is designed to be the best friend of audio contractors. Its specialty is solving audio challenges easily and inexpensively by getting signal to someplace that would be otherwise difficult or inconvenient. Simple to install, configure and operate, the Solution Series products belong in the toolbox of every audio installer.

With countless Bluetooth-enabled audio sources roaming the planet, the DN-200BR interfaces them all with a professional audio system for sound reinforcement, special event or retail applications. It receives Bluetooth signals wirelessly, then routes the audio to balanced XLR or ¼-inch outputs for integration with mixers and amplification systems. Its Bluetooth Pairing mode ensures a secure connection.

Features:

• Adds Bluetooth to any audio system
• Balanced XLR and unbalanced 1/4-inch audio outputs
• Up to 33m (100 ft) range
• Discreet, robust build quality that can mount nearly anywhere

Technical specifications:

Audio Specification

• Frequency response: 20 Hz – 20 KHz (+1 dBu)
• Signal-to-Noise Ratio: > 75 dB
• THD: < 0.01%

Bluetooth Specifications

• Version: 2.1 + Enhanced Data Rate (EDR)
• Maximum Receiver Power: Class 2, 4 dBm
• Receiver Frequency: 2.4 GHz – 2.480 GHz
• Receiver Range: Up to 82 ft. / 25 m
• Receiver Sensitivity: -80 dBm @ 0.1% BER
• Supported Codec: SBC, MP3, AAC, aptX
• Supported Profiles
  • AVCTP 1.0, AVRCP 1.0, GAVDP 1.2, AVDTP 1.0, A2DP 1.2, Hands-Free Profile (HFP) 1.5, Headset Profile (HSP) 1.1

Analog Output

• Balanced (XLR): +4 dBu (+1 dB)
• Unbalanced (1/4” / 6.35mm): -2 dBu (+1 dB)

Environmental

• Operation Temperature: 41–95°F / 5–35°C

General

• Power Adapter: 5 V DC, 3 A, center-positive
• Input Voltage: 100–240 V AC, 50/60 Hz
• Dimensions (width x depth x height): 5.8” x 4.6” x 1.8” (149 x 117 x 45 mm)
• Weight: 1.3 lbs. (0.6kg)

In the box:

• DN-200BR
• Power adapter
• User guide
• Safety and warranty manual
