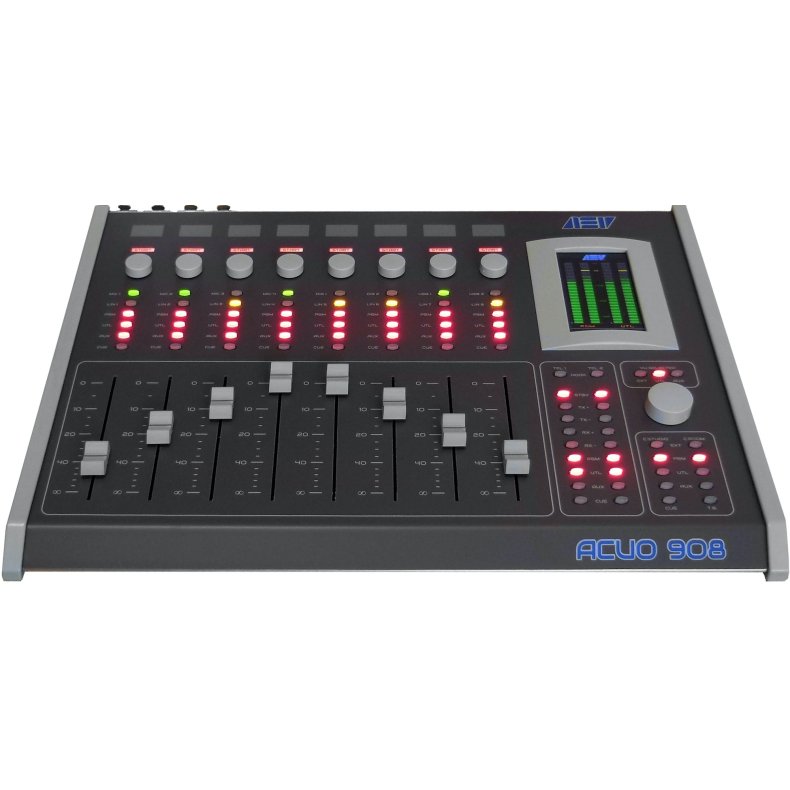

AEV Acuo 908 broadcast mixing console

ACUO 908 the new series for the On Air broadcast consoles !
A modern, compact design, in line with the latest trends in design, together with a careful and ergonomic study make it the new benchmark in the industry with an incomparable versatility, it can be used easily even in the case of outdoor operation
ACUO908 with eight double switchable channels, designed specifically for broadcast applications.and it's provided with AEV's internal telephone hybrids or connected to any other external: this makes it a perfect and complete console for Radio Stations.

General overview:
- All Balanced inputs and outputs
- Eigth double channel inputs Mixer
- A/B input control
- 100 mm ALPS Sliders with Digital VCA control
- Four balanced mono Microphone input with phantom power with XLR connectors
- Eigth balanced stereo lines with RJ-45 connectors
- Two Digital AES/EBU input
- Digital Three band tone control all input channels
- TwoTelephone opto-coupled hybrid internally integrated with tone control
- Meeting function on telephone hybrid (PGM, UTL, AUX and CUE)
- CUE Bus
- Three independent Balanced Analog Stereo Outputs (PGM, UTL and AUX)
- Two independent Digital AES/EBU Outputs (PGM and UTL )
- Control Room and Studio functions with monitor mode selector
- Control Room out with mute logic
- Internal USB Audio Board for extra versatility connection
- Output opto-coupled ON AIR command
- Totally shielded bus
- Digital TFT display 4,3" for monitoring & setup functions , Digital stereo led meters: PGM& CUE
- Tabletop mount or rackmountable 19"

Cable package included:

5    RJ45-XLR M
6    RJ45-XLR F
4    RJ45-RCA F
2    USB
2    Telephone Cable
1    PWS
1    connector DB25 for GPIO port
