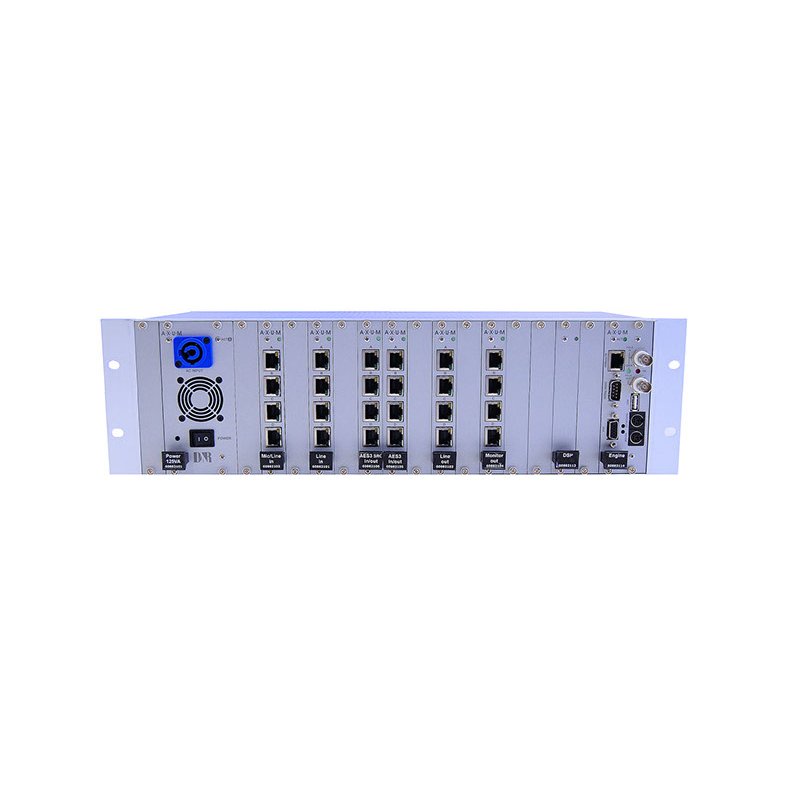

D&R Axite Rack One
Processing rack for I/O cards
RACK ONE (3HE) can accept 21 one slot cards. There are 16 available slots for I/O cards (5 are used for POWER and Engine card)
Weight is 4.6 kg with an 80% card fill.
In/output connectors
The huge amount of in- and outputs per card could not be designed with a dedicated (jack/Cinch/XLR connector in the space available on the front of the card.
By using standard STP cables in every input and output module a compact and neat cabling can be achieved. Due to standardization, changes in wiring can be achieved very easily without the need for soldering.
These low cost Cat-5 cables are ready made available from us or from your nearest computer store starting at lengths of 30cm up to 20 meters.
If you need to connect a MICROPHONE to the AXUM take our 19” part number 60882045 break out panel.
Mount it in your studio rack, hook up a shielded RJ45 (STP) cable between the AXUM and this Mic input panel and you're ready.
This also includes the remote wiring! No need to buy twice the amount of expensive XLR’s.
We have five types of patch panels available to choose from, see below.
