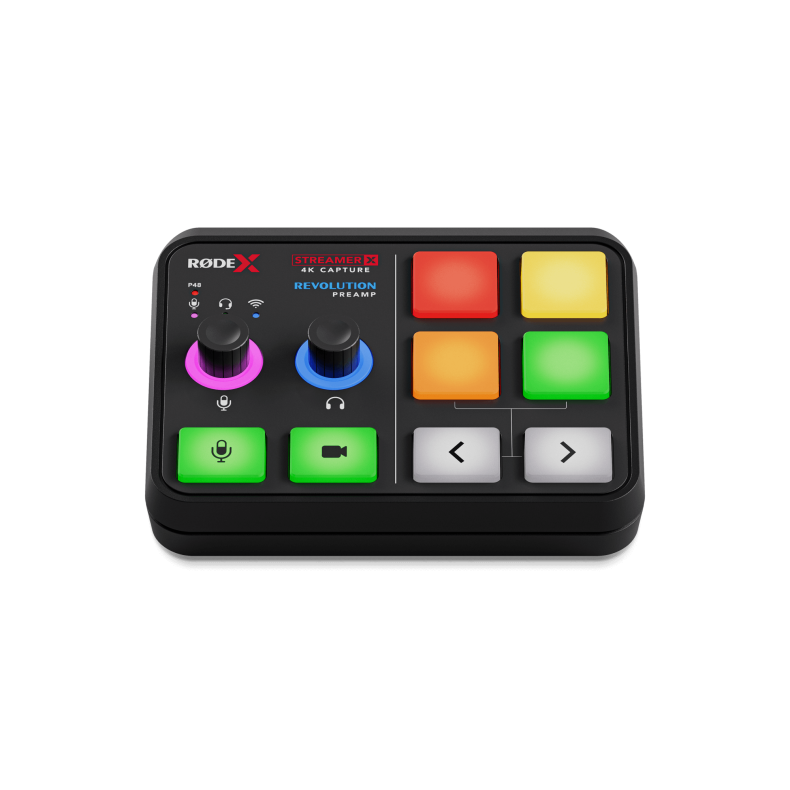

Røde Streamer X
Audio Interface and Video Capture Card
The Røde Streamer X is a professional video capture card, audio interface and control surface integrated in one compact device that makes creating incredible content incredibly easy. It features studio-grade audio inputs for XLR microphones and instruments, headsets and RØDE wireless microphones, with an ultra-low-noise, high-gain Revolution Preamp™ and powerful APHEX® audio processing delivering pristine sound quality. HDMI connections offer up to 4K30 streaming and 4K60 pass-through for incredible video quality in a wide range of applications, from streaming and gaming, to podcasting and content creation, to business presentations. Dual USB-C connections seamlessly accommodate dual PC setups, and four fully customisable SMART pads allow for on-the-fly triggering of sound or voice FX and other actions on a computer. The ultimate all-in-one streaming solution.
Key Features:
- Professional audio interface, video capture card and control surface integrated in one compact, easy-to-use device
- Up to 4K30 video capture and 4K60 pass-through via HDMI
- Variable Refresh Rate (VRR) support
- Neutrik® combo jack for connecting XLR microphones or instruments, with an ultra-low-noise, high-gain Revolution Preamp™ for pristine audio quality
- 3.5mm TRRS input for connecting headsets and 1/4-inch headphone output for zero-latency monitoring
- Integrated wireless receiver for connecting RØDE Series IV wireless microphones, including the Wireless GO II and Wireless ME
- Internal DSP for advanced audio processing powered by APHEX®
- Four fully customisable SMART pads for triggering sounds, voice effects and MIDI commands
- Dual USB-C interfaces for connecting to two computers or mobile devices
- Easy configuration and control via RØDE Central desktop companion app
- Compatible with free UNIFY streaming software for advanced audio routing, mixing and configuration
- Designed and made in RØDE’s precision manufacturing facilities in Sydney, Australia
Specifications
Video Input Connectors
1x HDMI Type A 2.0
Video Passthrough Output
1x HDMI Type A 2.0
Max Input Resolutions (HDMI In)
4Kp60 HDR
1440p144 HDR
1080p240 HDR
Variable Refresh Rate Support (VRR)
Yes
Max Capture Resolutions
4Kp30
1440p60
1080p120
1080p60 HDR
Audio Input Connectors
1x XLR Combo Jack (Mic/Instrument)
1x Wireless Receiver
1x Input HDMI
Audio Output Connectors
1x 3.5 TRRS Headset Jack (I/O)
1x ¼" Headphone Jack
Input Dynamic Range
113dB
Preamp Noise
-131.5dBV (A-weighted)
Frequency Range
Microphone Inputs: 20Hz-20kHz
Headphone Output: 20Hz-20kHz
Microphone Input Impedance (Ω)
4KΩ
Instrument Input Impedance (Ω)
1MΩ
Preamplifier Gain Range
0-76dB
Phantom Power
Yes
Direct Monitor
Yes
Headphone Output Power
125mW per channel
Internal Storage (GB)
2GB (SMART Pads)
Power Requirements
Via USB: 5V @ 3A
