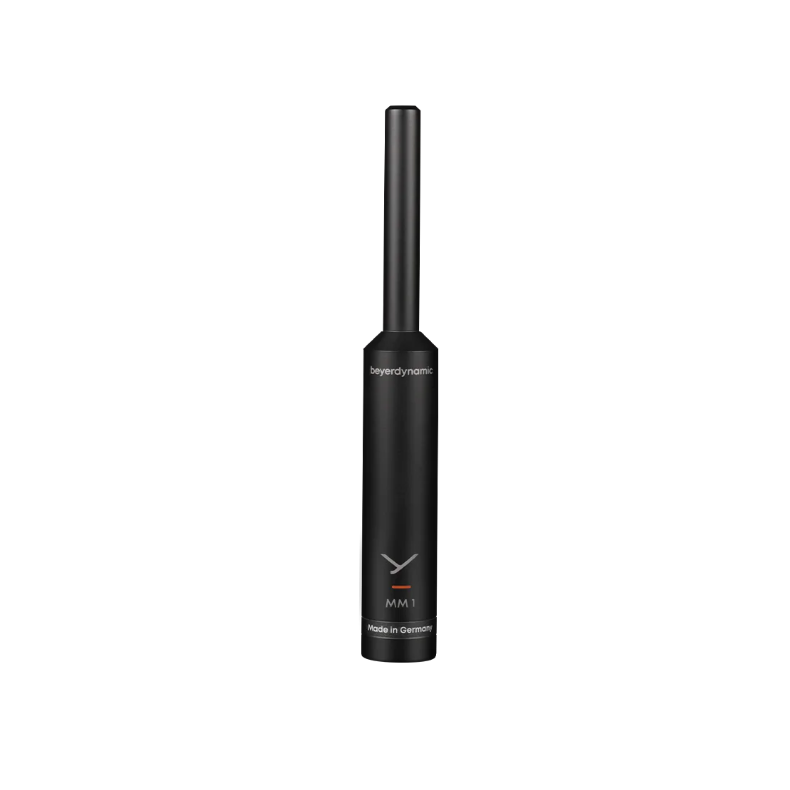

Beyerdynamic MM1-calibration of sound systems and for the measurement of sound pressure levels and frequency curves

Condenser measurement microphone (omnidirectional)

• Ideal for measuring the acoustics of various surroundings
• Linear frequency response at 90° (diffuse field calibrated)
• Individual calibration data available for 0° and 90° free-field measurement
• Slimline housing for minimised effect on the acoustic surroundings
• Handmade in Germany

MM 1
MEASUREMENT MICROPHONE

The MM 1 measurement microphone can be used anywhere that requires precise results. Featuring an omnidirectional polar pattern, this microphone is ideal for measuring studio spaces, PA systems and sound reinforcement systems. When used in combination with a spectrum analyser, it can monitor not only frequency response measurements, but also the sound pressure level of speakers. The MM 1 also provides a valuable service when it comes to measuring audio signals for research, development, and industry.

STRICTLY ACCURATE

The MM 1 boasts impressively high measurement precision – both live and in the studio. We manufacture these microphones within an extremely narrow tolerance with a deviation of +/- 1.5 dB between 50 Hz and 16 kHz. This is made possible by our specialists checking the frequency response of each individual microphone by hand.

IT’S WHAT’S INSIDE
THAT COUNTS

A high-quality back electret condenser capsule serves as pressure receiver in the MM 1. The microphone is diffuse field calibrated and demonstrates a linear frequency response at 90°. This makes it easy to measure studio spaces, for example, without the need for too much preparation.

AN UNCONVENTIONAL
ALTERNATIVE

The MM 1 is anything but a one trick pony. It delivers good results as an unconventional alternative for instrument recordings – perfect for spontaneously recording song ideas.

FORM FOLLOWS FUNCTION
The MM 1’s shape was designed to deliver exact measurement results. Thanks to the narrow solid metal housing with recessed microphone capsule, the construction has very little impact on the sound field. This means that an increase in sound pressure at high frequencies can be largely avoided. The lightweight, compact microphone is also easy to position. This classic microphone now comes safely stored in a sturdy hard case.

INDIVIDUAL CALIBRATION DATA
As with all microphones in the M series, the MM 1 is measured at the end of the production process. In addition, upon request we will provide the individual calibration data for 0° and 90° free-field measurement via E-Mail.

DURABLE MATERIALS

Our microphones are designed for daily use in professional conditions, which is why only durable materials are used in their construction. If the microphone nevertheless gets damaged, our service policy means that we can replace almost every part.

WHAT'S IN THE BOX

TECHNICAL DATA

TRANSDUCER TYPE

Condenser

POLAR PATTERN

Omnidirectional

ARTICLE NO.

730289

EAN

4010118730283

MICROPHONE FREQUENCY RESPONSE

20 - 20.000 Hz

CONNECTION TYPE

XLR 3-pin
