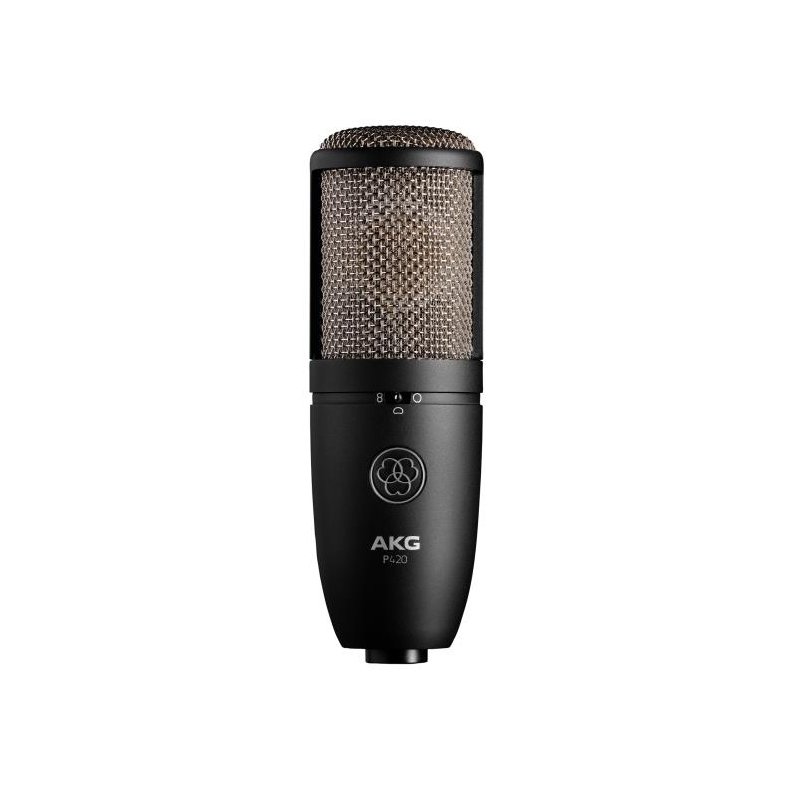

AKG P420

PROFESSIONAL PROJECTS
For project studios and stage
The AKG P420 is a multi-pattern large diaphragm true condenser microphone for demanding project studio recording applications. Offering high sensitivity and 155dB maximum SPL, the AKG P420 delivers a warm, transparent sound quality perfectly suited for ensemble recording, grand piano, woodwind and brass instruments, as well as drums and percussion. With three selectable polar patterns - cardioid, omnidirectional or figure 8 - it is an ideal tool for stereo miking techniques and ambient recording.

One-inch dual-diaphragm microphone with three selectable polar patterns
for the perfect setting

Low noise electronics
for high dynamic range

Switchable attenuation pad
for high SPL applications up to 155 dB SPL

Technical Specification

General

• Audio frequency bandwidth: 20 to 20000 Hz
• Equivalent noise level: 15 dB-A
• Sensitivity: 28 mV/Pa
• Signal to Noise: 79 dB-A
• Preattenuation Pad: -20 dB
• Bass cut filter: 300 - 12 dB/octave Hz
• Electrical impedance: <= 200 Ohm
• Recommended load impedance: >= 1000 Ohm

Polar Patterns
Cardioid
Omnidirectional
Figure of eight

Powering Interface
Voltage: 44 to 52 V
Current: <= 3 mA

Audio Output
Type: Balanced XLR
Gender: Male
Contacts: 3-pin

Dimensions / Weight
Length: 165 mm
Diameter: 54 mm
Net Weight: 530 g
