Microtech gefell UM930 twin Studio Microphone
The Microtech Gefell UM 930 twin switchable pattern studio condenser microphone combines modern large diaphragm capsule technology with the latest in semiconductor circuit topology. The optimized dual-capsule assembly opens up new applications in recording techniques. In addition to conventional switched patterns, two different directional patterns can be selected at the same time.
The Microtech Gefell UM 930 twin is specifically designed to meet the needs of professional and semi-professional users who demand the highest performance. This microphone is ideally suited for universal miking applications in broadcast and sound studios. Applications include vocalists, announcers, dialog pickup and as spot microphones for recording guitars, keyboards, percussion, wind and string instruments.
- condenser microphone
- omni-directional, widecardioid, cardioid, supercardioid, figure of 8
- large diaphragm capsule
- PE diaphragm
- transistor pre-amplifier
- phantom powering P48
product contents

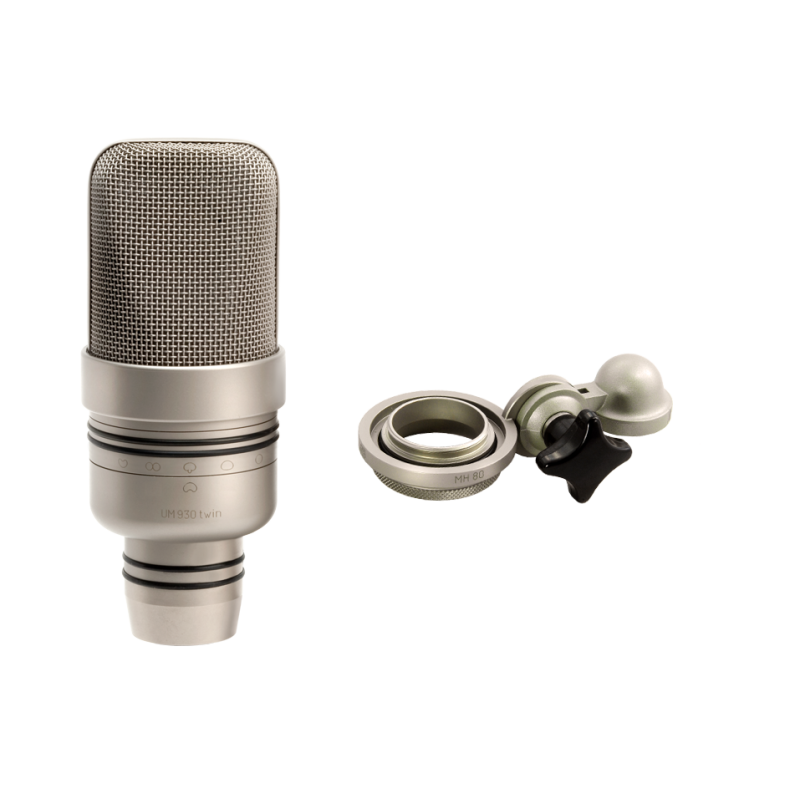

with microphone holder MH 80, microphone connection cable C 93.01, in wooden case 250 mm x 175 mm x 110 mm
technical data
Polar pattern | omni, wide cardioid, cardioid, super cardioid, figure of 8 | |
Acoustic operating principle | pressure gradient transducer | |
Frequency range | 20 Hz to 20.000 Hz | |
Sensitivity at 1 kHz | 20 mV/PA | |
Output impedance | 100 Ohm | |
Noise level | CCIR 468-4 | 13 dB |
DIN EN 60268-4 | 7 dB-A | |
Signal-to-noise ratio | CCIR weighted | 81 dB |
A-weighted | 87 dB | |
SPL for THD 0,5 % | 142 dB | |
Dynamic range | 135 dB | |
Current consumption | 4,5 mA | |
Output connector | XLR5M | |
Weight | 650 g | |
Length | 158 mm | |
Diameter | 65 mm | |
Surface | satin nickel |
frequency curves
UM 930 twin omni
UM 930 twin widecardioid
UM 930 twin cardioid
UM 930 twin supercardioid
UM 930 twin figure of 8
polar diagram
UM 930 twin omni
UM 930 twin widecardioid
