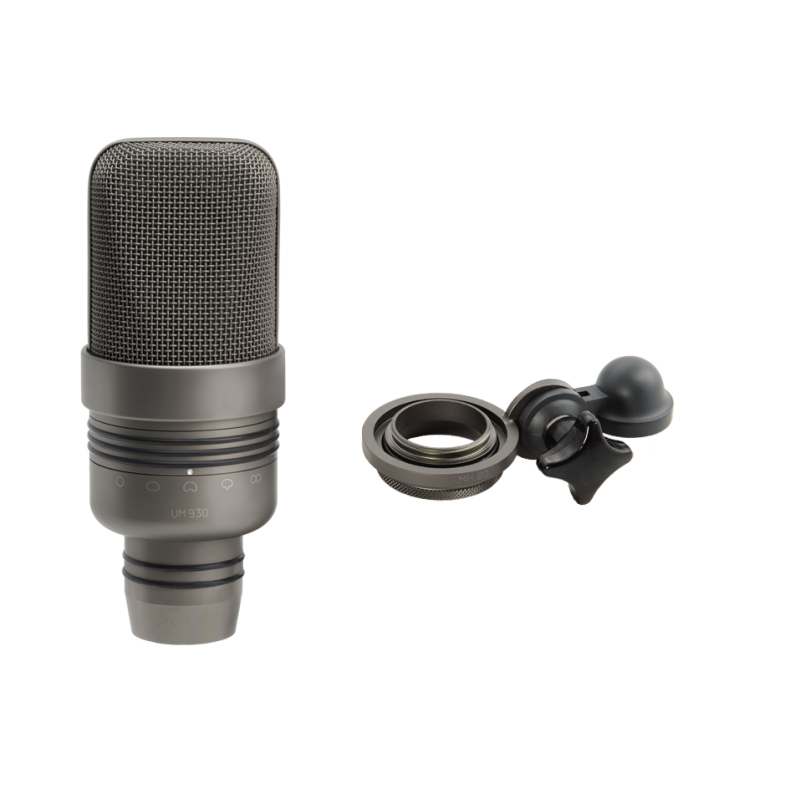

Microtech Gefell UM930 Studio condenser microphone, dark bronze, with MH80

Microtech Gefell UM930 Studio condenser microphone, dark bronze, with MH80

4.195,00 EUR

Modell/Artikelnr.: MG-2111115
Lagerstatus: Versand innerhalb 10-21 Werktagen
Stück

Microtech Gefell UM930 Studio condenser microphone, dark bronze, with MH80



  • condenser microphone
  • omni-directional, widecardioid, cardioid, supercardioid, figure of 8
  • large diaphragm capsule
  • PE diaphragm
  • transistor pre-amplifier
  • phantom powering P48

specification



The UM 930 switchable pattern studio condenser microphone combines modern large diaphragm capsule technology with the latest in semiconductor circuit topology. The optimized dual-capsule assembly opens up new applications in recording techniques. Among conventional switching technique there is the possibility of attaching a twin-Version, i.e. microphones can be used with two directional pattern at the same time.

The UM 930 is specifically designed to meet the needs of professional and semi-professional users who demand the highest performance. This microphone is ideally suited for universal miking applications in broadcast and sound studios. Applications include vocalists, announcers, dialog pickup and as spot microphones for recording guitars, keyboards, percussion, wind and string instruments.

technical data

Polar pattern omni, widecardioid, cardioid, supercardioid, figure of 8
Acoustic operating principle pressure gradient transducer
Frequency range 20 Hz to 20.000 Hz
Sensitivity at 1 kHz 20 mV/PA
Output impedance 100 Ohm
Noise level CCIR 468-4 13 dB
DIN EN 60268-4 7 dB-A
Signal-to-noise ratio CCIR weighted 81 dB
A-weighted 87 dB
SPL for THD 0,5 % 142 dB
Dynamic range 135 dB
Current consumption 4,5 mA
Output connector   XLR3M
Weight 650 g
Length 158 mm
Diameter 65 mm
Surface satin nickel, dark bronze



For more information please read the brochure.



Titel Sorte Größe Herunterladen
MG-UM-930-1.pdf PDF 5.87MB Herunterladen
