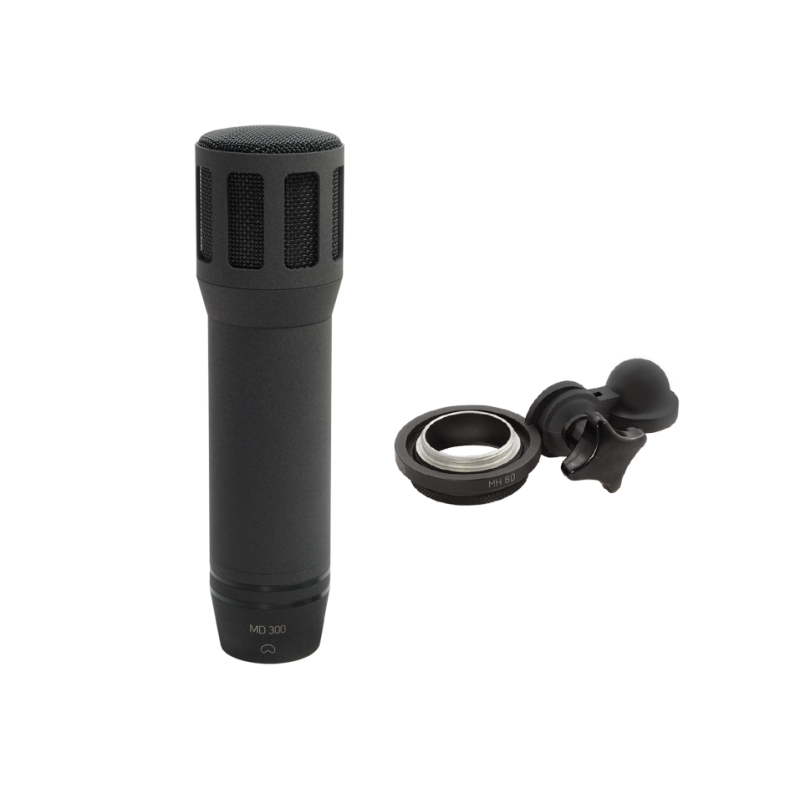

Microtech Gefell MD300 Dynamic microphone, black matt, with MH80
- dynamic microphone
- cardioid
- moving-coil capsule
- PE diaphragm
- electrodynamic transducer
specification
The MD 300 is a high-quality dynamic microphone with a frequency response of the transmission factor that has been optimized for intelligibility. It is featured with an especially accurate resolution at high frequencies and a well-balanced low-frequency transmission. It is insensitive to movements of the recorded sound source thanks to the cardioid polar pattern. The MD300 is useful as close-talking microphone for announcers of broadcasting services as well as for high-quality recordings of vocalists and instrumental soloists during live performances.
The frequency response has been optimized for low recording distances with an accentuation of approximately 2 dB between 2 kHz and 8 kHz to raise the speech and high-frequency presence. The change of the low end frequency response caused by the proximity effect is well-balanced without a very strong overemphasis at small microphone distances.
technical data
| Polar pattern | cardioid | |
| Acoustic operating principle | pressure gradient transducer | |
| Electric operating principle | moving - coil principle | |
| Frequency range | 50 Hz to 16.000 Hz | |
| Sensitivity at 1 kHz | 1,6 mV/A | |
| Output impedance | 220 Ohm | |
| Load impedance | ≥ 1 kOhm | |
| Magnet field disturbing factor at 50 Hz | ≤ 1 V/T | |
| Output connector | XLR3M | |
| Weight | 330 g | |
| Length | 173 mm | |
| Diameter | capsule | 47 mm |
| preamplifier | 40 mm | |
| Surface | NEXTEL® S 139 | |
frequency curves
MD 300 cardioid
polar diagrams
MD 300 cardioid
| Titel | Sorte | Größe | Herunterladen |
|---|---|---|---|
| MG-M300-brochure-1.pdf | 186.56KB | Herunterladen |
