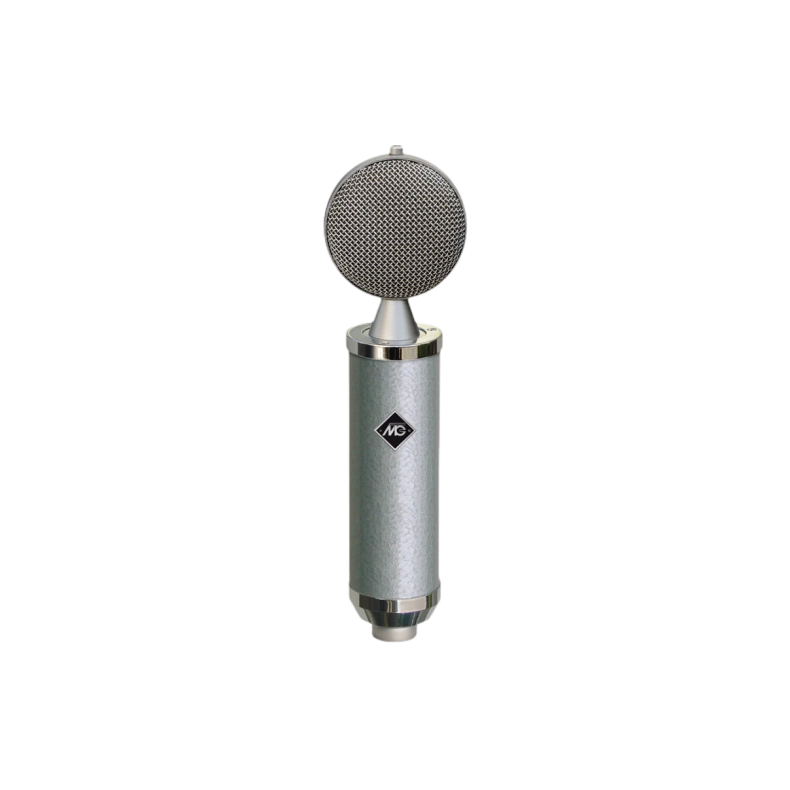

The CMV 563 - M 7 S is the original reissue of the vintage Gefell CMV 563. It has the typical warm, full-bodied sound of valve microphones that are preferred by vocalists and soloists.
The vacuum tube pre-amplifier is equipped with the EF 86 pentode working as a triode selected for its sonic characteristics. The new N 61 power supply provides the operating voltage for the vacuum tube. It can be powered from AC mains with a primary voltage of 115 or 230 volts / 50 or 60 Hz. The N 61 is equipped with an on/off switch, a 7-pin Tuchel connector that powers the microphone and a 3-pin XLR connector.
The CMV 563 - M 7 S is packed in an aluminium suitcase and comes with power supply N 61, connection cable C 563.1, elastic suspension EA 92 and G/B adapter for the use of vintage bayonet M 7, M 8, M 9 capsules.
| Polar pattern | Cardioid | |
| Acoustic operating principle | Pressure gradient transducer | |
| Frequency range | 20 Hz to 20,000 Hz | |
| Sensitivity at 1 kHz | 17 mV/Pa | |
| Output impedance | 200 Ohm | |
| Noise level | CCIR 468-4 | 24 dB |
| DIN EN 60268-4 | 16 dB-A | |
| Signal-to-noise ratio | CCIR weighted | 70 dB |
| A-weighted | 78 dB-A | |
| SPL for THD 0,5 % | 115 dB | |
| Dynamic range | 99 dB | |
| DC power supply | 120 V - | |
| Anode current | 1 mA - | |
| Heater voltage | 5,8 V - | |
| Heater current | 200 mA - | |
| Tube (low-noise) | EF 86 | |
| Output connector | microphone | 7-pin Tuchel |
| power supply | XLR3M | |
| Weight | 540 g | |
| Length | 216 mm | |
| Diameter | 42 mm | |
| Titel | Sorte | Größe | Herunterladen |
|---|---|---|---|
| MG-CMV563-M7s-brochure.pdf | 2.44MB | Herunterladen |
