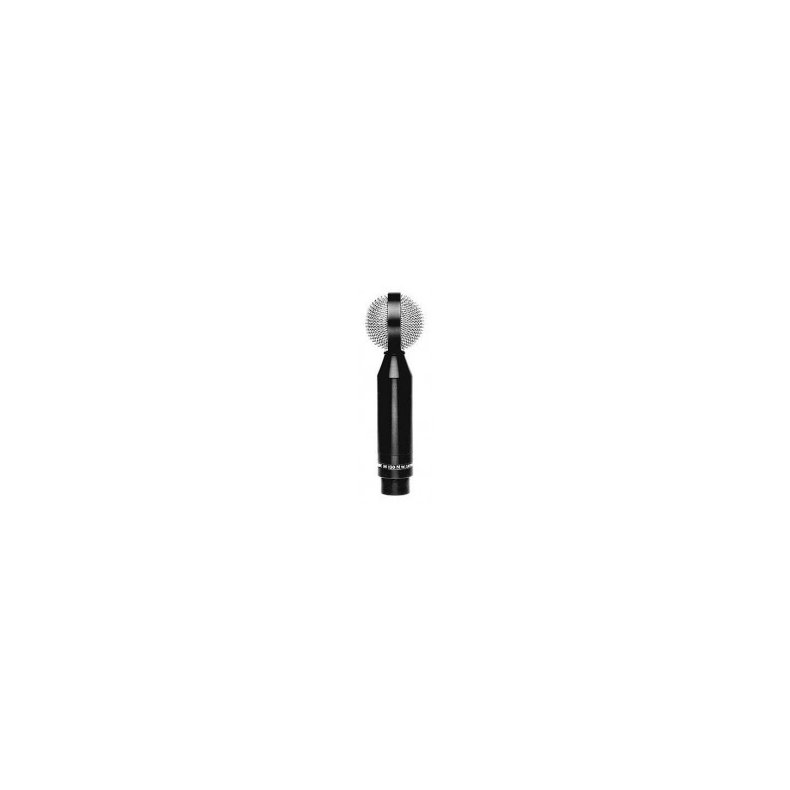

Beyerdynamic M 130 Double ribbon microphone (figure of eight)
Studio recordings
Instruments
Overhead
Ambience recordings
MS (together with the M 160) and Blumlein recordings
beyerdynamic is one of few microphone manufacturers world-wide that still produce ribbon microphones. One of them is the legendary M 130. The M 130's unique double ribbon element has a superb transient response, creating a highly detailed sound with unequalled accuracy and transparency. The bidirectional figure eight polar pattern effectively suppresses unwanted interference from the sides. The M 130's balanced, uncoloured sound handles a wide variety of applications. In conjunction with the hypercardioid M 160, the M 130 is ideal for creating an authentic stereo image through the use of the MS- (Mid-Side) technique.
The M 130 gives excellent results when the Mid-Side technique is used to record or broadcast a true stereo image. Its rugged Design handles the demands of remote recording/broadcast sessions as easily as those of the studio. Alone, the M 130 allows the recording of background audience noise and concert hall 'ambience' without unwanted resonances. In the recording studio it is effective with backing vocal groups, percussion and mounted toms. The M 130's crisply articulated, uncoloured sound is well suited to such demanding audiophile applications as digital and direct-to-disc recording.
Features
Double ribbon microphone
Consistent figure-eight polar pattern throughout frequency response
Superb transient response
Compact and rugged design
Characteristically warm and natural sound
Technical data
Price category Professional
Transducer typeThe transducer system is designed as a dynamic moving coil microphone, as a ribbon microphone or as a condenser microphone. Ribbon (dynamic)
Polar pattern microphone Figure of eight
Microphone frequency response 40 - 18,000 Hz
Dimensions Length: 128 mm; Shaft diameter: 23 mm; Head diameter: 38.5 mm
Net weight without packaging 213 g
