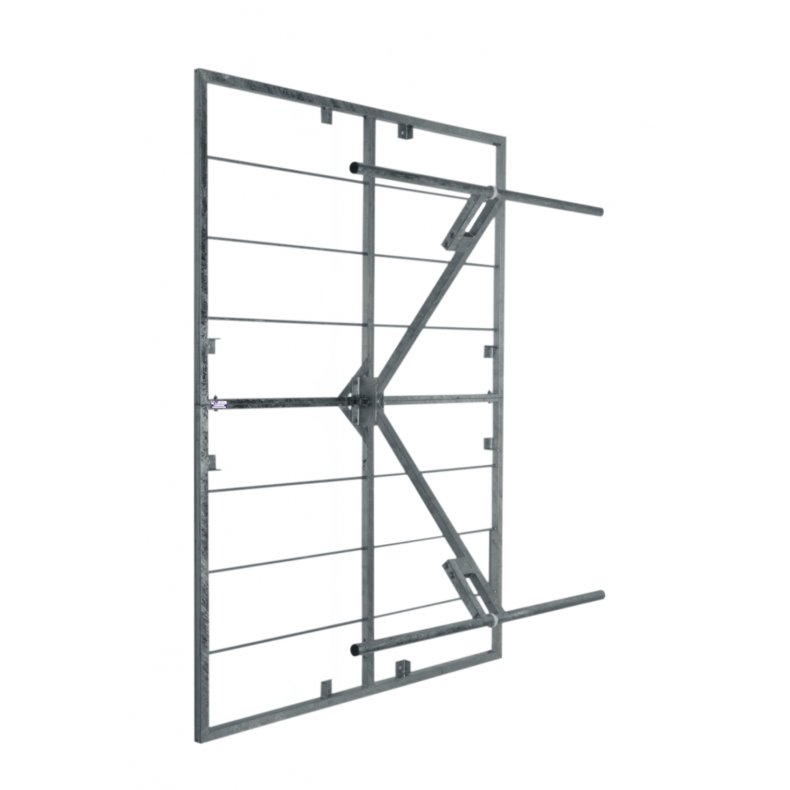

EuroCaster AKK/2F Double Dipole Wide Band FM Panel Antenna Stainless Steel 5kW

1.080,00 EUR

Modell/Artikelnr.: LI-AKK/2F

Lagerstatus: Versand innerhalb 7-14 Werktagen

Stück

EuroCaster AKK/2F

This wide band FM Panel Antenna is particularly recommended for high power transmitters, available for vertical or horizontal polarization. Strong FM panel antenna composed of stainless steel double dipole and hot dipped steel reflector, PTFE insulator and stainless steel clamps and screws. These panels mounted on 4 sides of a tower realize an omnidirectional radiation diagram. To facilitate the transport the reflector is splitted in two parts.

Freq. Range: 87.5 – 108 Mhz

Impedance: 50 Ohm

V.S.W.R.: < 1.2:1

Gain: 7.5dBd

Connector: 7/8

Max Power: 5 kW

Polarization: Vertical or Horizontal

Weight: 46 kg

Dimensions: 248 x 174 x 78 cm

Material: Stainless Steel
