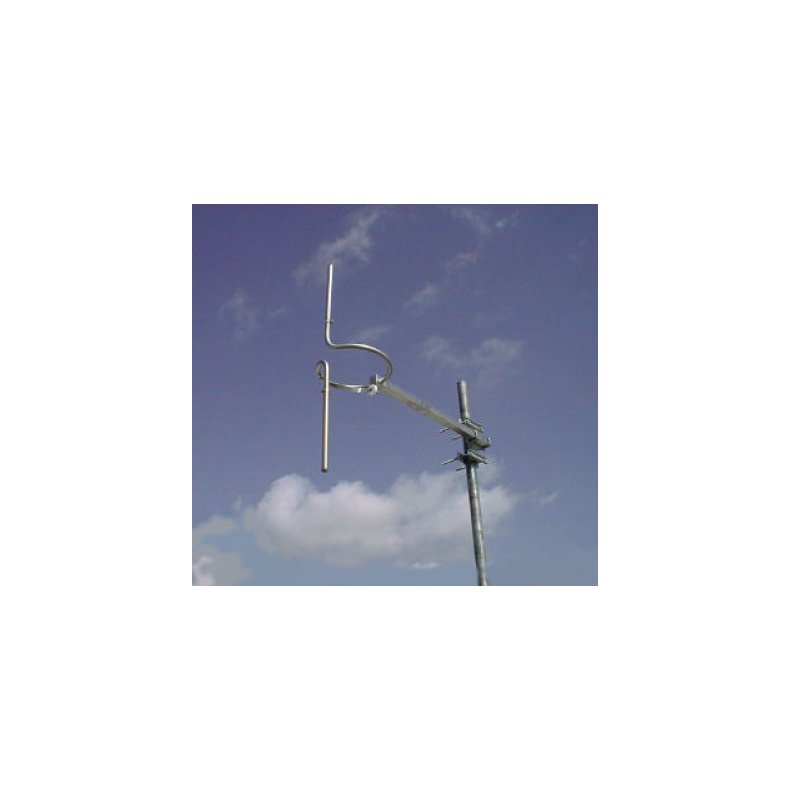

RVR ACP0 FM Antenna Circular 800W -3,4 dB, tuned
  • RVR ACP0 FM Antenna Circular 800W -3,4 dB, tuned
  • RVR ACP0 FM Antenna Circular 800W -3,4 dB, tuned
  • RVR ACP0 FM Antenna Circular 800W -3,4 dB, tuned

RVR ACP0 FM Antenna Circular 800W -3,4 dB, tuned

420,00 EUR

Modell/Artikelnr.: RV-ACP0
Lagerstatus: Lagernd! Versand innerhalb 1-3 Werktagen
Stück
In Stainless steel.

Data - each antenna:
IFrequency range 87.5÷108 MHz
mpedance 50 Ohm
Connectors N female
Max Power 800W (N female)
Polarization Right circular
Gain -3.4 dB
Pattern
Omnidirectional ± 1.5 dB in free space
Omnidirectional ± 3 dB with 100 mm
dia. pole
Lightning protection All metal parts DC grounded
Dimensions 1000x300x800 mm
Net Weight 3 Kg without clamp
5.5 Kg with clamp
Wind surface 0.036 m2
Wind load 6 kg (wind speed at 160 km/h)
Max wind velocity 220 km/h.
Materials External parts: stainless steel
Internal parts: silver plated brass
Mounting With special pipe clamps 50 ÷ 110 mm dia.
Titel Sorte Größe Herunterladen
acp0.pdf PDF 69.15KB Herunterladen
