AEV Octopus ST- split Stereo audio balanced switcher

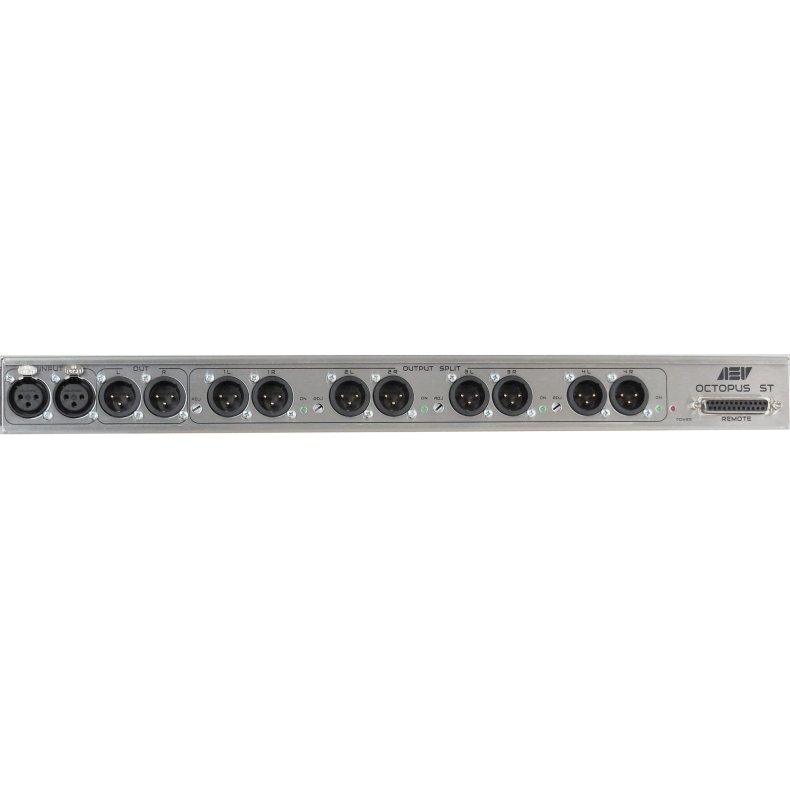

AEV OCTOPUS ST is a high quality audio distributor equipped with:

– One main balanced stereo input (MAIN)
– A balanced stereo Main Expander output which can be used to expand the main MAIN signal)
– Four or eight adjustable balanced stereo outputs
The reversible rack mounting allows you to adapt the fixing according to the assigned position inside the rack.

The outputs gain may be varied with a potentiometer, and a led display the status of each output ( Main or Sub inputs).

The AEV OCTOPUS ST SPLIT has one stereo balanced line input, five stereo balanced outputs; the XLR-3 input and outputs are electronically balanced each output is individually buffered so that a short circuit on one won’t affect the others.

OCTOPUS ST SPLIT can accept external controls normally off or normally on, steady or pulse; the inputs are opto-insulated and the configuration can be carried out with its panel.

OCTOPUS ST SPLIT supplies an opto-insulated output control which relays the status of the internal audio switcher.

The status of the output opto-coupler can be programmed, it can be normally on, off, steady or pulse.

OCTOPUS ST SPLIT is equipped with by-pass relay to ensure in any case the passage of the main signal in the face of power failure.

Technical details

Inputs
Input configuration Electronically balanced
Input Impedance 10 K Ω (600 Ω wired selectable)
Input Max Level +10 dBm
Connector XLR

Outputs
Output configuration Electronically balanced 50 Ω
Output Impedance 50 Ω
Output Level Range -6 ÷ +6 dBu
Connector XLR

General details
Stereo Separation degradation < 1 dB
Distortion @ 1 KHz < 0.01%
Signal to noise ratio < 85 dB (CCIR)
Power requirement 90 – 264 V ~ 50 – 60 Hz
Consumption 4 W
Power supply max power 8 W
Dimension (WxHxD) 48,3 x 19,4 x 4,4 cm 1 rack unit
Weight 2,5 Kg. (5.5 Lbs)
Operating Temp. 0 ÷ 50° C.
