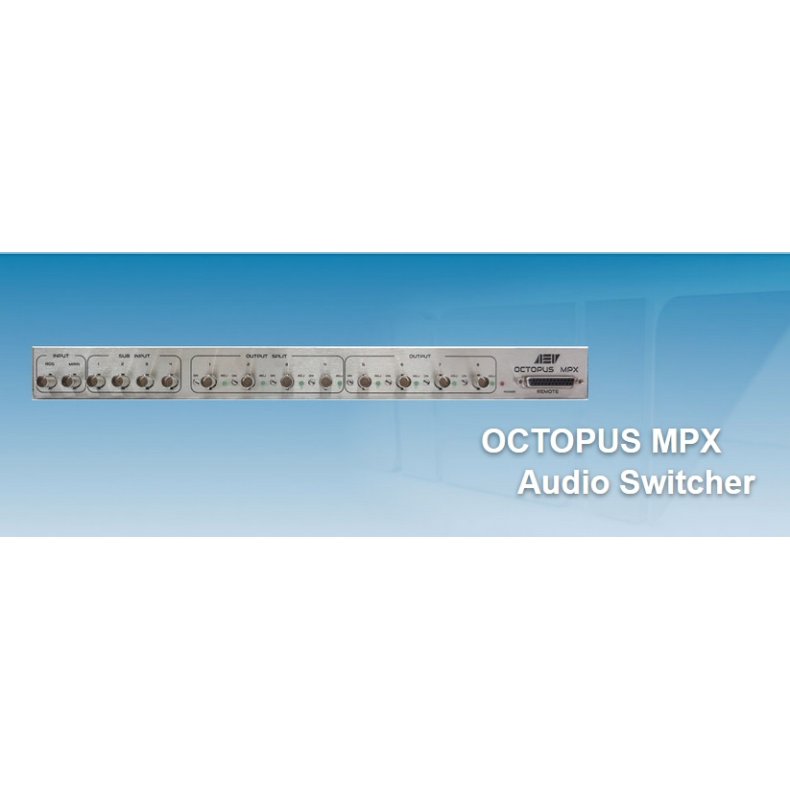

OCTPUS MPX - Broadcast Switcher 4 way

AUDIO MPX SWITCHER

OCTPUS MPX SPLIT is 1U rack-mount 19? high quality audio MPX switcher equipped with one Main input, four Sub inputs and four outputs.

Use AEV OCTPUS MPX SPLIT for switching from the Main source to four several secondary sources.

You can connect several OCTPUS MPX SPLIT units in cascade mode using the Main expander output of each unit.

The outputs gain may be varied with a potentiometer, each output is adjustable with a potentiometer and a led display the status of the outputs ( Main or Sub inputs).

The AEV OCTPUS MPX SPLIT has one MPX input, five MPX outputs; the input and outputs are electronically balanced each output is individually buffered so that a short circuit on one won?t affect the others.

AEV OCTPUS MPX SPLIT can accept external controls normally off or normally on, steady or pulse; the inputs are opto-insulated and the configuration can be carried out with its panel.

AEV OCTPUS MPX SPLIT supplies an opto-insulated output control which relays the status of the internal audio switcher.

The status of the output opto-coupler can be programmed, it can be normally on, off, steady or pulse.

AEV OCTPUS MPX SPLIT is equipped with by-pass relay to ensure in any case the passage of the main signal in the face of power failure.
