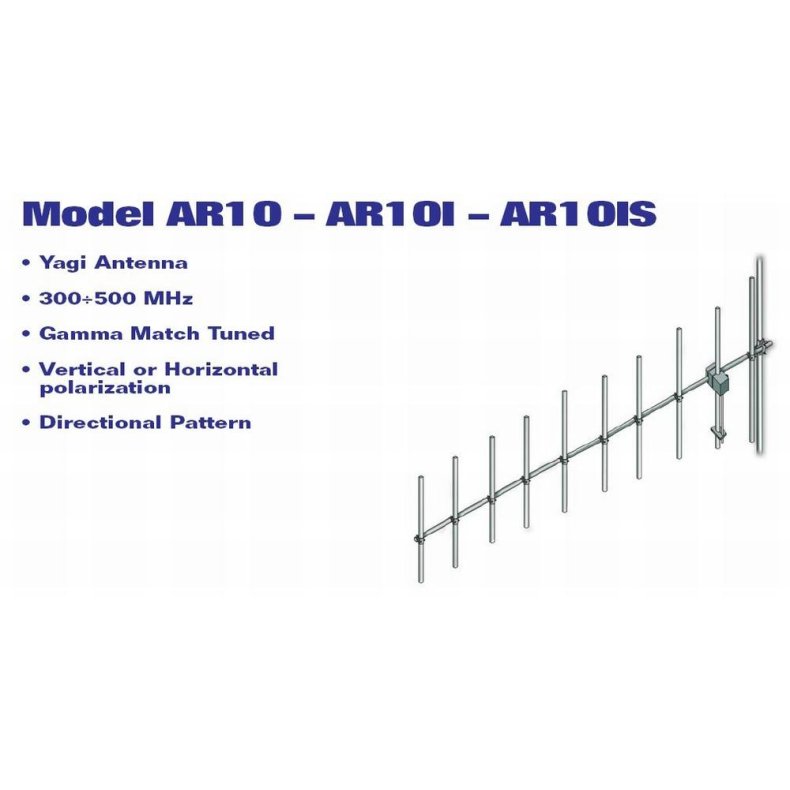

RVR AR10 link antenna 300-500 (Tuned for spec. freq.) MHz 300W 12 dBd

RVR AR10 link antenna 300-500 (Tuned for spec. freq.) MHz 300W 12 dBd

600,00 EUR

Choose your currency

Modell/Artikelnr.: RV-AR10
Lagerstatus: Lagernd! Versand innerhalb 1-3 Werktagen
Stück

RVR AR10 link antenna 300-500 MHz 300W 12 dB





Frequency range 300-500 MHz
Impedance 50 Ohm
Connectors N
Max Power 300W (N)
VSWR 1.1:1 in the working frequency
Polarization Horizontal or Vertical
Gain 12 dB (referred to half-wave dipole)

MECHANICAL DATA:
Dimensions According to the working frequency
(1650 x 380 x 50 mm at 385 MHz)
Weight According to the working frequency and
material used (aluminium or stainless steel)
Wind surface 0.1 m2 (at 385 MHz)
Wind load 13 kg (wind speed at 160 km/h)
Max wind velocity 200 km/h (AR10I / AR10IS)
AR10: Aluminium elements and stainless steel boom
AR10I: Stainless steel elements and boom
Materials AR10IS: Stainless steel elements and boom
Tig Welded
Teflon insulator
Mounting With special pipe clamps 50 -110 mm dia.



Titel Sorte Größe Herunterladen
ar10.pdf PDF 52.44KB Herunterladen
