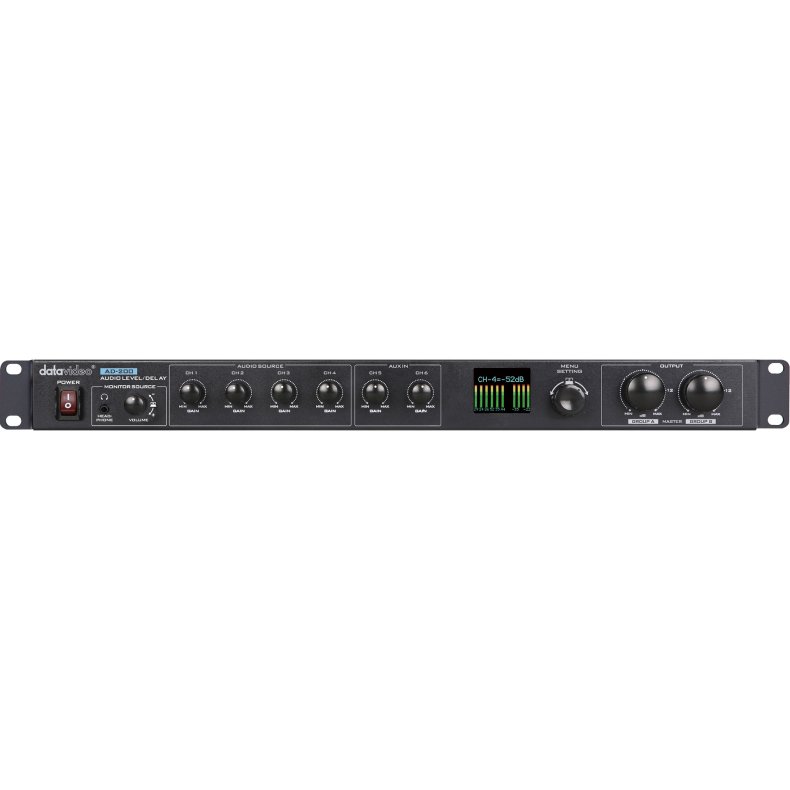

DataVideo AD-200 1RU Audiomixer w delay function, 6 XLR audio channels, Mic/line audio input modes
Two in one: Audio Mixer and delay
Support up to 3 sec audio delay adjustment for each input channel
6-CH Audio mixer and matrix router to 4-CH audio outputs
Audio level adjustment of each input
PRODUCT WORKFLOW
6-Channel Audio Delay/Mixer with Level Adjustment
Model Number
AD-200
Audio Input
6x XLR, 2x RCA
Audio Output
4x XLR, 2x RCA, 1x 3.5mm
Audio Indicator
1.77" Color OLED
Audio Delay
Up to 3000ms
Audio Sample Rates
48 KHz
Special Feature
Audio Delay and Mix, delay by channel
Chassis
2 units, rack-mount mainframe
Power
DC 12V 19W (front)
DC 12V 16W (rear)
Dimension (LxWxH)
440 x 126 x 42 mm
Weight
1.8 kg
Operating Temp. Range
0~40 °C
What's in the Box
1 x AD-200 main unit
1 x AD-200 control unit
1 x AD Switch DC 12V
1 x D-SUB cable, Male to MALE,Cable
1 x 3.5mm Stereo Cable, 1.2m
4 x 1U rack kit
16 x Screws M4 x 8mm
