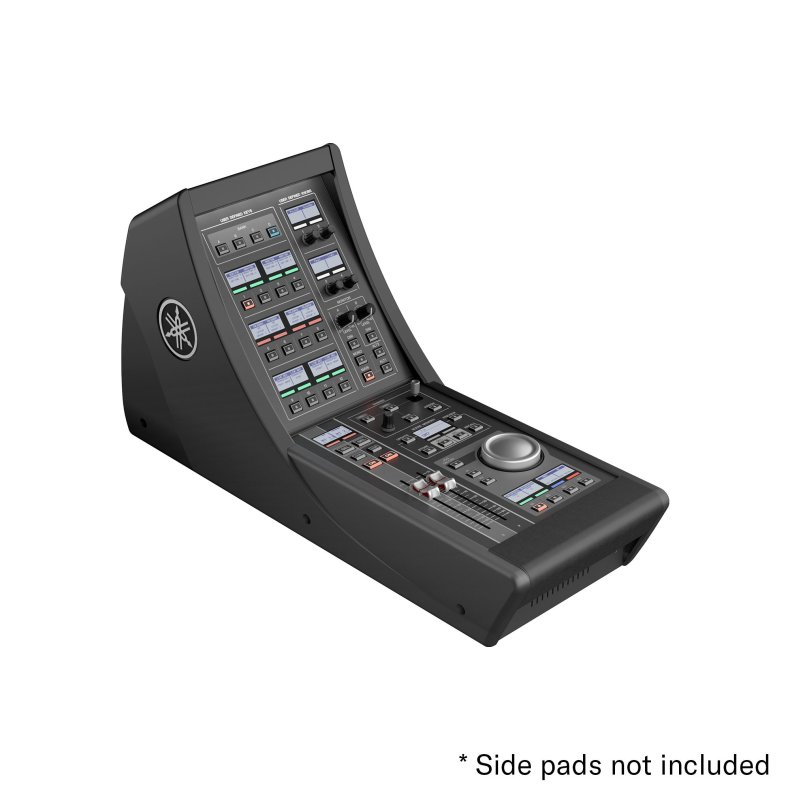

Yamaha DM7 Control Expansion controller. Theatre and Broadcast software software expansions included

The DM7 Control is an expansion controller with a variety of physical control devices that can be used to conveniently control functions for a number of applications, such as User Defined Keys, Scene Memory keys, Monitor Control keys and knobs, and Panner joystick. The Broadcast / Theatre Package is included with the DM7 Control controller. * Side pads not included

• Faders: 2
• User Defined Keys: 16
• User Defined Knobs: 4
• Scene Memory Keys: Update, Preview, Store, Recall, Inc, and Dec
• Monitor Control for Monitor A/B
• Panner: 1
• Jog Wheel: 1
• Power supply: AC INPUT and EXT DC INPUT for power supply redundancy
• Power consumption: 20 W
• Dimensions (W x H x D): 191 mm x 323 mm x 562 mm (7.6" x 12.8" x 22.2")
• Net Weight: 7 kg (15.5 lb)

Configure the ideal DM7 system to suit your workflow

The DM7 series ranges from the full-featured DM7-EX, which combines a large 2-bay DM7 with a DM7 control panel equipped with a physical controller, to the rack-mountable DM7 Compact, which is powerful and flexible despite its compact size. With four DM7 systems in total, bundled software, controllable devices, and more, this versatile lineup makes it easier than ever to find the perfect fit for your mixing style, environment, and workflow.

DM7 Control expansion controller

By connecting a DM7 Control unit to a DM7 console via Ethernet cable, many physical controls such as User Defined Keys/Knobs, Scene Memory, Monitor Control, and Panner can be accessed quickly and conveniently in a number of applications. It provides fast and reliable operation with User Defined Keys/Knobs and Scene Memory Keys for applications such as musicals that require perfectly timed triggers and scene changes, while transport keys assigned to User Defined Keys and Jog Wheel provide comfortable and quick operation for post-production applications that require efficient editing work.

It is also an indispensable tool for Broadcast, Immersive productions, and any other application that can benefit from physical controllers.

A DM7 Control can be attached to any DM7 console and operated as one mixer.

* The DM7 Control controller comes with Broadcast Package/Theatre Package license codes giving users convenient access to additional specialized functionality, and requires DM7 firmware V1.5 or later.
