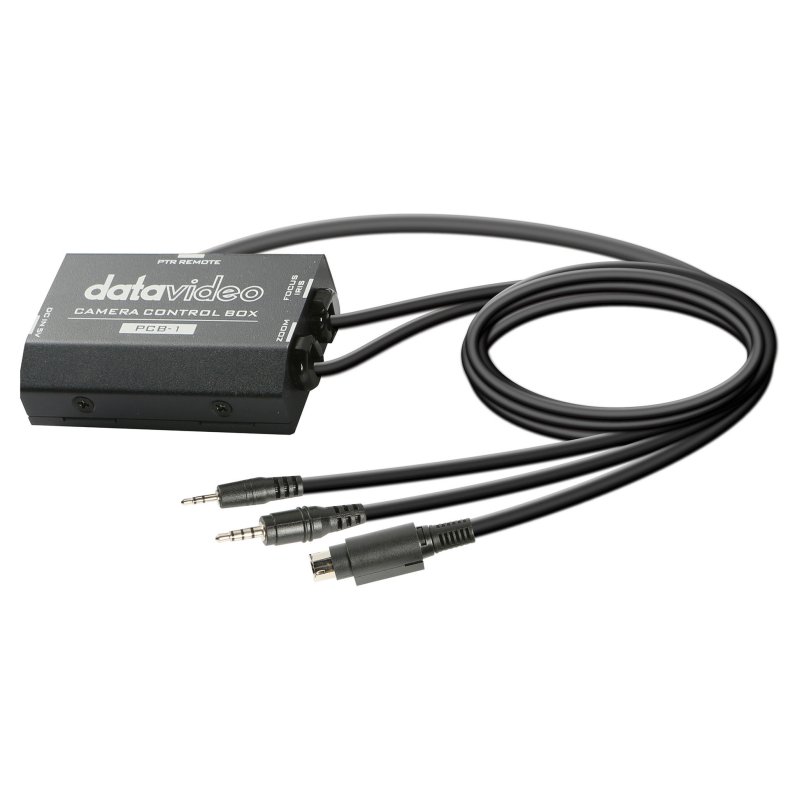

DataVideo PCB-1 Panasonic interface control box to interface between PTR-10 and Panasonic camera's
An Optional Controller for PTR-10/10T MARK II, PCB-1 can Perfectly Control Panasonic Dual-hole Remote Cameras
PCB-1 is a camera control box designed specifically for connecting between a PTR device and a Panasonic camcorder mounted thereon in order to allow zoom, focus and iris of the camcorder to be adjusted using the RMC-180 MARK II, the RMC-300A or an IR remote control connected behind the PTR device.
Designed for Datavideo PTR Series
As an optional controller for PTR-10/10T MARK II, PCB-1 can perfectly control Panasonic dual-hole remote cameras.
Controls Panasonic Two Port Remote Camcorders
Compatible with RMC-180 MARK II, RMC-300A and IR remote control, can control Zoom, Focus, IRIS of Panasonic camera.
Small Size Design
Low power consumption. PCB-1 can be powered from the PTR-10 MARK II series device.
Camera Control Box
Model Number
PCB-1
Input Voltage
DC 5V micro USB
Compatible Controllers
RMC-180 series
RMC-300A
IR Remote Control
Interfaces
One 8pin mini-din to the PTR device
One 2.5 mm Jack Plug to the Zoom jack on the Panasonic camcorder
One 3.5 mm Jack Plug to the Focus/Iris jack on the Panasonic camcorder
Operating Temperature
0 – 40°C
Operating Humidity
10 – 80% (non-condensing)
Storage Temperature
-10 – 60°C
Storage Humidity
5 – 80% (non-condensing)
Weight
135g
Dimensions
85.9 x 45.7 x 20.3mm (not inclusive of cables)
