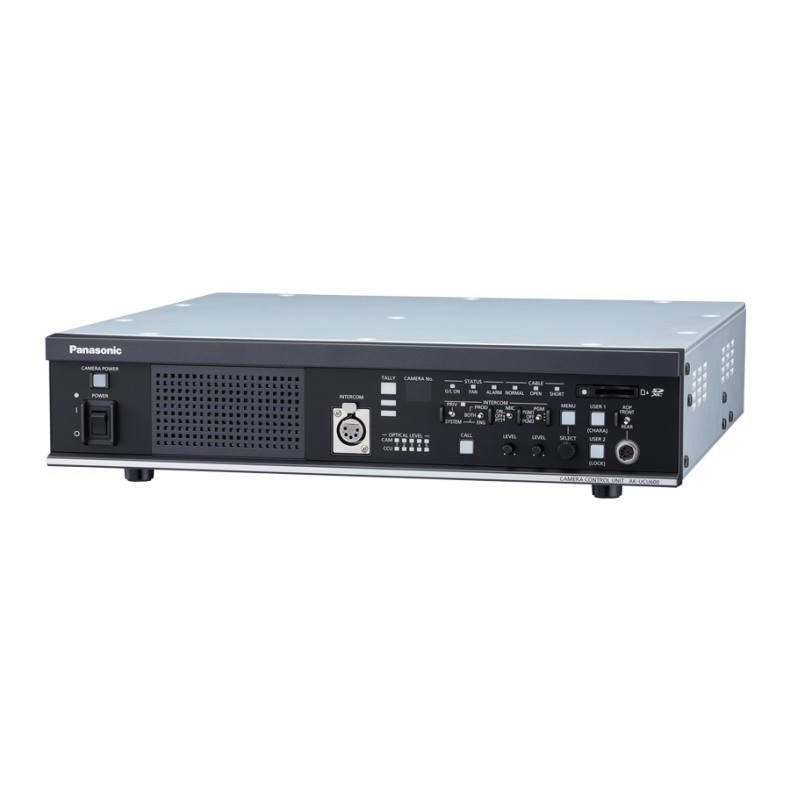

Panasonic AK-UCU600ESJ Camera Control Unit (LEMO connector model)
compatible for AK-PLV100 - AK-UC4000 - AK-UC3300 - AK-UC3000
Supports simultaneous UHD/HD output and high-speed*1 HD shooting.
The CCU supports not only UHD and HD simultaneous output, but also enables high-speed output*1 up to 240p in HD mode to be performed simultaneously with standard (1x) output, while still having a compact size.
- Contains a dual UHD 12G-SDI system, and supports 3G-SDI quad link with quadrant or two-sample interleave.
- Optical fiber transmission of uncompressed video signals over a distance of approx. 2,000 m between camera and CCU*2.
- The compact, lightweight unit measures 2U in height and is rack-mountable.
- Supports IP streaming (100 Base-T).
- SD memory card can be used for saving user files and updating firmware versions.
- Dual uncompressed12G-SDI output.
- Supports TICO*3 over SDI (4K over 3G-SDI) output (4K signal can be transferred by a conventional 3G-SDI cable).
- Supports 1080p/i and 720p. In addition to standard output, high-speed output*1 at 2x, 3x*4 or 4x*4 can be selected according to the specifications of the server.
- Supports HDR/SDR simultaneous output and HDR BT.2020/BT.709 simultaneous output.
- 12G-SDI output and TICO*3 over SDI (4K over 3G-SDI) output are compatible with the AK-UC3000.
- *1: When in HD Hi-Speed mode
- *2: When power is supplied from CCU.
- *3: A codec developed by intoPIX. Stands for “Tiny Codec”.
- *4: Only compatible with AK-UC4000.
Specifications
| Power Supply | AK-UCU600PJ/ AK-UCU600PSJ |
100 V - 120 V AC, 50 Hz/60 Hz |
|---|---|---|
| AK-UCU600EJ/ AK-UCU600ESJ |
100 V - 240 V AC, 50 Hz/60 Hz | |
| Power Consumption | 500 W (Without camera connected: 90 W) | |
| Capacity for Supplying Power to a Camera | 240 V AC (tolerance: 5 %), 1.46 A , 50 Hz / 60 Hz | |
| Operating Temperature | 0 ℃ to 40 ℃ (32 °F to 104 °F) | |
| Operating Humidity | 10 % to 90 % (no condensation) | |
| Weight | Approx. 8.9 kg (19.6 lb) | |
| Dimensions (W x H x D) | 424 mm x 88 mm x 401 mm (16-5/8 inches x 3-7/16 inches x 15-13/16 inches) (excluding protrusions) |
|
| Video Output | 3G/HD-SDI | 5 lines (embedded audio is supported only for HD signals) |
| 12G/6G/3G/HD-SDI | 2 lines | |
| HD-SDI | 1 line (shared with picture monitor output*1) | |
| Analog composite | 2 lines (1 line shared with picture monitor output*1) * For details on output formats, please see the "Supported formats". |
|
| HD TRUNK/TICO Output | HD-SDI | 1 line (HD TRUNK output) |
| 3G/HD-SDI | 1 line (TICO output) | |
| Return Input | 3G-HD/HD/SD-SDI | 4 lines (RET1 input has active-through output) |
| Analog composite | 1 line | |
| Prompter Input | HD-SDI | 1 line (with active-through output) |
| Analog composite | 2 lines (through output of 1 and input of 2 share the connector*1) It is not terminated when the unit is turned OFF. No through output. |
|
| Reference Input | BB (black burst) / tri-level*2: 1 line (automatic termination, connect to upper connector; BB signal and tri-level signal automatically recognized, with loop-through output) |
|
| Microphone Output | 0 dBm/600 Ω, 2 lines (XLR, 3-pin, male) | |
| Communication | Intercom input/output (ENG / PROD, 0 dBm, 600 Ω (4 W) / 1 V [p-p], 200 Ω (RTS), 4 W / RTS / CLRCOM) : 2 lines*1 |
|
| PGM input (0 dBm/600 Ω) : 2 lines | ||
| Tally input (red, green, yellow) : 1 input each | ||
| AUX | WFM control 6-bit (open collector output, terminal shared with camera microphone gain setting*1) |
|
| Camera microphone gain setting input 5-bit (photo-coupler input, terminal shared with WFM control*1) |
||
| Down-conversion system setting input 2-bit (photo-coupler input) | ||
| TRUNK | RS-422 / RS-232C 2 lines*1 |
|
| FRONT ROP | RS-422 1 line, 16 V DC output (only one of this and REAR ROP can be selected at one time via the menu or the [ROP FRONT/ REAR] selection switch on the front panel) |
|
| REAR ROP | RS-422 1 line, 16 V DC output (only one of this and FRONT ROP can be selected at one time via the menu or the [ROP FRONT/REAR] selection switch on the front panel) |
|
| MSU | RS-422 1 line, GPI for control |
|
| LAN TRUNK | LAN connection with camera side via an optical cable*3 1 line, 100BASE-TX, 1000BASE-T |
|
| LAN | Personal computer connection for distribution via the Web*3 1 line, 10BASE-T, 100BASE-TX (use a crossover cable when connecting directly with a personal computer) |
|
- *1: Depending on the setting, only one of them can be selected at one time.
- *2: The BB (black burst) signal and tri-level sync signal of the reference input are recognized automatically.
- *3: IP video cannot be transmitted when [CCU MODE] is set to [2160/23.98p], [2160/23.98PsF], [1080/23.98p], or [1080/23.98PsF].
