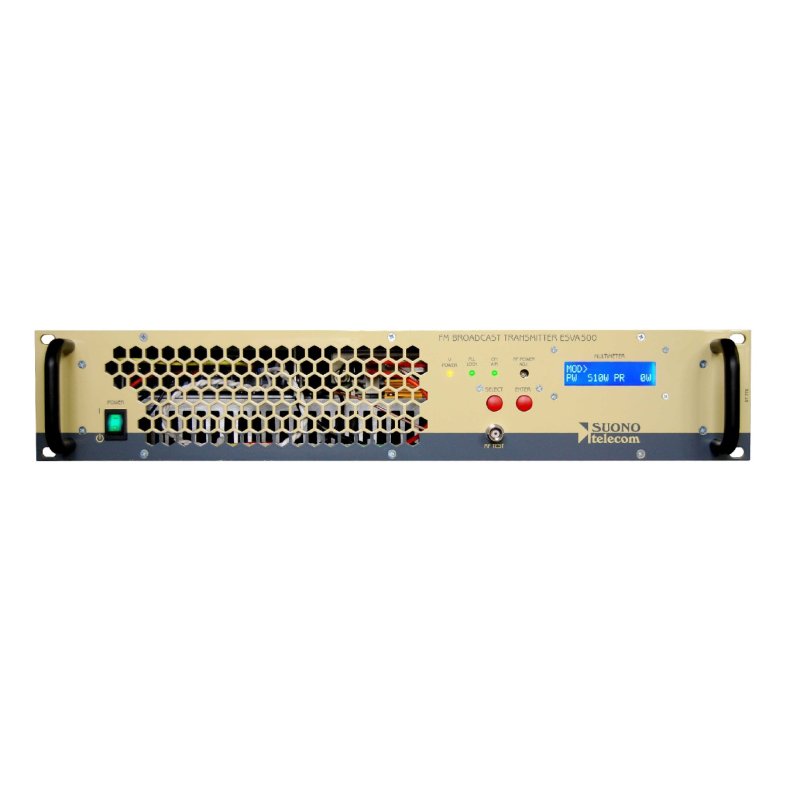

Suono Telecom ESVA500
Compact Broadcast FM Transmitter mod. ESVA500
Technical features:
Frequency Range: 87.5 ÷ 108 MHz (76 ÷ 88 MHz on request)
Type: Full Solid State Mos-Fet-Wide Band
Modulation: FM
Emission Class: F3E
VCO Tuning: 25 MHz
Frequency Stability: ± 2.5 ppm
Synthesizer Step: 100 KHz (10 KHz on request)
Power Output: 0 ÷ 500 W (Typ. max 520W)
Spurious Emission: < - 80 dB or better
Harmonic Emission: < - 60 dB
Stereo Separation: > 55 dB @ 1 KHz
Distortion: < 0.1 % (TYP. 0.06%) @ 1 KHz
Base Band: 30 Hz ÷ 60 KHz within 0.15 dB
Unweighted S/N Ratio: > 80 dB (30Hz ÷ 15KHz 50μS RMS)
Asyncronous AM S/N Ratio: > 65 dB Ref. 100% AM 400 Hz
Syncronous AM S/N Ratio: > 65 dB with FM @ 75 KHz @ 400 Hz
Pre-Emphasis: 50 or 75 μS int. selectable
RF Out Connector: N Female
MPX Input Connector: BNC-F
MPX Input Impedance: 2 KOhm
SCA Input Connector: 3 BNC-F
Protections: Overload, Temperature, VSWR in a fold-back reducing power
Cooling: Forced air
Op. Temperature Range: 0 ÷ +50 °C
Maximum Umidity: 90 %
AC Supply: 100 ÷ 240 VAC - 47 ÷ 63 Hz
Dimension: 2 unit rack 19", 470 mm depth
AC Consumption: 770÷820 VAat full output power
Weight: 12 kg
