Delta Meccanica 1,5kW Dummy Load - Oil Die-Electric with Forced air
Delta MeccanicaDT-1365-100-V
Bitte erfragen Sie unsere Lieferzeit
2.355,00 EUR

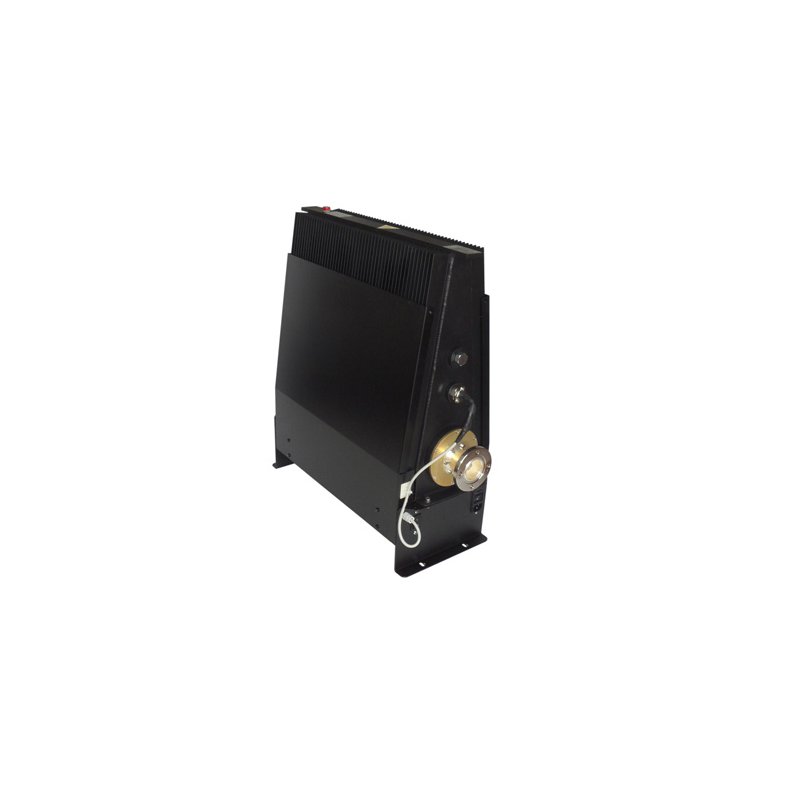

Delta Meccanica 1365-250-V - 5kW Oil cooling with Air Force Dummy Load
Mechanical Characteristics
Connections EIA 7/8", 1 5/8" OR 3 1/8"
Overall dimensions [WxDxH] 230x600x650
Temperature range [°C] -10÷50
Weight [kg] 43
Cooling system Oil cooling with air forced
Electrical Characteristics
Frequency range [MHz] DC÷862
Return loss [dB] ≥23
Input impedance [Ohm] 50
Maximum input power [W] 5000 (rms)
Blower AC power [V] 110 or 220
| Titel | Sorte | Größe | Herunterladen |
|---|---|---|---|
| Delta-Meccanica-1365-250-V.pdf | 149.24KB | Herunterladen |
Delta Meccanica 1kw oil cooled Dummy Load
Delta MeccanicaDT-1365-100
Bitte erfragen Sie unsere Lieferzeit
1.770,00 EUR
Delta Meccanica 2,5kw oil cooled Dummy Load
Delta MeccanicaDT-1365-250
Bitte erfragen Sie unsere Lieferzeit
2.685,00 EUR
Delta Meccanica 5kw oil cooled Dummy Load
Delta MeccanicaDT-1365-500
Bitte erfragen Sie unsere Lieferzeit
4.820,00 EUR
