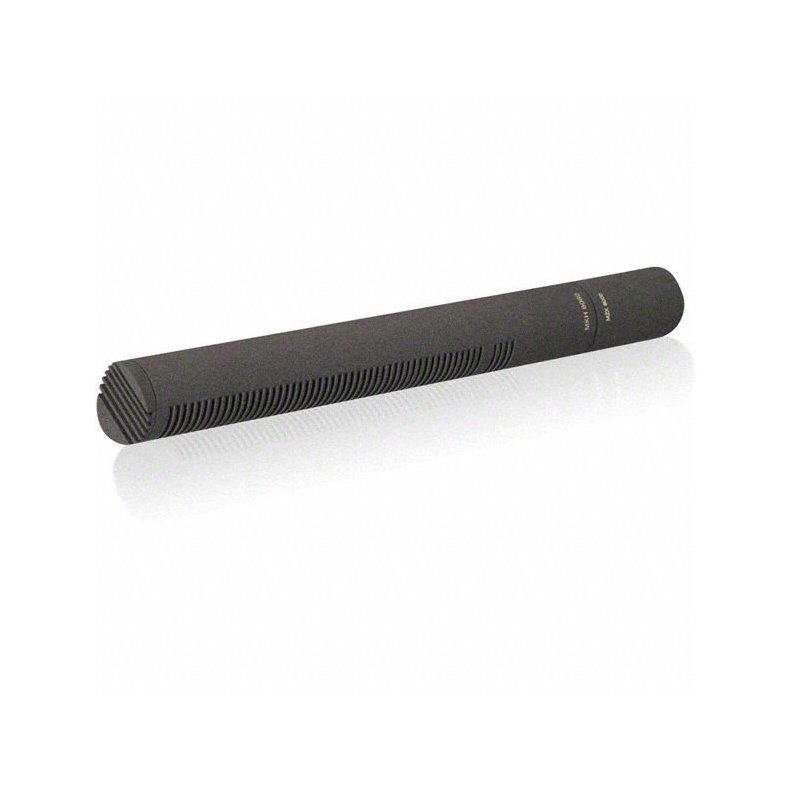

Sennheiser MKH 8060
Whether it's a feature film, a documentary, an outdoor shoot or a studio production, the Sennheiser MKH 8060 will provide high quality sound to match your great pictures. Handily compact it shows its strengths as a professional shotgun microphone: The Sennheiser MKH 8060 delivers an absolute natural sound and outstanding off-axis linearity, attenuating sound coming from the side without coloration. Like all mics of the 8000-family it can be easily combined with the MZD 8000 digital module, turning it into a full-fledged digital microphone.
Features:
-
Super-cardioid/lobar pick-up pattern
-
Very natural sound
-
Undistorted off-axis sound
-
Exceptionally low inherent self-noise
-
Extremely low distortion
-
Transformerless and fully floating balanced output
-
High output signal
-
Rugged metal housing
-
Non-reflective Nextel® coating
-
Extremely weather-proof due to RF circuit
-
Ideal for camera mounting due to compact design
-
Becomes a digital mic when combined with the MZD 8000 digital module
-
Timbrally identical with the other 8000-series microphones for optimum aural compatibility
Technical specifications:
| Dimensions | diameter 19 mm, lenght 175 mm (145 mm excluding XLR module) |
| Transducer principle (Microphone) | RF condenser microphone |
| Frequency response | 50 - 25000 Hz |
| Weight | 112 g (80 g excluding XLR module) |
| Audio output | XLR-3M balanced, transformerless, floating |
| Pick-up pattern | super-cardioid/lobar |
| Sensitivity in free field, no load (1kHz) | -24 dBV/Pa (63mV/Pa) |
| Nominal impedance | 25 Ohm |
| Min. terminating impedance | 2000 Ohm |
| Phantom powering | 48 V +/- 4 V |
| Equivalent noise level | 11 dB |
| Equivalent noise level weighted as per CCIR 468-3 | 23 dB |
| Maximum sound pressure level (passive) | 129 dB SPL |
| Current consumption | 3,3 mA |
