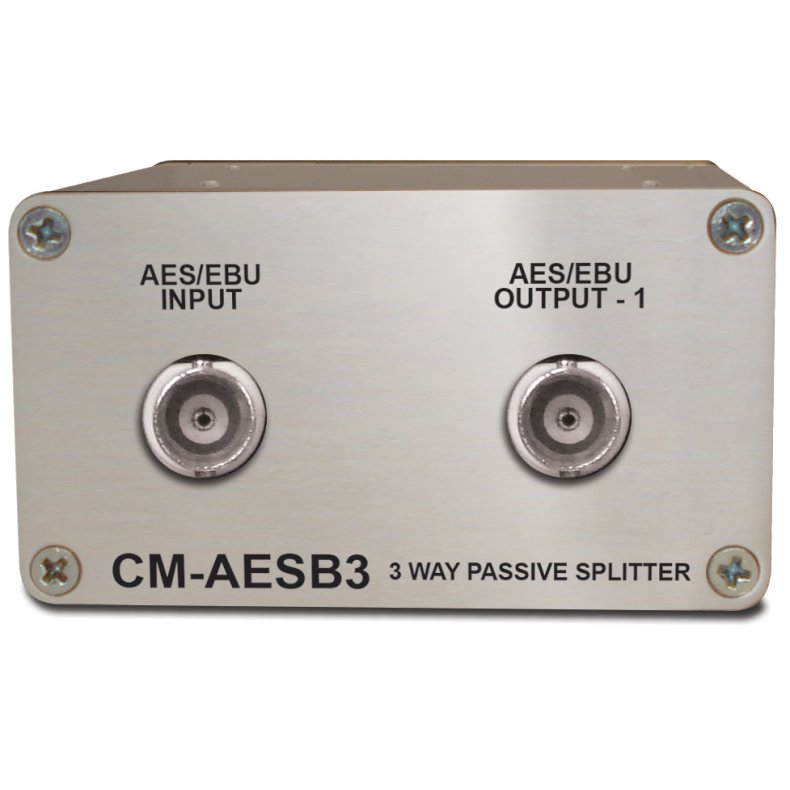

Sonifex CM-AESB3 Single 3 Way Passive AES3ID Splitter With BNC Connectors
The Sonifex CM-AESB3 is a passive “one-to-three” splitter housed in a small but robust aluminium box. It is designed to split a single AES3ID digital audio source to up to three destinations, using female BNC connectors.
Particularly useful in a video production and broadcast environment, the CM-AESB3 splits the input signal through high quality transformers. 75Ω termination can be applied, if desired, to unconnected outputs to maintain optimum carrier parameters.
The CM-AESB3 requires no power to operate, ensuring your audio remains connected from source to destination(s) without interruption from power failures.
Technical Specification For SonifexCM-AESB3 |
|
CM-AESB3: Cable Drive Capability |
|
| Cumulative cable drive capability of 100m of 75Ω coaxial cable at sample rates up to and including 96kHz. | |
Connections |
|
| Inputs: | 1 x BNC female |
| Outputs: | 3 x BNC female |
Equipment Type |
|
| CM-AESB3 | 3 Way passive AES3ID splitter with BNC connectors |
Physical Specification |
|
| Dimensions (Raw): | 7.7cm (W) x 8.3cm (D) x 4.2cm (H) 3.0” (W) x 3.3” (D) x 1.7” (H) |
| Dimensions (Boxed): | 22.9cm (W) x 12.7cm (D) x 7.6cm (H) 9.0” (W) x 5.0” (D) x 3.0” (H) |
| Weight: | Nett: 0.22kg Gross: 0.33kg Nett: 0.49lbs Gross: 0.73lbs |
