Tascam ML-4D/OUT-E

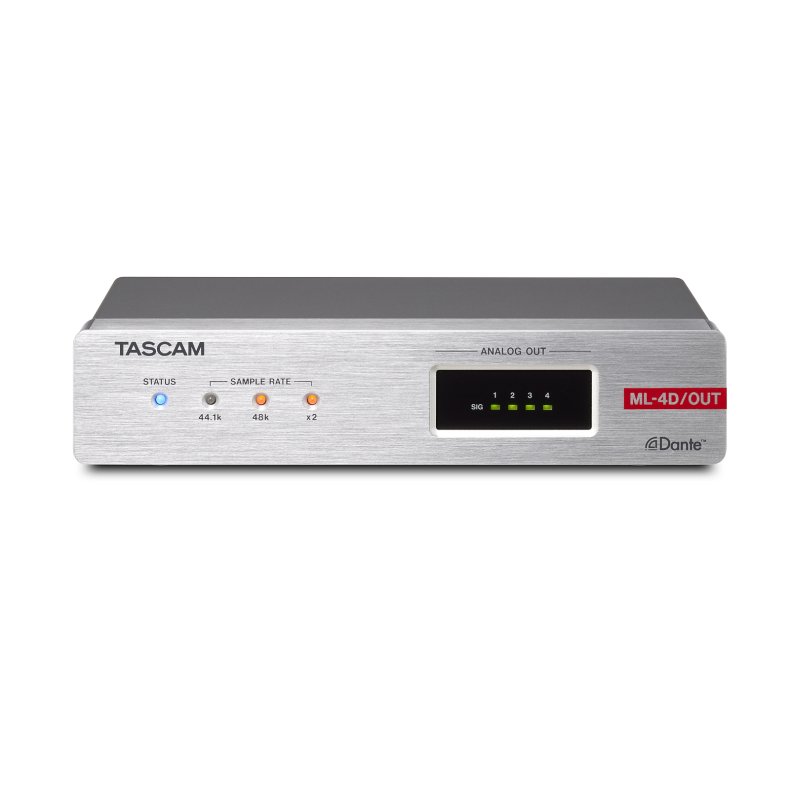

The ML-4D/OUT is an exquisite analogue output unit that converts four Dante input signals into four line output signals. In addition, it also supports four-channel Dante output as well, making it possible to use virtually any audio sources within an established Dante network. Available with Euroblock (ML-4D/OUT-E) or XLR (ML-4D/OUT-X) connectors for analogue outputs, this model can be used for a wide range of applications.
The ML-4D/OUT is part of the Tascam Dante Compact Processor Series consisting of compact, half-rack size audio converters for Dante/AES67 networks. The models easily add additional mic/line or AES/EBU inputs/outputs to Dante audio networks in public facilities, broadcasting stations, recording studios or upmarket domestic environment and can be freely combined.
A key advantage of the product range is the DSP processor built into each unit. By providing not only mixing functions and EQ but also dynamic processing, automatic level control, auto-ducking, routing and noise compensation, even small systems can fully perform without additional signal processing or mixing devices. From the input of microphone signals to the output of powered speakers or recording devices, the Dante Compact Processor Series can build up a complete small system on their own.
Remote control is possible via two different software applications available for Mac, Windows, iOS and Android devices: Tascam DCP Connect for configuration and Tascam EZ Connect for end users, both of which are simple to use and included with the units. The ML-4D/OUT also offers the possibility to control its output levels via GPI.
All models can be powered by PoE or an optional AC adapter. By using power daisy-chaining, two units mounted side-by-side in a rack can be powered by one AC adapter.
Features at a glance
Hardware features
- Four balanced line outputs
- Two product variants:
- ML-4D/OUT-E: Equipped with Euroblock connectors for permanent installation
- ML-4D/OUT: Equipped with XLR connectors for touring and other more flexible applications
- Dante interface allows audio signals to be transferred over an Ethernet network
- Two LAN connectors for Dante daisy-chaining
- Flexible routing with “Dante Controller” software
- AES67 is supported to allow connection with Ravenna and other compatible audio network technologies
- Up to 96 kHz sampling rate and 24 bit resolution
- Front-panel indicators for operation status and current sample rate
- Signal indicators for analogue output signals
- Output levels can be controlled by GPI (ML-4D/OUT-E only)
- Power supply by PoE (Power over Ethernet) or optional PS-P1220E AC adapter
- Power daisy-chaining allows two units to be supplied from one AC adapter
- Half-rack size chassis (1U)
- Attachment brackets included for mounting the unit under a table top, for example
Software features
- Four Dante audio input and output channels
- Powerful DSP mixer
- Mixer features: Matrix mixer, ducking, ambient noise compensator (ANC), routing
- Output features: 10-band equalizer, delay, mute, fader, limiter, polarity
- Up to 50 scene presets can be saved
- Timer event function allows presets to be switched at specific times (planned for a future update)
- Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments
- Two types of control software available (compatible with Windows/Mac/iOS/Android devices):
- Tascam MX Connect for system integrators offers full access to virtually all settings
- Tascam EZ Connect for end-users is a simple app for only the most necessary settings
Optional accessories
- PS-P1220E AC adapter (can also be used for redundant power supply when operating at PoE)
- AK-RS1 rackmount shelf for two units to be mounted side by side
Specifications
| General | ||
|---|---|---|
| Number of channels and formats | 4 channels, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 16/24 bit | |
| Audio outputs | ||
|---|---|---|
| Analogue outputs (ANALOG OUT) | ML-4D/OUT-E: Balanced Euroblock connectors, 3.81 mm pitch ML-4D/OUT-X: XLR connectors (XLR-3-32, 1: GND, 2: HOT, 3: COLD) |
|
| Nominal output level | +4 dBu (Ref(D) ≠ –9 dBFS) +6 dBu (Ref(D) = −9 dBFS) |
|
| Maximum output level (selectable) | +15 dBu (Ref(D): –9 dBFS) +18 dBu (Ref(D): –14 dBFS) +20 dBu (Ref(D): –16 dBFS) +22 dBu (Ref(D): –18 dBFS) +24 dBu (Ref(D): –20 dBFS) |
|
| Output impedance | ≤200 Ω | |
| Note: 0 dBu equals 0.775 Vrms | ||
| Other inputs and outputs | ||
|---|---|---|
| Dante/Ethernet connectors (DATA/DATA+PoE) | RJ-45 | |
| Transmission protocol | Dante | |
| Gigabit Ethernet standard | 1000BASE-T (IEEE 802.3ab) | |
| Cable requirements | Cat 5e or better STP cables | |
| Output level control (10V/CONTROL/GND, ML-4D/OUT-E only) | Balanced Euroblock connectors, 3.81 mm pitch Connect a variable resistor here (10 kΩ recommended) |
|
| Audio performance | ||
|---|---|---|
| Dante input to Line output | ||
| Frequency response | 20 Hz – 20 kHz, ±0.5 % (sampling frequency 44,1/48 kHz, JEITA) 20 Hz – 40 kHz, ±0.5 % (sampling frequency 88,2/96 kHz, JEITA) |
|
| Distortion (THD+N) | ≤0.005 % (−1 dBFS input, 44.1/48/88.2/96 kHz sampling frequency, JEITA) |
|
| S/N ratio | ≥105 dB (44.1/48/88.2/96 kHz sampling frequency, JEITA) |
|
| Crosstalk | ≥100 dB (44.1/48/88.2/96 kHz sampling frequency, JEITA) |
|
| Dynamic range | ≥105 dB (44.1/48/88.2/96 kHz sampling frequency, JEITA) |
|
| Note: JEITA indicates compliance with JEITA CP-2150 | ||
| Power supply and other specifications | ||
|---|---|---|
| Power supply | PoE class 0 Tascam PS-P1220E AC adapter (sold separately) |
|
| Power consumption | 7.5 W | |
| Dimensions (W × H × D) | 214 mm × 45 mm × 136 mm (including protrusions) | |
| Weight | 885 g | |
| Permissible operating temperature range | 0–40 ºC | |
Design and specifications subject to change without notice.
