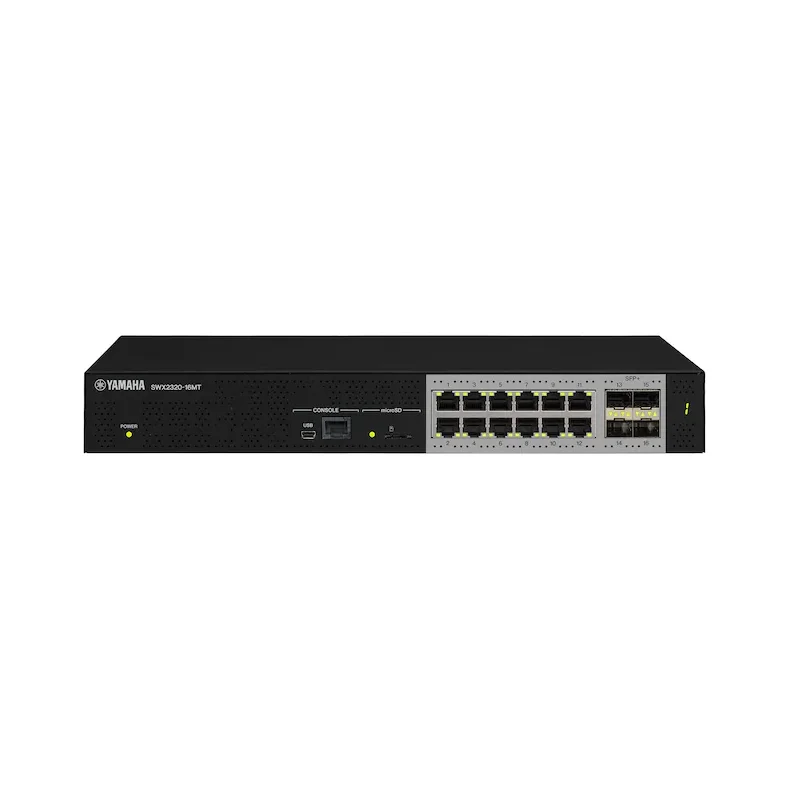

Yamaha SWX 2320 L2 Intelligent switch with 16 ports. 12 multi-gigabit ports and 4 SFP+ ports.
10-Gigabit/Multi-Gigabit switches that can be employed flexibly to meet the varied needs of high-capacity networks
Strengthening backbone networks has recently become a critical concern for businesses, concert halls and other installations as the demand for ability to handle high-quality video and audio with low latency increases. As our first switches to support 10-Gigabit/Multi-Gigabit Ethernet, these new models in our lineup are ideal for strengthening backbone networks that require high speed and capacity. The new L3 intelligent switches allow the construction of systems capable of handling increased traffic of media that spans multiple segments, while our L2 switches are perfect for transmitting single-segment audio and video media. These new additions to our lineup support Yamaha LAN Monitor and come with a range of features optimal for Dante systems, expanding on the Dante optimization functions of our existing products.
L2 Intelligent switch with 16 ports
- Available ports : 12 multi-gigabit ports (100M/1G/2.5G/5G/10G) and 4 SFP+ ports
- In-built RADIUS server for advanced security management
- PTPv2 TC (Transparent clock) supported
- Yamaha LAN Monitor supported
Create high-speed, high-capacity networks with 10-gigabit and multi-gigabit speeds
The LAN ports of the SWX2320-16MT and SWX3220-16MT support five speeds (100M/1G/2.5G/5G/10Gbps) and optimize network speed as appropriate to the devices connected. As demand for speed and capacity grows because of rising numbers of wireless devices, greater audiovisual communication traffic, and increasing access to large files, faster LAN switches allow smooth handling of loads that would congest 1 Gbps networks. Networks that already use Cat5e or Cat6 cables can be accelerated to up to 5 Gbps by replacing their GbE switches with these new models. 10 Gbps networks can be created by using Cat6A cables with these models.
Upgrade existing networks
Construct high-speed networks
One-click Dante Optimization
IGMP and QoS settings for SWX2320-16MT/SWX3220-16MT switches can be automatically optimized for Dante network operation by simply clicking the “Dante optimization” button in the web-based GUI. These network settings are not critical in simple systems, but proper configuration is essential to ensure maximum stability in larger Dante networks.
Network Visibility and Smart Management (Yamaha LAN Monitor)
Effective Dante network management hinges on a range of parameters such as network traffic, switch status, and individual Dante device information. The dedicated Yamaha LAN Monitor computer application provides a comprehensive single-screen view of all necessary parameters when used with SWP/SWR/SWX series switches. We refer to this type of graphical overview as “network visbility.” You can even take a snapshot of the normal network status and set an alarm to warn you if any of the parameters changes, so that problems can be identified and resolved quickly and easily. The Dante Controller application can also be launched from the Yamaha LAN Monitor with a single click, providing a total Dante network solution on a single computer.
Intelligent Security Management
Augmenting the VLAN functionality included in the SWX2320-16MT/SWX3220-16MT is built-in RADIUS server function. By setting up one switch as a RADIUS server and linking other switches to it, unauthorized network access can be effectively blocked for enhanced security, even in complex large-scale installations. Device authentication can be set up quickly and easily via a web-based GUI.
Support for PTPv2 TC time synchronization of 1 μsec or less
To provide the high-precision time synchronization necessary for synchronized audio and video playback and other applications, IEEE 1588 PTPv2 TC (Transparent Clock) is now supported with 1 Gbps/10 Gbps networks. This feature adds delay time data to PTP messages as they pass through the switches, enabling synchronization precision between devices of 1 μsec or less when real-time performance is required.
Installation
Rack-mount installation (SWX3220-16MT + Rack mount bracket)
*If you plan to rack-mount the unit along with a device that tends to generate heat, such as an amplifier, be sure to leave a gap of 1U or more from such devices.
Wall-mount installation (SWX2320-16MT + Wall mount bracket)
*With the wall mount bracket the unit is mountable on the wall or ceiling with a height of 2m or less
*Do not install with the LAN ports facing upward
SPECS
| SWX3220-16MT | SWX2320-16MT | ||
|---|---|---|---|
| LAN ports | Standard | IEEE802.3 (100BASE-TX/ 1000BASE-T/ 2.5GBASE-T/ 5GBASE-T/ 10GBASE-T) | IEEE802.3 (100BASE-TX/ 1000BASE-T/ 2.5GBASE-T/ 5GBASE-T/ 10GBASE-T) |
| Number of ports | 12 | 12 | |
| Communication mode | Auto negotiation | Auto negotiation | |
| Connector type | RJ-45 | RJ-45 | |
| Polarity | Automatic detection of straight/cross, or fixed at straight | Automatic detection of straight/cross, or fixed at straight | |
| SFP+ ports | Standard | IEEE 802.3z (1000BASE-SX/ 1000BASE-LX), IEEE 802.3ae (10GBASE-SR/ 10GBASE-LR) | IEEE 802.3z (1000BASE-SX/ 1000BASE-LX), IEEE 802.3ae (10GBASE-SR/ 10GBASE-LR) |
| Number of ports | 4 | 4 | |
| Power supply voltage, frequency | AC100 - 240V, 50/60Hz | AC100 - 240V, 50/60Hz | |
| Maximum power consumption | 84 W | 84 W | |
| Console ports | Standard | RS-232C, USB 2.0 | RS-232C, USB 2.0 |
| Connector type | RJ-45, USB mini-B (5-pin) | RJ-45, USB mini-B (5-pin) | |
| Data transmission speed | 9600 (default value) / 19200/ 38400/ 57600/ 115200 bit/s | 9600 (default value) / 19200/ 38400/ 57600/ 115200 bit/s | |
| microSD slot | Standard | microSD/microSDHC | microSD/microSDHC |
| File System | FAT/FAT32 | FAT/FAT32 | |
| Indicators | POWER, microSD, STACK ID, LAN port (LINK/ ACT, SPEED), SFP+ port (LINK/ ACT, SPEED) | POWER, microSD, STACK ID, LAN port (LINK/ ACT, SPEED), SFP+ port (LINK/ ACT, SPEED) | |
| MAC address | Indicated in product label on top panel of unit | Indicated in product label on top panel of unit | |
| Number of fans | 3 | 3 | |
| Operating environment | Ambient temperature: 0-50 °C, Ambient humidity 15-80% (non-condensing) | Ambient temperature: 0-50 °C, Ambient humidity 15-80% (non-condensing) | |
| Storage environment | Ambient temperature: -20-60 °C, Ambient humidity 10-90% (non-condensing) | Ambient temperature: -20-60 °C, Ambient humidity 10-90% (non-condensing) | |
| Dimensions | W | 330 mm | 330 mm |
| H | 44 mm | 44 mm | |
| D | 250 mm | 250 mm | |
| Weight | 2.7 kg | 2.7 kg | |
| Accessories | Manual (Read this first), power cord, power cord clamp, legs, dust covers, 19-inch rack mount bracket, wall mount bracket and screws | Manual (Read this first), power cord, power cord clamp, legs, dust covers, 19-inch rack mount bracket, wall mount bracket and screws | |
