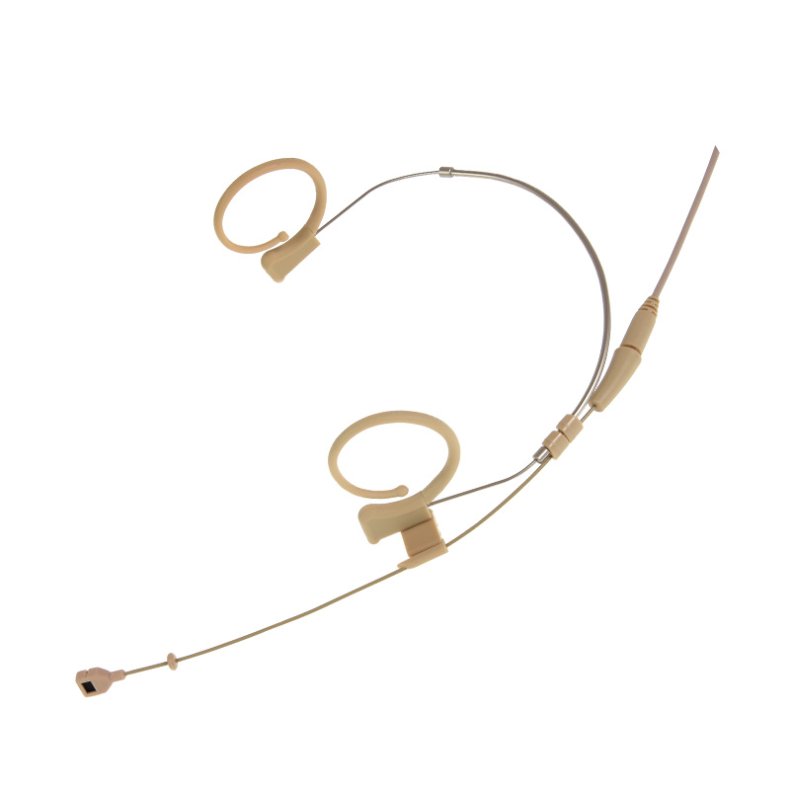

Voice Technologies VT DUPLEX Cardioid L/XL

The unique character of a real cardioid microphone in a nearly invisible headset:

With its high sensitivity and precise polar pattern, the VT DUPLEX CARDIOD captures every nuance of the voice. For impressive performances on stage, in broadcast and live applications or presentations. For the production, Voice Technologies uses a sophisticated injection-moulding process, which not only allows the production of a long-living, rock-solid product, it also offers unique protection against water. This means the VT DUPLEX CARDIOID can be used even in challenging environments. In addition, a custom-made spacer prevents noise through contact.

• Color: Beige
• Generating Element: Cardioid
• Detachable cable
• A0djustable size

Application area: Stage - Presentation - Broadcast & Live

The VT Duplex-Cardioid comes with the following accessories:

• cable VT Duplex Vocal/Cardioid
• DH Distance Holder
• WSC Windscreen
• Headband Duplex Series
• Case4

Technical specifications:

• Generating Element: Electret Condenser (tensioned diaphragm)
• Polar Pattern: Hyper-Cardioid
• Frequency Range: 100Hz-6kHz
• Sensitivity (@ 1kHz): -49dB ±3dB 1V/microbar (3.5 mV/Pa)
• Noise Level: 26dB “A” weighted
• Max. Input SPL: 113dB
• Impedance: 4.4 kΩ
• Bias/+VDC: 1.3V to 10V
• Cable: Length 1.15m (45") Ø 1.9mm
• Weight: 15g (0.53 oz)
• Color: Beige

Wiring configuration (3-wire):

• Red+VDC
• BlueNF
• CopperGround
