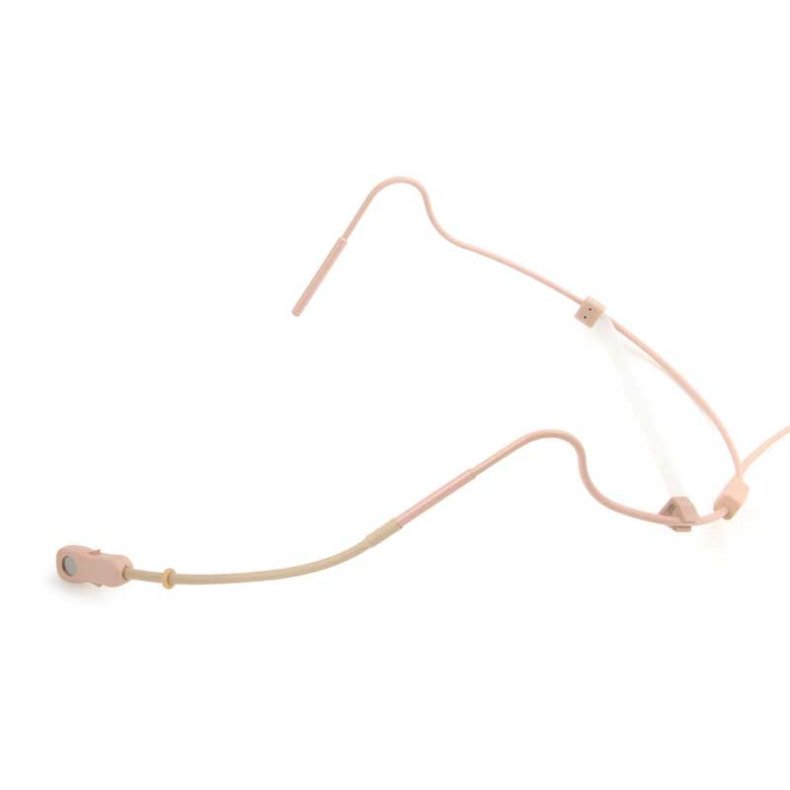

Voice Technologies VT800 Beige
Much consideration has been put into the physical design of the VT800: the adjustable, gooseneck style mic boom enables the talent to stay close to monitor speakers and to produce a clear, intelligible voice over the noise.
The cable runs neatly to the back of the neck for best concealment. The headband is highly resistant to corrosion and is easy to clean.
- Color: Beige
- Generating Element: Cardioid
- Robust
- Easy to use
- Adjustable size
Application area: Presentations - Speaker - Moderator - Vocals
The VT800 comes with the following accessories:
- Strap (beige/black)
- WS800 (beige/black)
- VT Case4
Technical specifications:
- Generating Element: Electret Microphone
- Polar pattern: Cardioid
- Frequency Range: 100Hz- 10 kHz
- Sensitivity: -53dB ±3dB 1V/microbar (2.2mV/Pa)
- Noise level: 32dB “A” weighted
- Max. Input SPL: 120dB based on 9V supply
- Impedance: 2.8 to 6.8 kOhms, nominal 4.4 kOhms
- Dynamic Range: 88 dB
- Signal Noise Ratio: 62dB @94dB SPL
- Bias/+VDC: 1.5V to 9V
- Cable: Length 1.5m (59") Ø 2mm
- Weight: 18g (0.63oz) (without cable/connector)
- Color: Beige
Wiring Configuration (3-wire):
- Red+VDC
- Blue (Transparent)NF
- CopperGround
