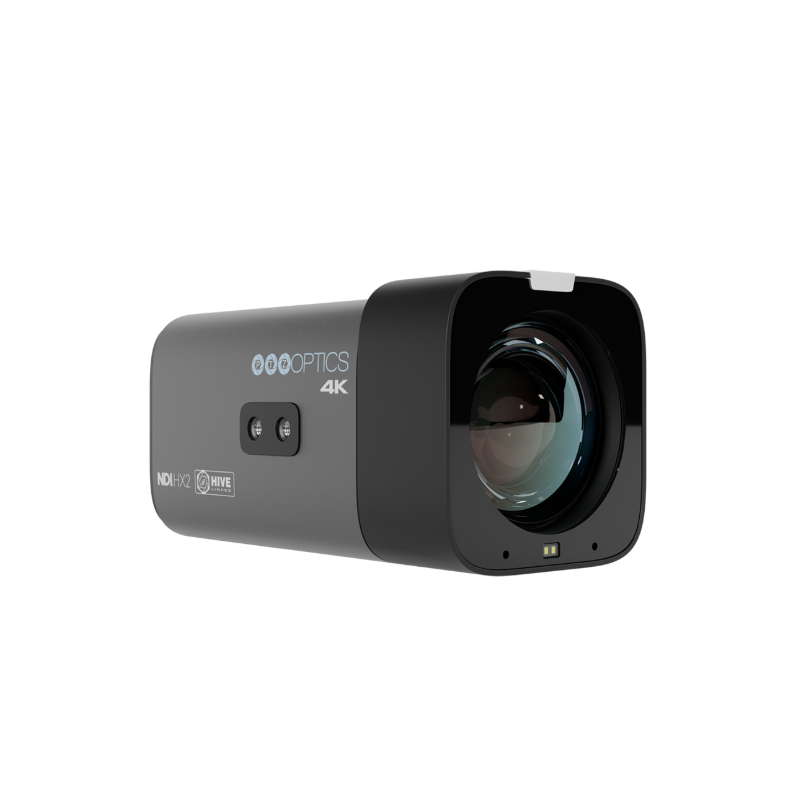

PTZOptics ZCam 4K 12X zoom - a Hive-Linked camera featuring 12X Optical Zoom, grey

PTZOptics ZCam 4K 12X zoom - a Hive-Linked camera featuring 12X Optical Zoom, grey

1.055,00 EUR

Modell/Artikelnr.: PT-PT12X-STUDIO-4K-GY-G3
Lagerstatus: Versand innerhalb 7-14 Werktagen
Stück

PTZOptics Studio 4K, with built-in mic and tally light – 12x optical zoom-grey

Fixed Camera, Unmatched 4K Video

Whether as a standalone camera or an addition to a larger studio setup, PTZOptics’ Studio 4K provides crystal-clear 4K resolution, 12X or 20X zoom and conveniently Hive-Linked™ to our easy-to-use online platform, Hive Studio, delivering future-ready connectivity and control from anywhere.

Connect, Point, Produce!

The Studio 4K features SDI, HDMI, USB, and IP output and comes native with NDI® HX2, allowing for seamless integration into various video production setups, connecting directly to a live production switcher, streaming over a network, or recording through an SDI interface. Built-in connectivity links to Hive Studio automatically!

Zoom In with Power and Endurance

The Studio 4K is your perfect entry into the world of 4K videography, offering powerful zoom capabilities and reliable performance. Capture a head-and-shoulders shot of your subject from up to 90 feet away with zoom strengths of 12X or 20X, ideal for medium or large spaces. Designed for utility and endurance, its unobtrusive design, continuous operation, and a variety of mounting options, the Studio 4K will be your new video system workhorse.

A Multitude of Applications

The Studio 4K is the perfect companion to a Move SE or Move 4K multi-camera setup, enhancing your production capabilities with an additional fixed-camera option that complements your PTZ cameras. The Studio 4K’s high-quality construction and discreet profile makes it the perfect choice for streaming municipal meetings, worship services, sports, and security applications. In addition, as a fixed camera the Studio 4K is courtroom friendly.

Future-Friendly Performance

To accommodate ever-evolving productions, the Studio 4K is Hive-Linked, PTZOptics proprietary built-in automatic connection to Hive Studio, allowing centralized multi-camera control & management from anywhere within the comfort of a web browser. With just a few clicks, you’ll have centralized management of all your cameras from anywhere with just a web connection, enabling controlling and configuring multiple cameras from a single interface—no need for complex multi-software setups.

Free Software for PTZOptics Users

PTZOptics cameras are compatible with a wide range of free software solutions, including:

  • Camera Management Platform (CMP) for camera management, control, color correction, auto-tracking
  • Control apps for desktop and mobile devices
  • Plugins and integrations for popular platforms, including OBS
  • Camera configuration and management tools
  • Support and testing utilities
  • And more!

amera & Lens

Image Sensor & Lens

12x and 20x: 1/2.8” CMOS, 8MP (8.4M effective pixels)

Digital Zoom

16x

Resolution and Frame Rate

HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94
SDI: 1920x1080p-60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94/50

Optical Lens Focal Length (Zoom)

12x: f = 4.1mm ~ 49.2mm, F1.8 ~ F2.68
20x: f = 4.7mm ~ 94mm, F1.6 ~ F3.6

Optical Lens Field of View, Horizontal & Vertical

12x: H 6.9° ~ 72.5° | V 3.9° ~ 44.8°
20x: H 3.5° ~ 60.7° | V 1.9° ~ 34.1°

Display Field of View

12x: 80.2°
20x: 67.8°

Min Lux

0.5 Lux @ (F1.8, AGC ON)

Shutter

1/30x ~ 1/10000s

Presets

255 Presets

Presets Accuracy

0.1°

Image Flip

Supported

Image Mirror

Supported

Image Freeze

Supported

Physical Specifications

Material

Aluminum, Plastic

Color

Gray or White

Dimensions (L x W x H)

5.7" L x 2.99" W x 3.09" H | 145mm L x 76mm W x 78.5mm H

Weight

12x: 1.5 lbs | 0.68kg
20x: 1.4 lbs | 0.64kg

Working Environment

Indoor

Humidity Range

10% ~ 80%

Operating Temperature

14°F ~ 104°F (-10°C ~ 40°C)

Storage Temperature

-40°F ~ 140°F (-40 ~ 60°C)

Connections

HD Video Output

1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI® HX2 enabled
1x HDMI: Version 2.0
1x USB: 3.0 Type C
1x 3G-SDI: BNC type, 300mVP-p, 75Ω, Along to SMPTE 424M

Audio Interface

1x 3.5mm Line level input
1x 3.5mm Line level output

Video Formats

USB:


  • YUY2: Max resolution 1920x1080p @ 30fps
  • MJPEG: Max resolution 3840x2160p @ 30fps
  • H.264 AVC & SVC: Max resolution 3840x2160p @ 30fps


RTSP/NDI® HX2 only:

  • H.265: Max resolution 3840x2160p @ 60fps

Compression Standards

H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI® HX2 only)

UVC Version Supported

UVC 1.1 ~ 1.5

Supported Protocols

TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI® HX2, SRT, Multicast, etc.

IR

4x IR Addresses, Max distance 30ft / 9m

Power Supply

JEITA type (DC IN 12V) / PoE+ (802.3at)

Current Consumption

Max 2A

Power Consumption

Max 18W
