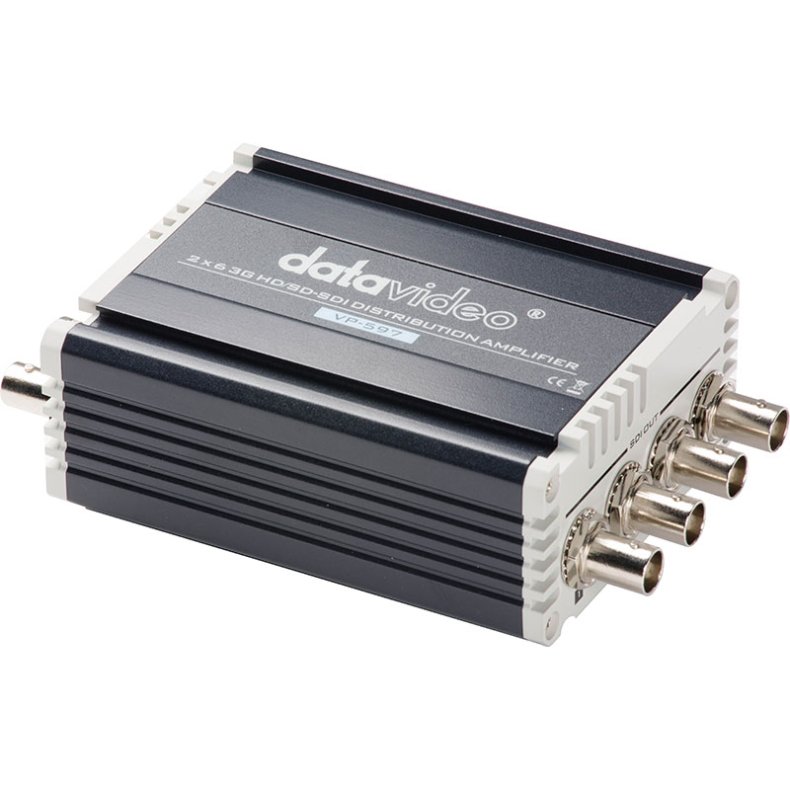

Datavideo VP-597 2x6 3G HD/SD-SDI Distribution Amplifier
1 Input/ 6 Outputs 3G HD/SD SDI Distribution Amplifier
Two input video source selection can be controlled by A/B switch or GPI Remote
2 x 3G/HD/SD-SDI inputs and 6 x 3G/HD/SD-SDI distribution outputs
Supports 3G/HD/SD SDI video with embedded Audio and re-clock design for long distance transmission.
Supports embedded audio SDI
VP-597 is ideal for simple A/B source switching to multiple HD displays or it can be used as a backup 3G/HD/SD SDI input sources switcher for live events.
Two input video can be controlled by A/B switch or GPI remote
Datavideo VP-597 is a six output SDI distribution amplifier with A/B inputs switching control (non-locked)
Specifications
| VP-597 2x6 3G HD/SD-SDI Distribution Amplifier | |
|---|---|
| Video Input/Output |
Input: 2 x BNC |
| Video Format |
1080p 60/59.94/50/29.97/23.98 |
| Audio Format |
Support SDI embedded audio |
| Power |
12V / 2.8W |
| Dimension (LxWxH) |
127 x 85 x 45 mm |
| Weight |
0.5 kg |
| Operating Temp. Range |
0~40 °C |
| What's in the Box |
1 x VP-597 product |
| Titel | Sorte | Größe | Herunterladen |
|---|---|---|---|
| VP-597-Spec-Sheet.pdf | 268.39KB | Herunterladen |
